Installation Procedure

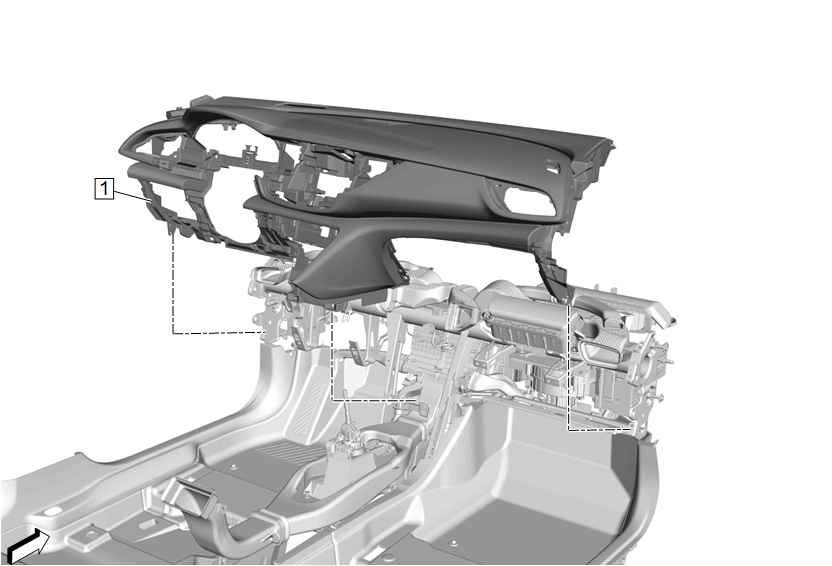

  1. GM4692982Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, load the instrument panel (1) to the instrument panel tie bar to the locator pins.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument panel (1).

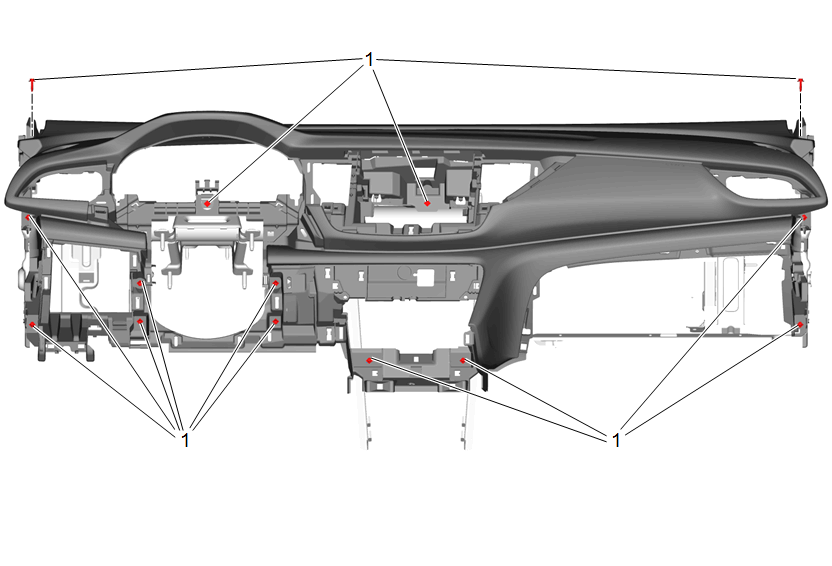

  3. GM4731644Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Instrument Panel Bolt (1) - Install and tighten [14x] 2.5 N.m (22 lb in)

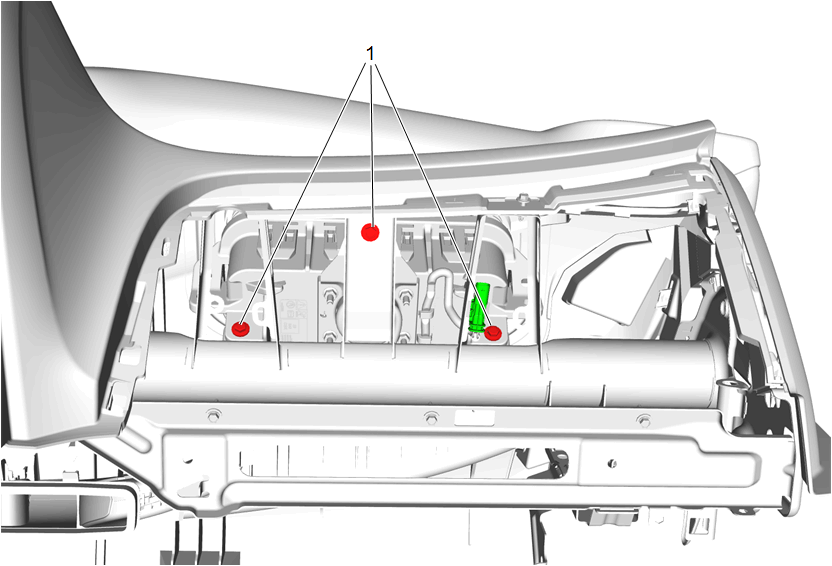

  4. GM4731521Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)

  5. Connect the electrical connector.

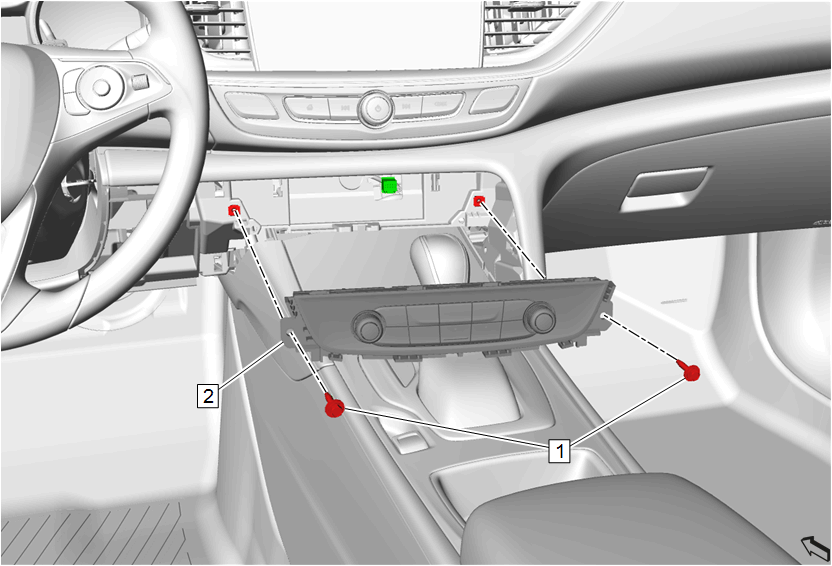

  6. GM4629245Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement

  7. GM4194489Courtesy of GENERAL MOTORS COMPANY

    Steering Column Nut (1) - Install - Steering Column Replacement

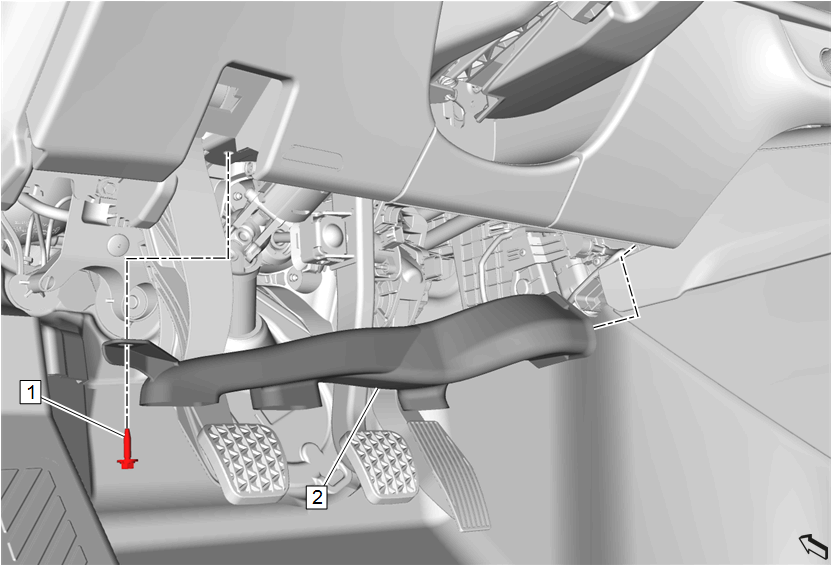

  8. GM4624874Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

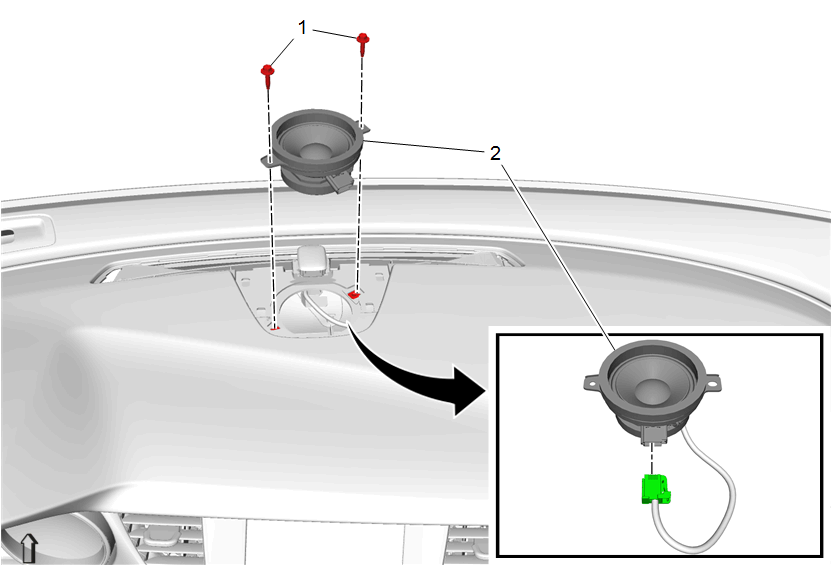

  9. GM4620664Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker (2) - Install - Radio Front Center Speaker Replacement

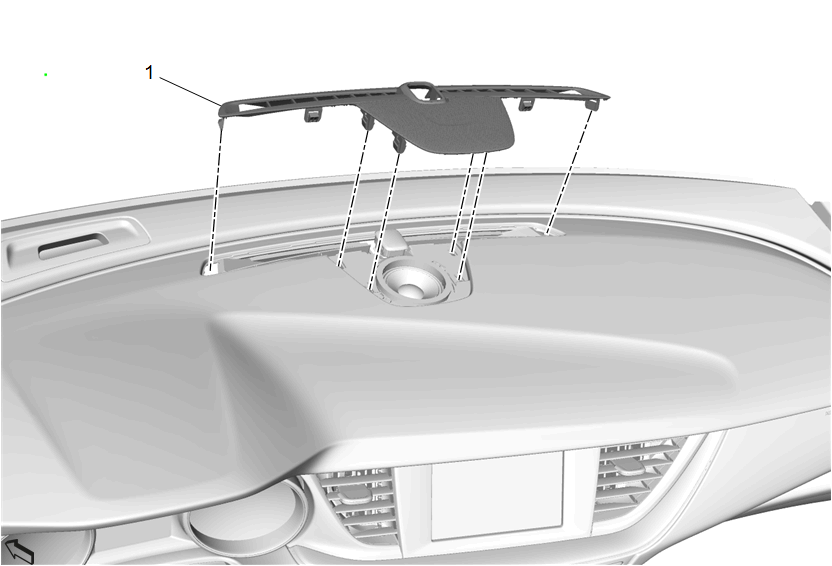

  10. GM4620658Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Grille (1) - Install - Radio Front Speaker Grille Replacement

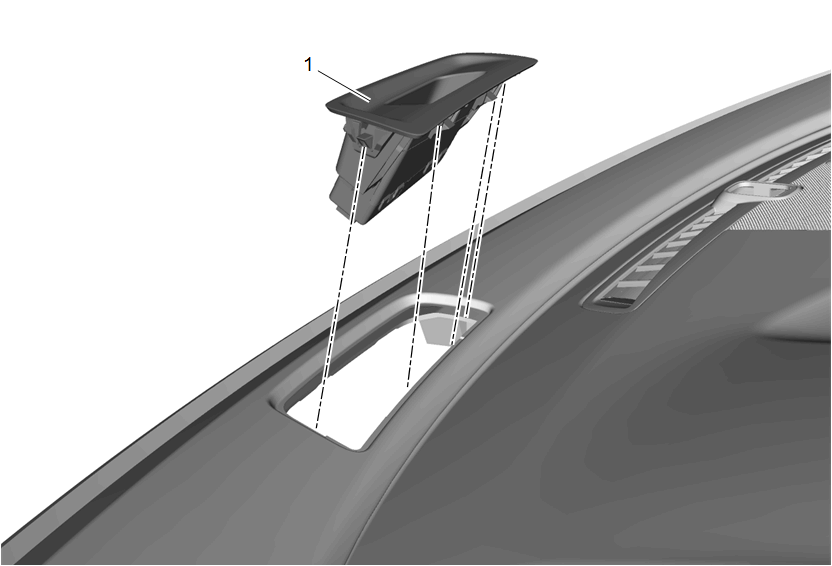

  11. GM4620635Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Forward Collision Alert Display Bezel (1) - Install - Forward Collision Alert Display Bezel Replacement

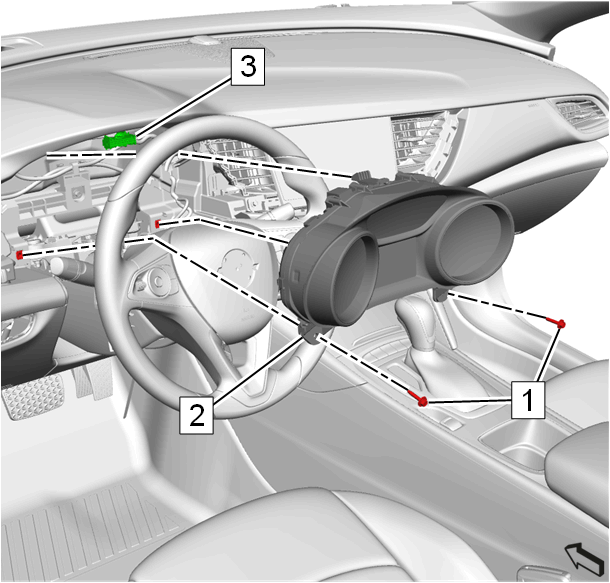

  12. GM4629278Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

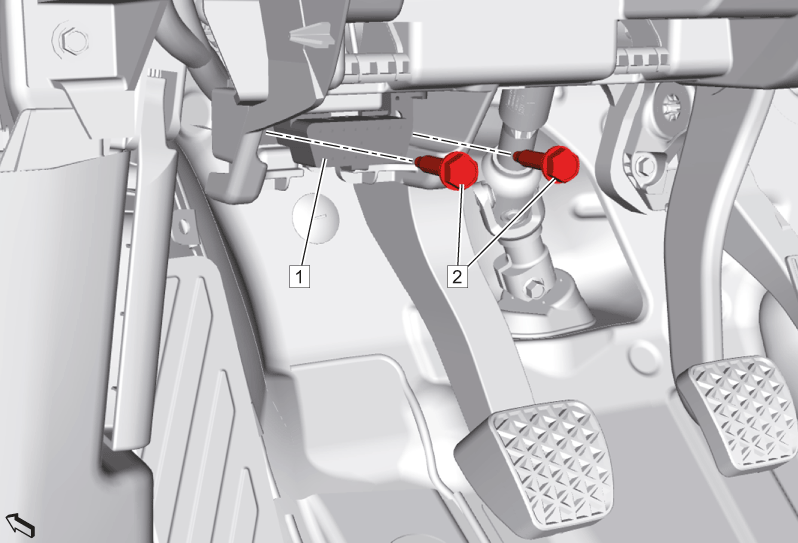

  13. GM4589369Courtesy of GENERAL MOTORS COMPANY

    Data Link Connector (1) - Install

  14. Data Link Connector Bolt (2) - Install and tighten [2x] 2.5 N.m (22 lb in)

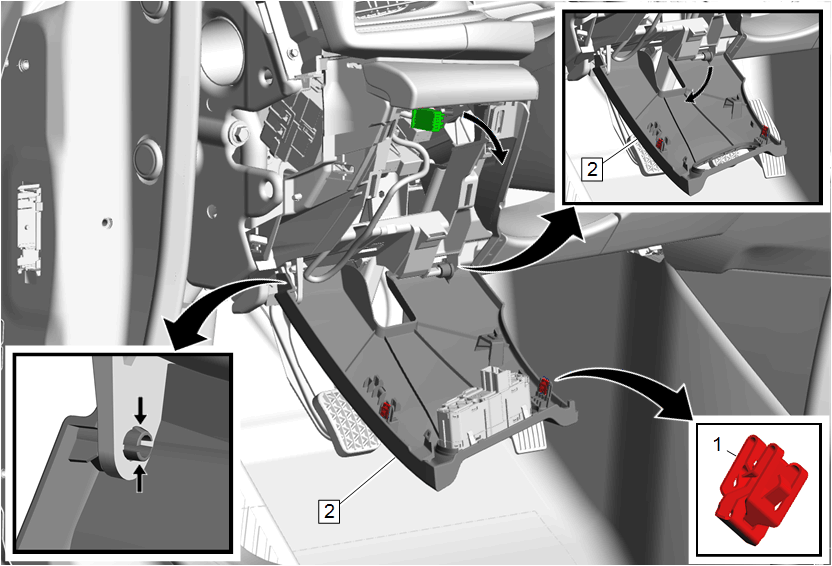

  15. GM4645622Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (2) - Install - Instrument Panel Fuse Block Access Hole Cover Replacement

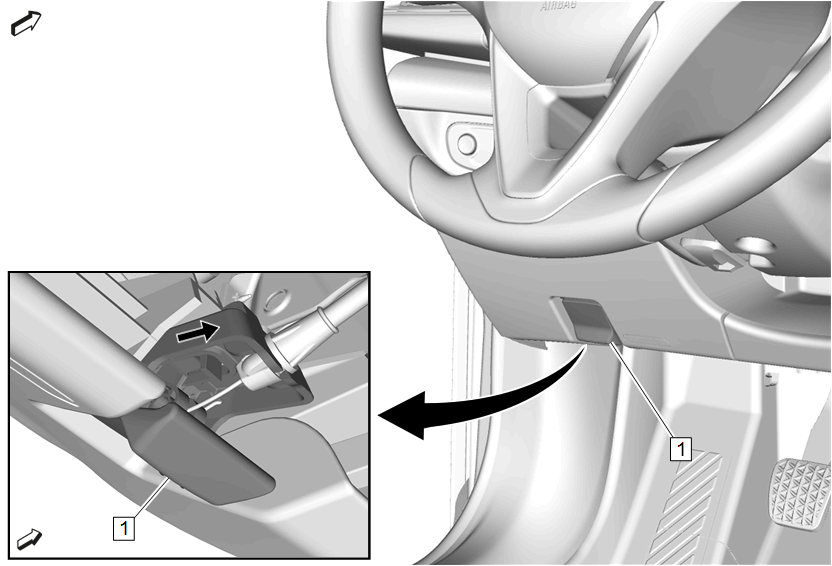

  16. GM4589297Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (1) - Install - Hood Primary Latch Release Cable Replacement

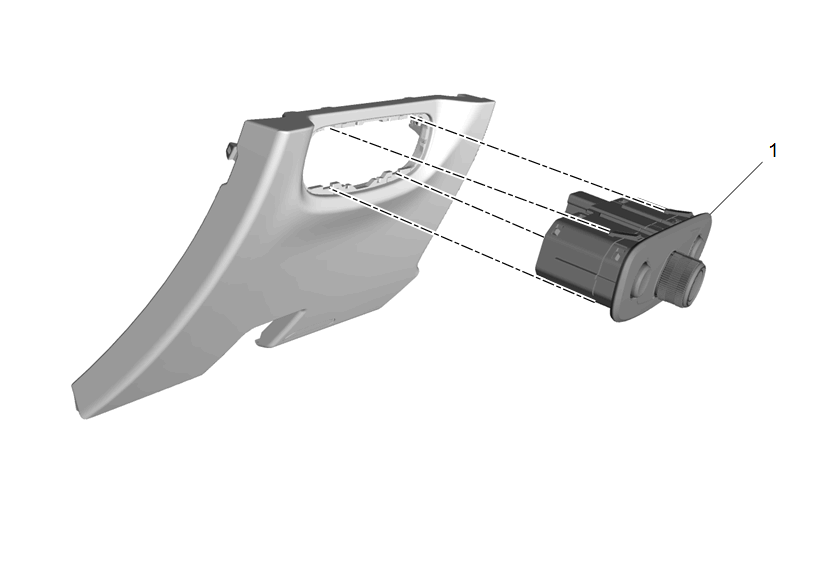

  17. GM4605407Courtesy of GENERAL MOTORS COMPANY

    Headlamp Switch (1) - Install - Headlamp Switch Replacement

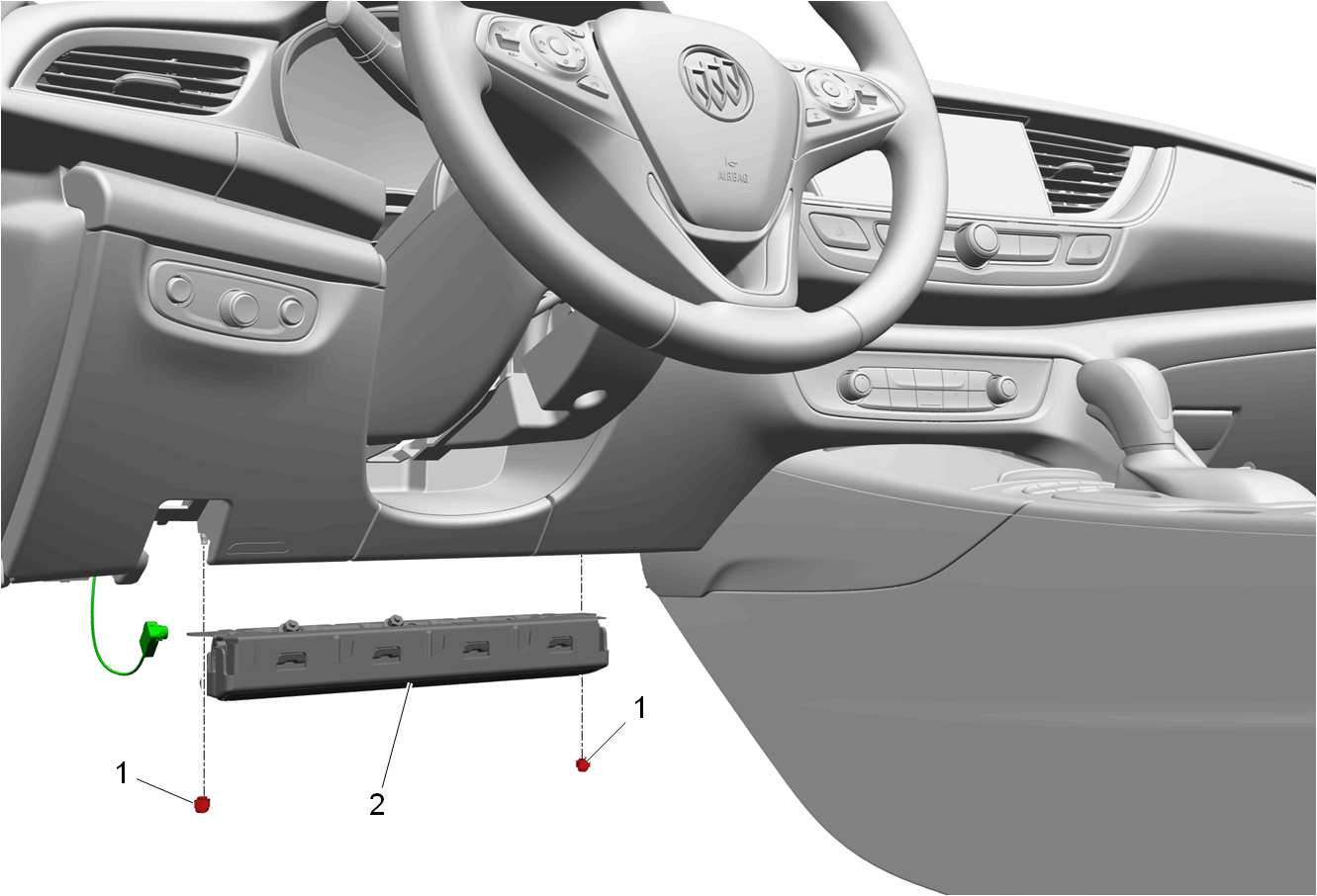

  18. GM5064747Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side

  19. GM4645623Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (2) - Install - Instrument Panel Knee Bolster Replacement

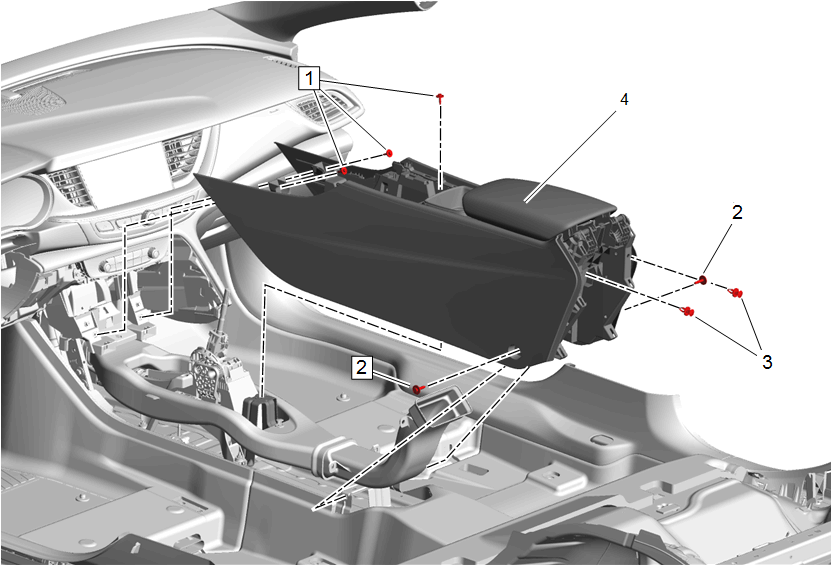

  20. GM4645629Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (4) - Install - Front Floor Console Replacement

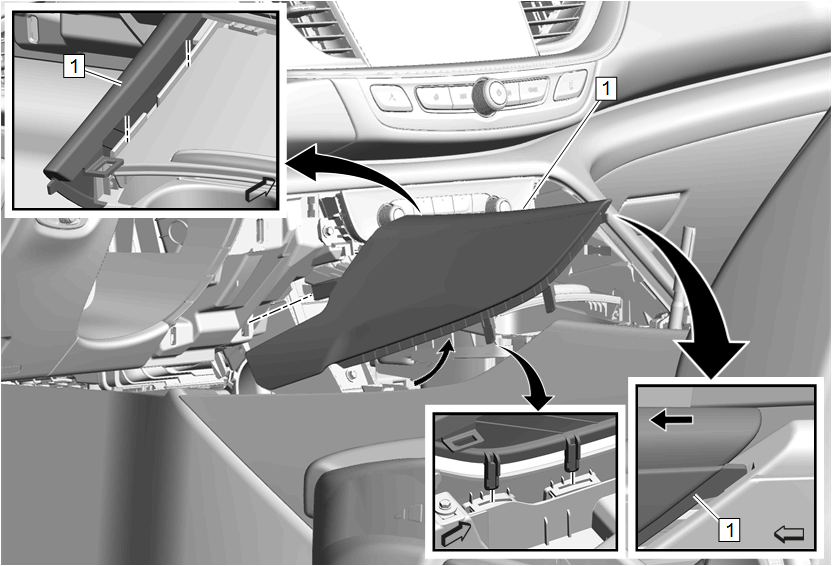

  21. GM4645625Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement

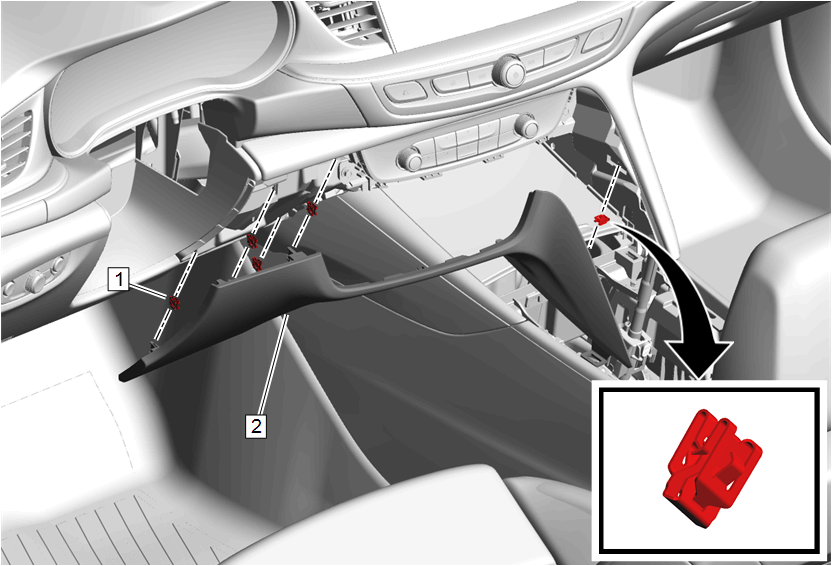

  22. GM4645632Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (2) - Install - Instrument Panel Lower Trim Panel Replacement

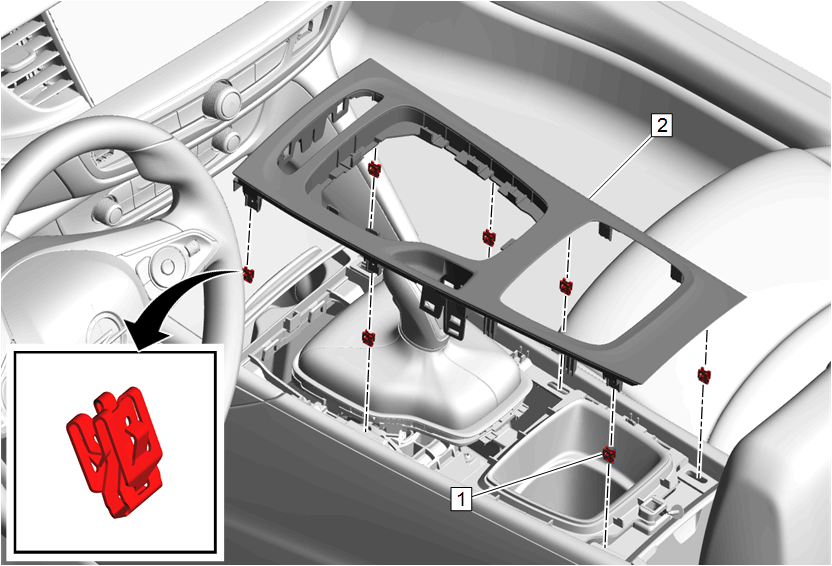

  23. GM4645631Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement

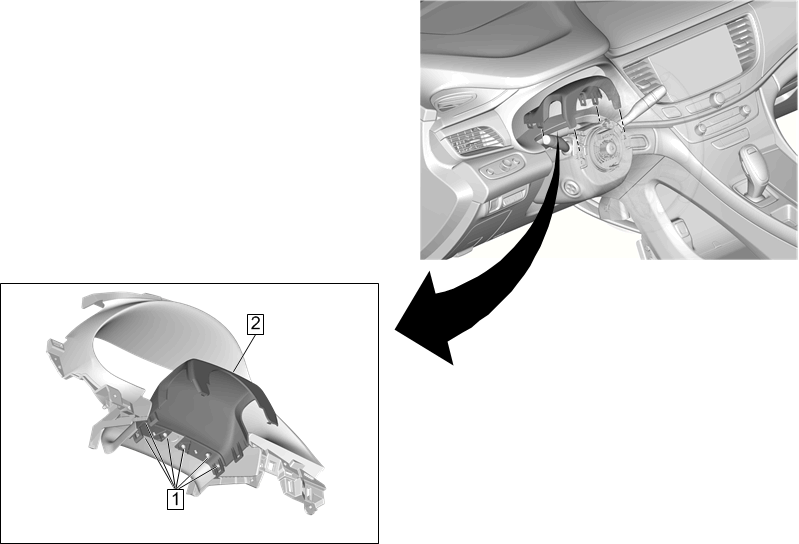

  24. GM4422560Courtesy of GENERAL MOTORS COMPANY

    Steering Column Upper Trim Cover (2) - Install - Steering Column Upper Trim Cover Replacement

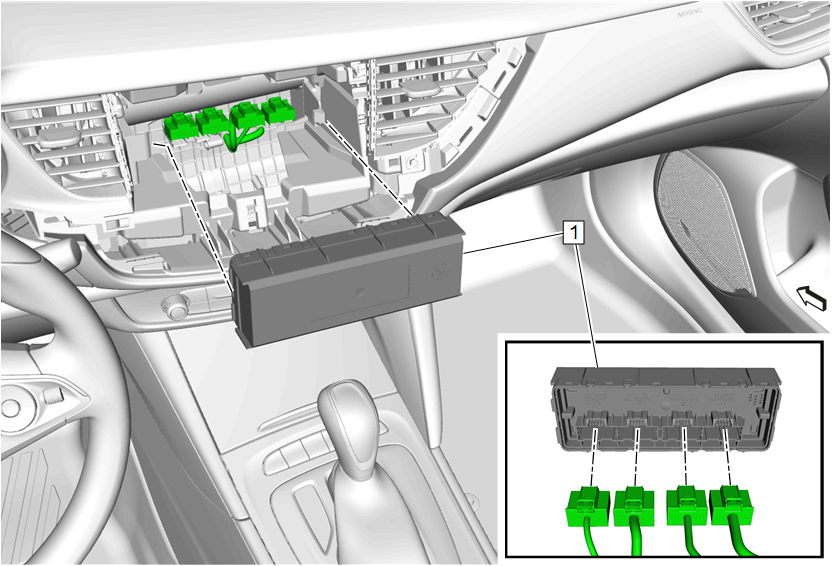

  25. GM4629247Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Remote Control (1) - Install - Heater and Air Conditioning Remote Control Replacement

  26. GM4620668Courtesy of GENERAL MOTORS COMPANY

    Radio Control Assembly (3) - Install - Radio Control Assembly Replacement (IOR) , or Radio Control Assembly Replacement (IOS, IOT)

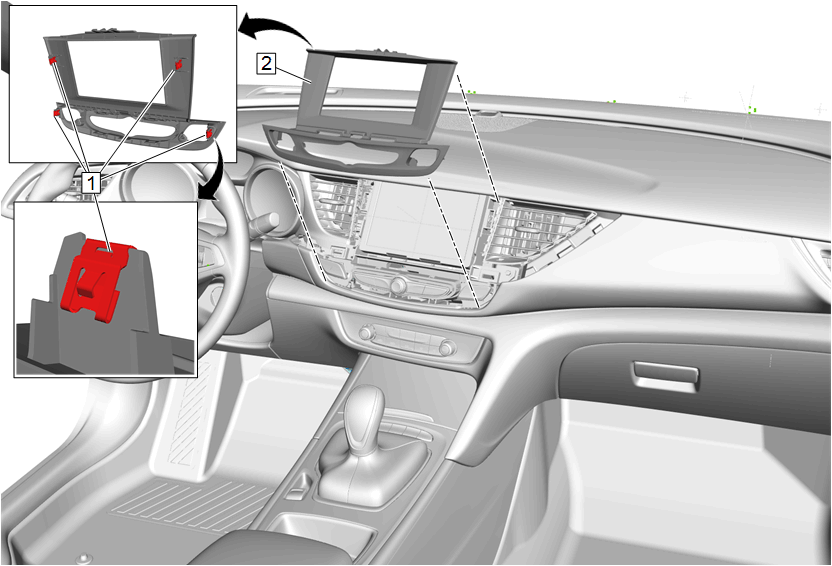

  27. GM4692952Courtesy of GENERAL MOTORS COMPANY

    { If equipped } Instrument Panel Trim Plate (2) - Install - Instrument Panel Trim Plate Replacement

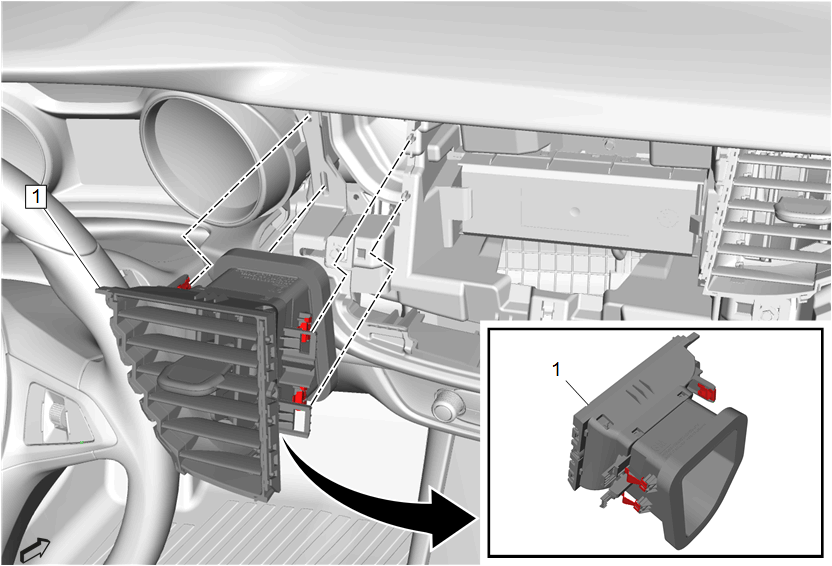

  28. GM4639536Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Left Side (1) - Install - Instrument Panel Center Air Outlet Replacement - Left Side

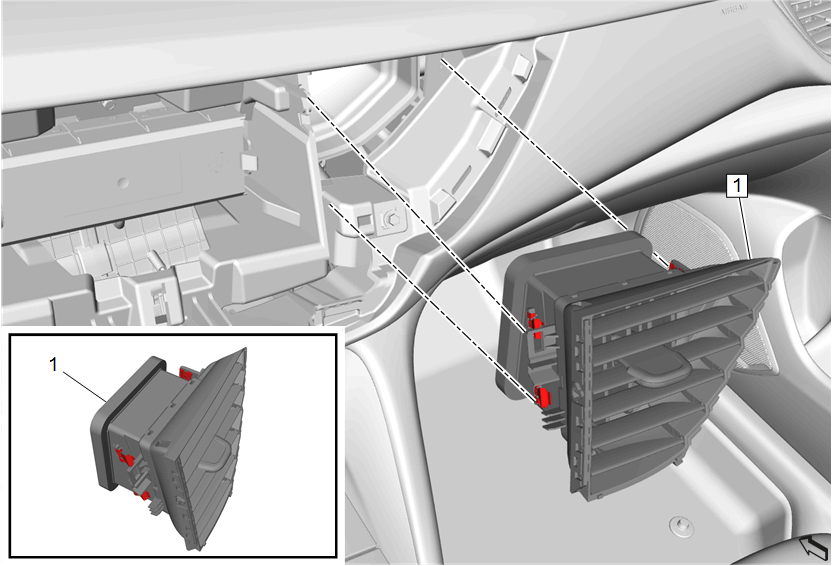

  29. GM4639539Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet - Right Side (1) - Install - Instrument Panel Center Air Outlet Replacement - Right Side

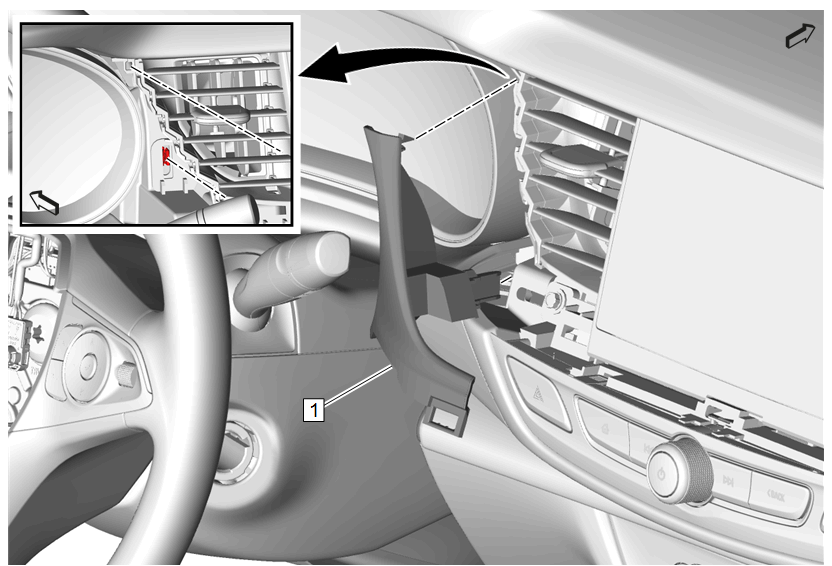

  30. GM4645624Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel center air outlet bezel (1). Instrument Panel Center Air Outlet Bezel Replacement

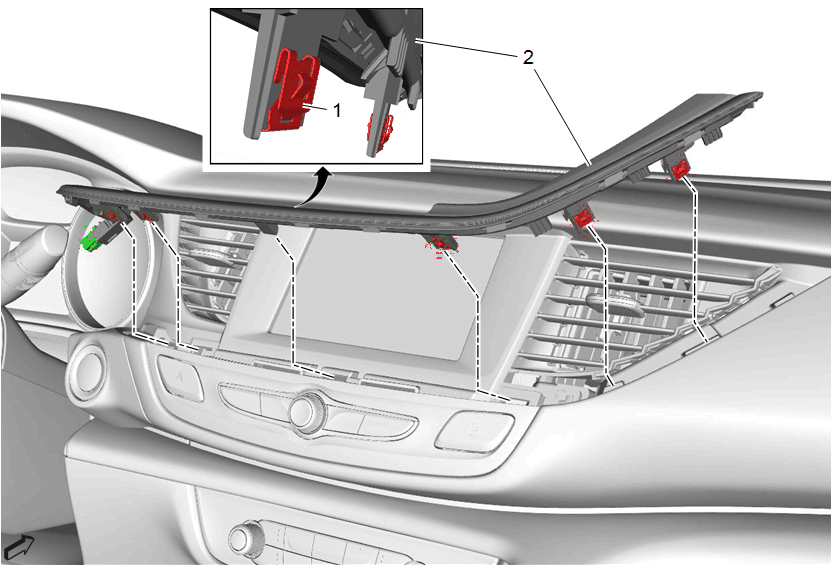

  31. GM4624446Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (2) - Install - Instrument Panel Center Trim Plate Applique Replacement

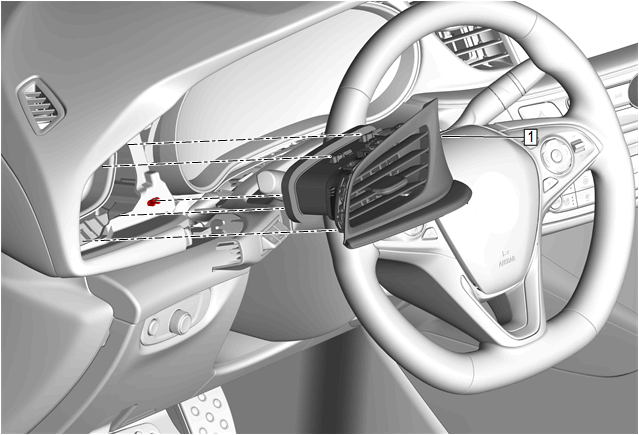

  32. GM4626760Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Left Side (1) - Install - Instrument Panel Outer Air Outlet Replacement - Left Side

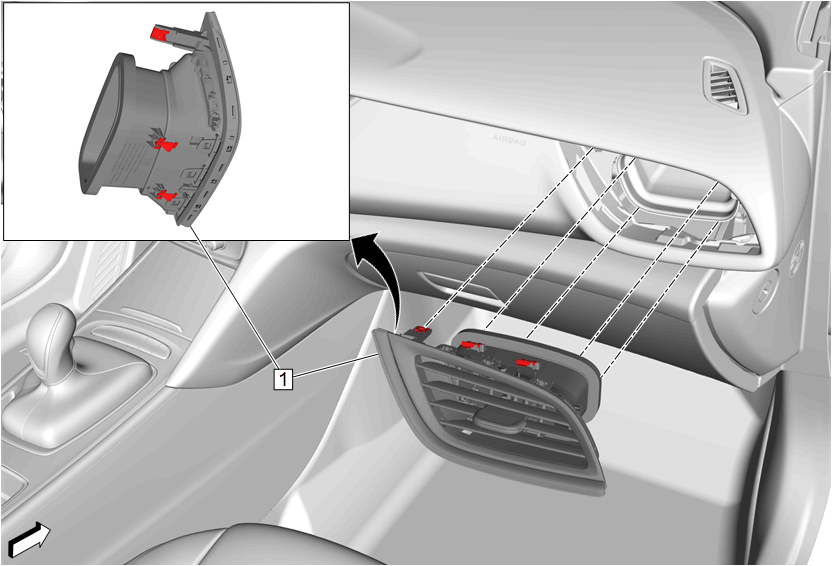

  33. GM4626761Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet - Right Side (1) - Install - Instrument Panel Outer Air Outlet Replacement - Right Side

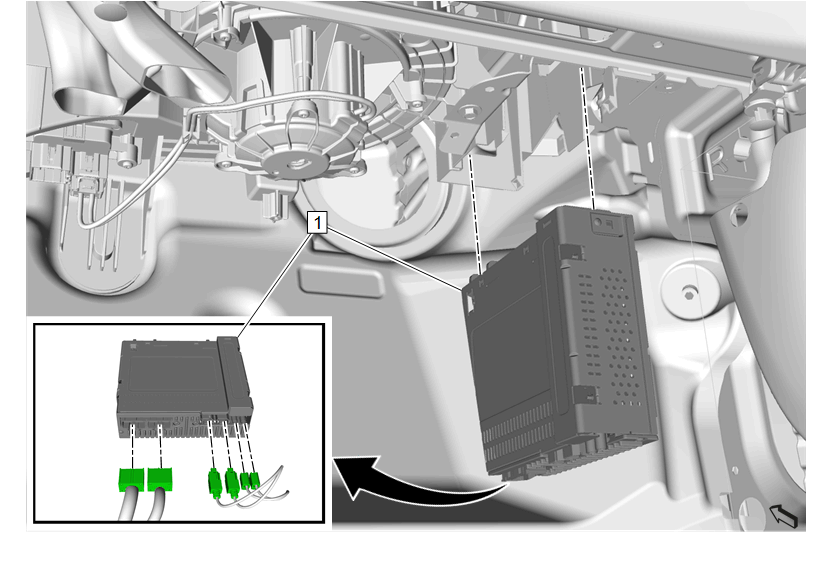

  34. GM4623267Courtesy of GENERAL MOTORS COMPANY

    Radio (1) - Install - Radio Replacement (IOR, IOS) , or Radio Replacement (IOT)

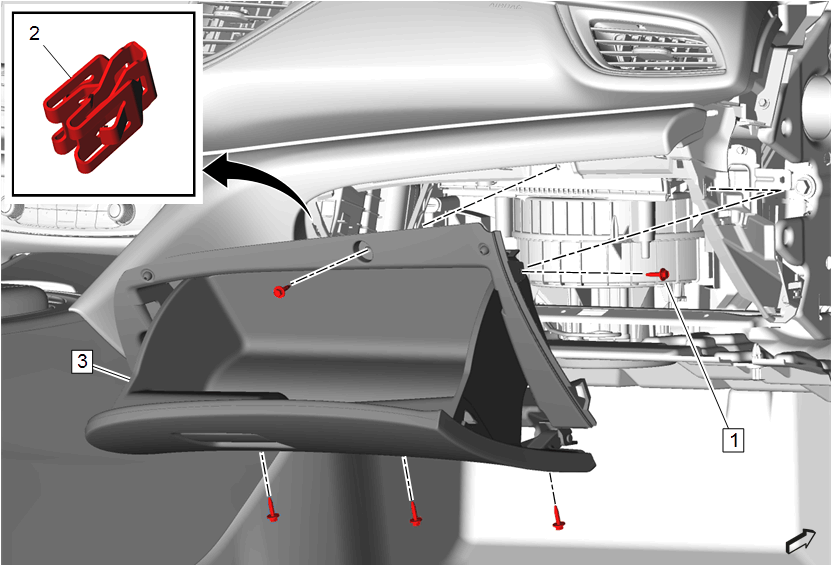

  35. GM4645626Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (3) - Install - Instrument Panel Compartment Replacement

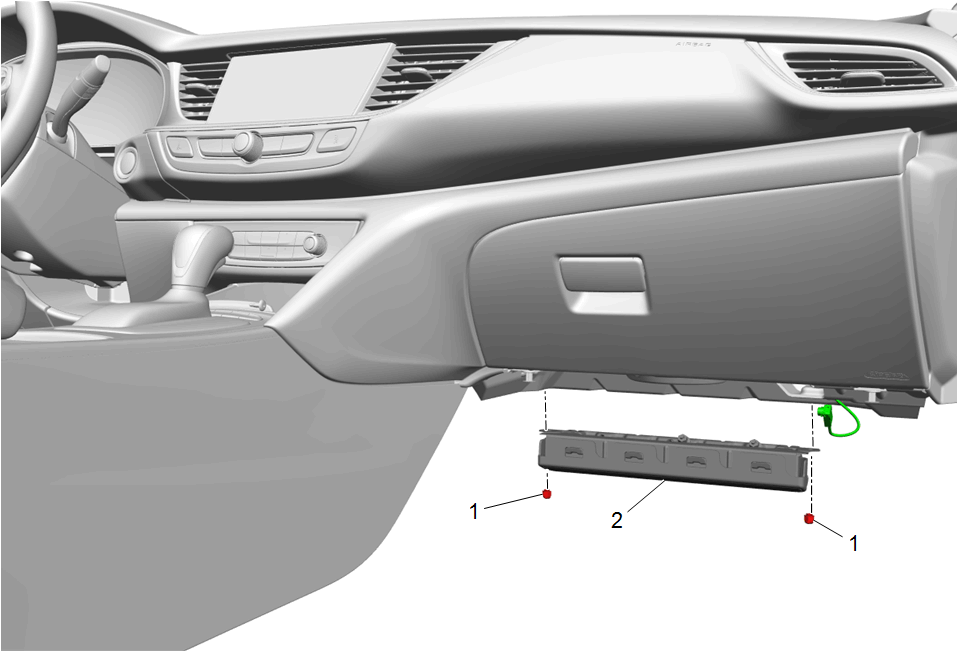

  36. GM5064750Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Passenger Side (2) - Install Instrument Panel Lower Airbag Replacement - Passenger Side

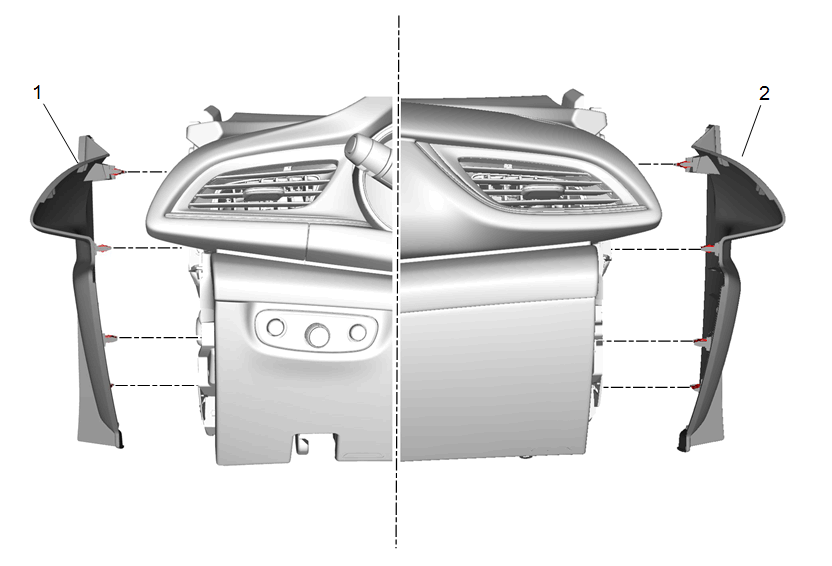

  37. GM4624448Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1, 2) - Install - Instrument Panel Outer Trim Cover Replacement

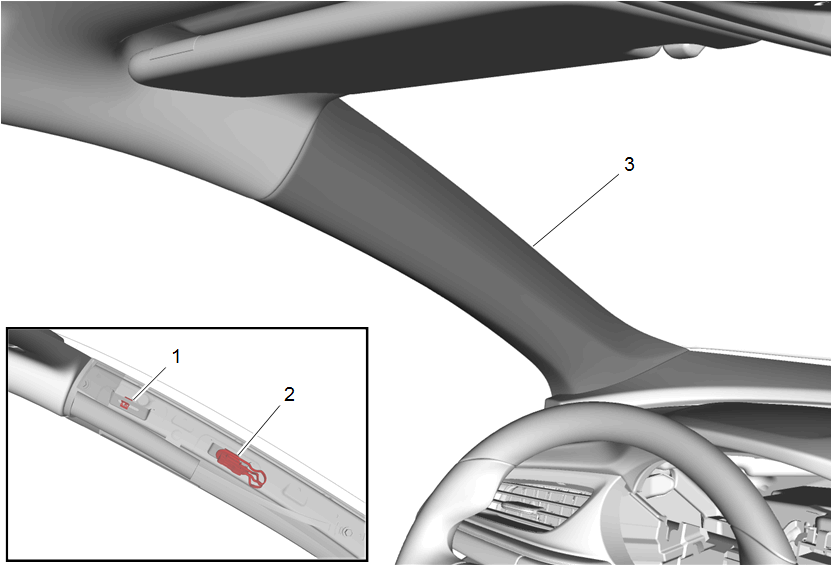

  38. GM4641115Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (3) - Install [2x] - Windshield Garnish Molding Replacement

  39. Enable the SIR System. SIR Disabling and Enabling
