Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Upper Intermediate Steering Shaft (3) @ Intermediate Steering Shaft - Disconnect - Upper Intermediate Steering Shaft Replacement
Upper Intermediate Steering Shaft (3) & Intermediate Steering Shaft Boot- Upper (1) - Position aside
Courtesy of GENERAL MOTORS COMPANY

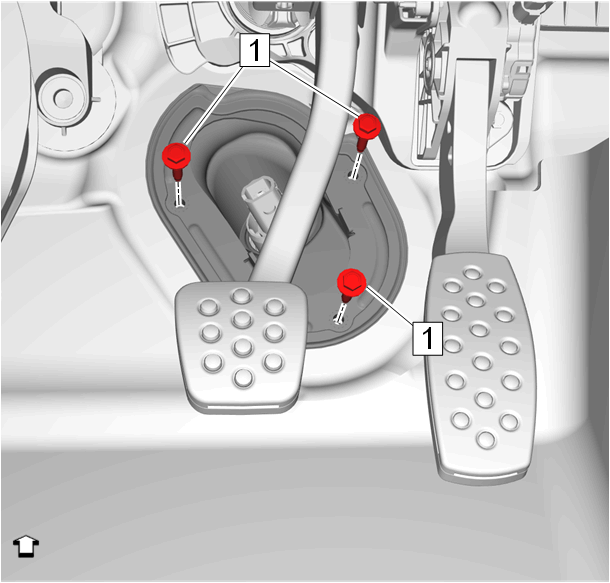

Intermediate Steering Shaft Boot Bolt- Inner (1) - Remove [3x]
Lift the lip of the intermediate steering shaft inner boot and release the boot from the intermediate steering shaft pass through.
Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft Boot- Inner (1) - Remove
