Active Safety Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

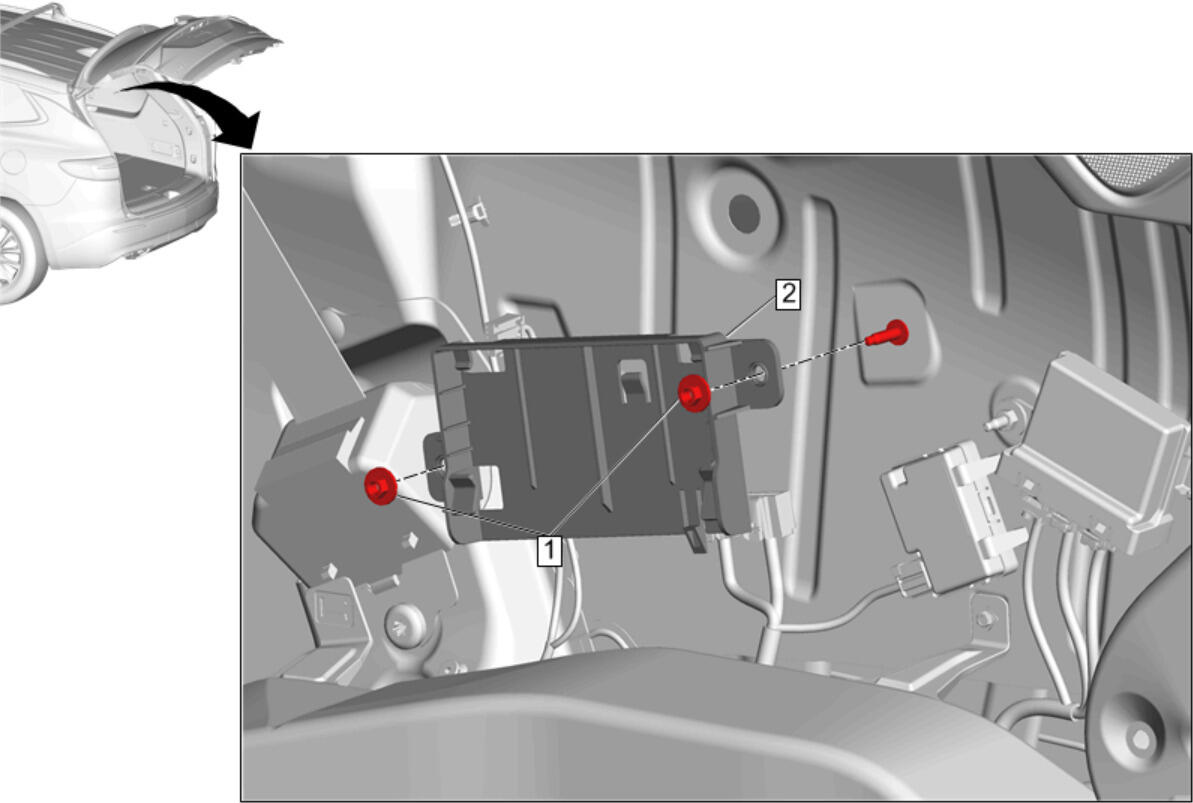

Callout	Component Name
Preliminary Procedure  Image Processing Module Replacement
1	Active Safety Control Module Bracket Nut [ 2x ] CAUTION: Fastener Caution Tighten  9 N.m (80 lb/in)
2	Active Safety Control Module Bracket
