Theft Deterrent Module Replacement

Courtesy of GENERAL MOTORS COMPANY

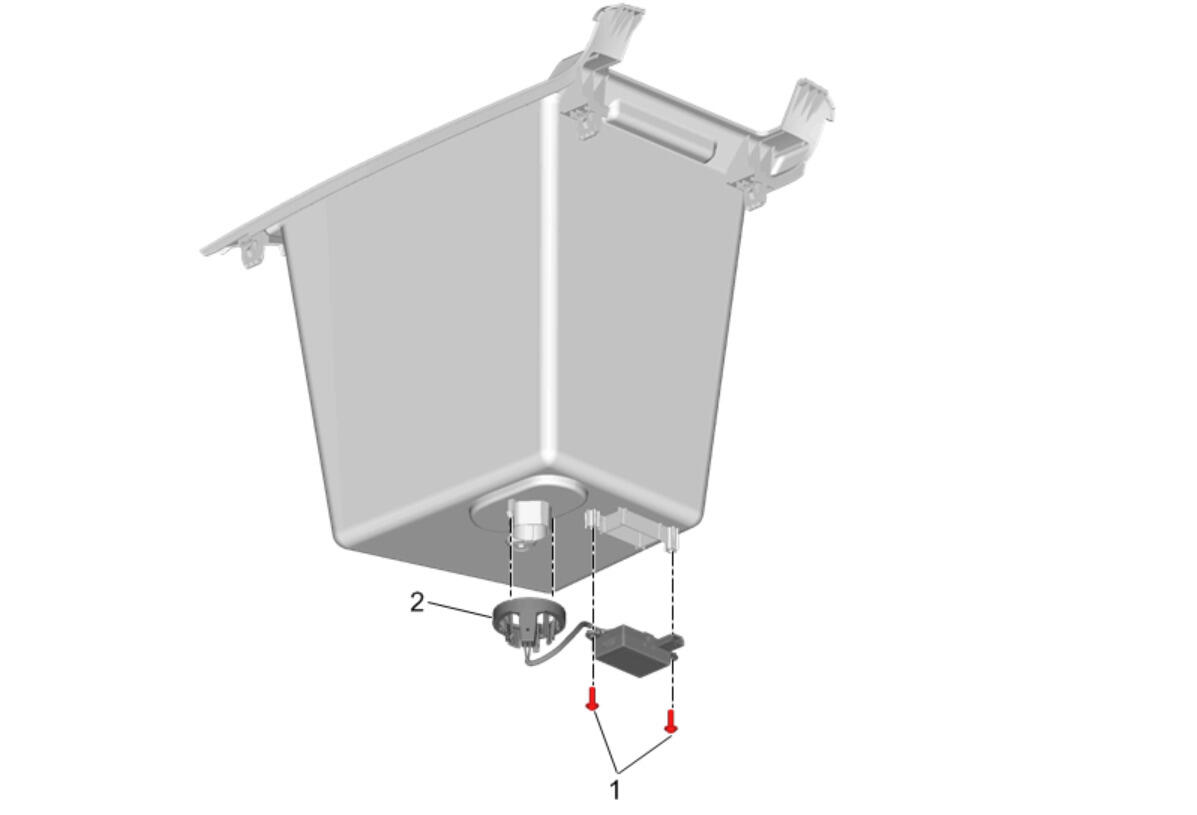

Callout	Component Name
Preliminary Procedure  Front Floor Console Compartment Replacement
1	Theft Deterrent Module Bolt [2x] CAUTION: Fastener Caution Tighten  1 N.m (9 lb/in)
2	Theft Deterrent Module Procedure  Release the retaining tabs.
