Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

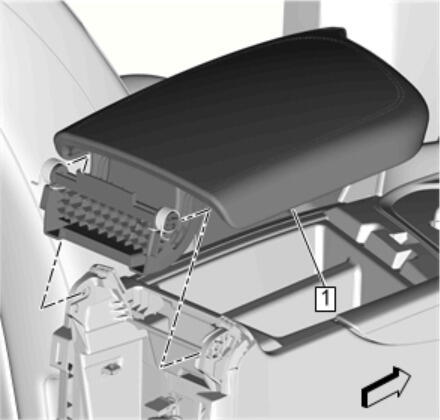

Install the front floor console armrest (1) to the front floor console.
Courtesy of GENERAL MOTORS COMPANY

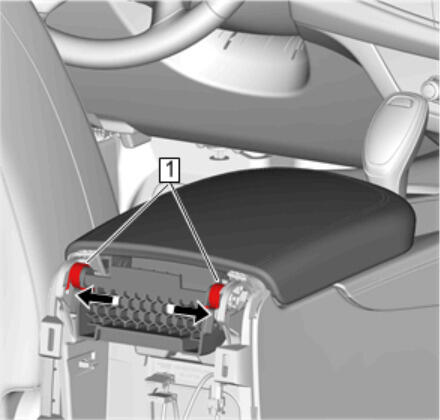

Attach the ends of the front floor console armrest hinge spring (1) to the front floor console.
Courtesy of GENERAL MOTORS COMPANY

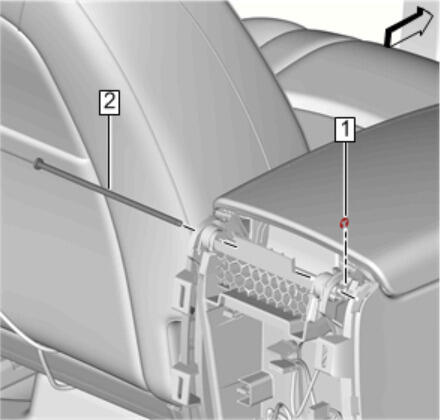

Install the front floor console compartment door hinge pin (2) to the armrest.
Install the front floor console compartment door hinge pin retainer (1) to the hinge pin.
Courtesy of GENERAL MOTORS COMPANY

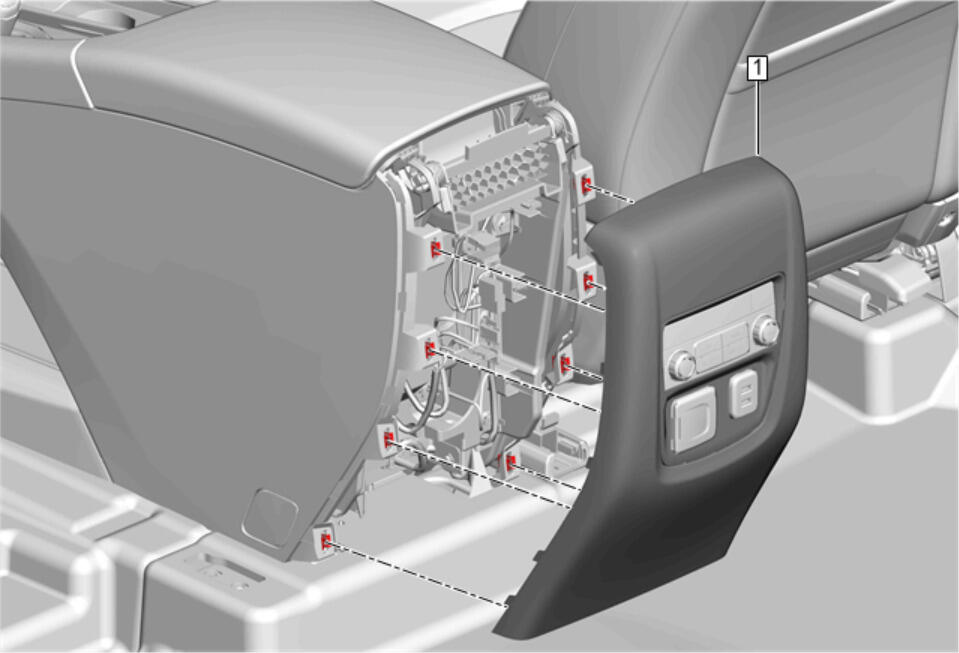

Front Floor Console Rear Trim Panel (1) - Install Front Floor Console Rear Trim Panel Replacement
