Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the front floor console (1) into the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Slide the front floor console (1) back into position.
When installing the front floor console take care in seating the cooling duct.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

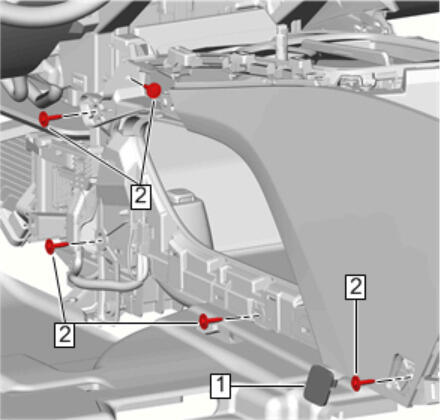

Front Floor Console Bolt @ Front Floor Console Bracket (2) - Install and tighten [ 5x ] 9 N.m (80 lb/in)
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

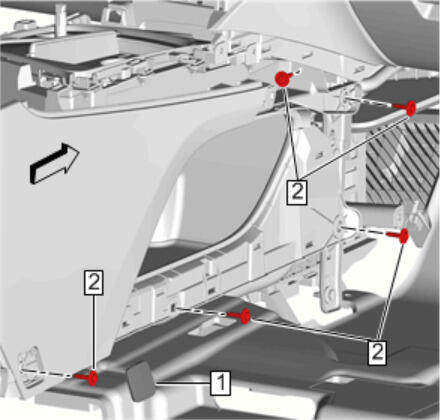

Front Floor Console Bolt @ Front Floor Console Bracket (2) - Install and tighten [ 5x ] 9 N.m (80 lb/in)
Front Floor Console Bolt Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

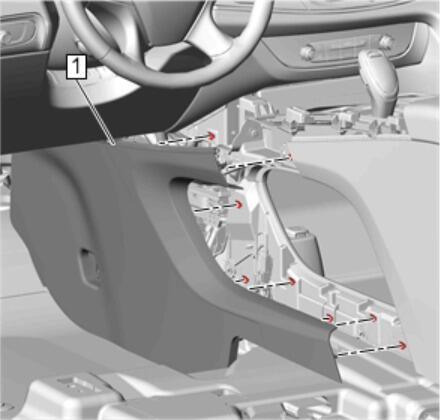

Front Floor Console Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb/in)
Courtesy of GENERAL MOTORS COMPANY

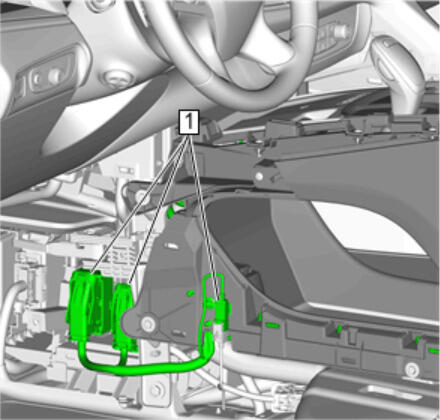

Connect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (2) - Install - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

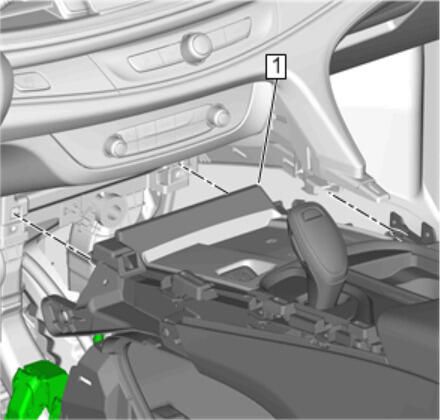

Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side
