Installation Procedure

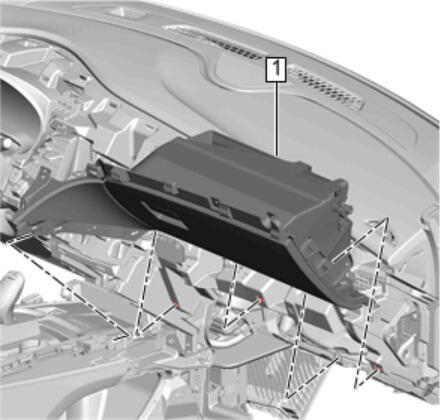

  1. GM4794599Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install

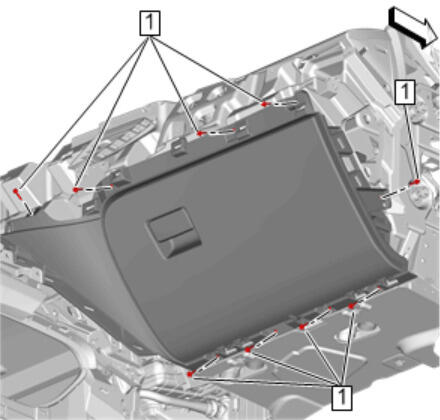

  2. GM4794597Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Compartment Bolt (1) - Install and tighten [ 9x ] 2.5 N.m (22 lb/in)

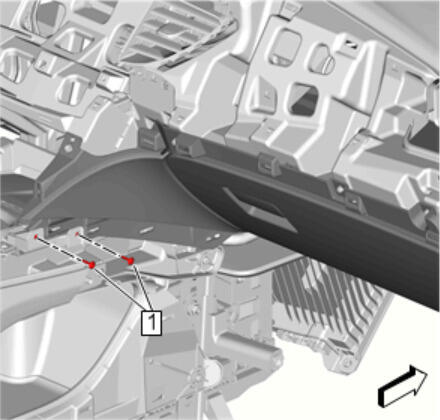

  3. GM4794592Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [ 2x ] 2.5 N.m (22 lb/in)

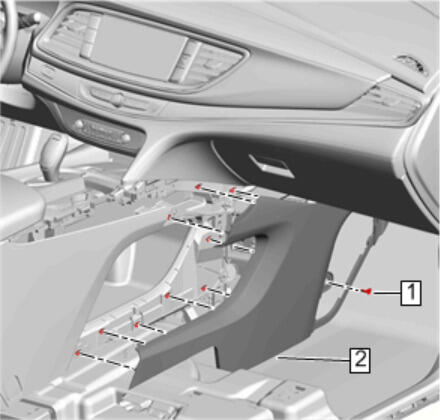

  4. GM4800359Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (2) - Install - Front Floor Console Extension Panel Replacement - Right Side

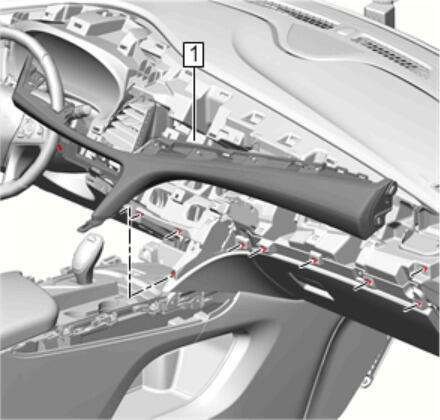

  5. GM4787680Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

  6. Heater and Air Conditioning User Interface Control - Install - Heater and Air Conditioning User Interface Control Replacement

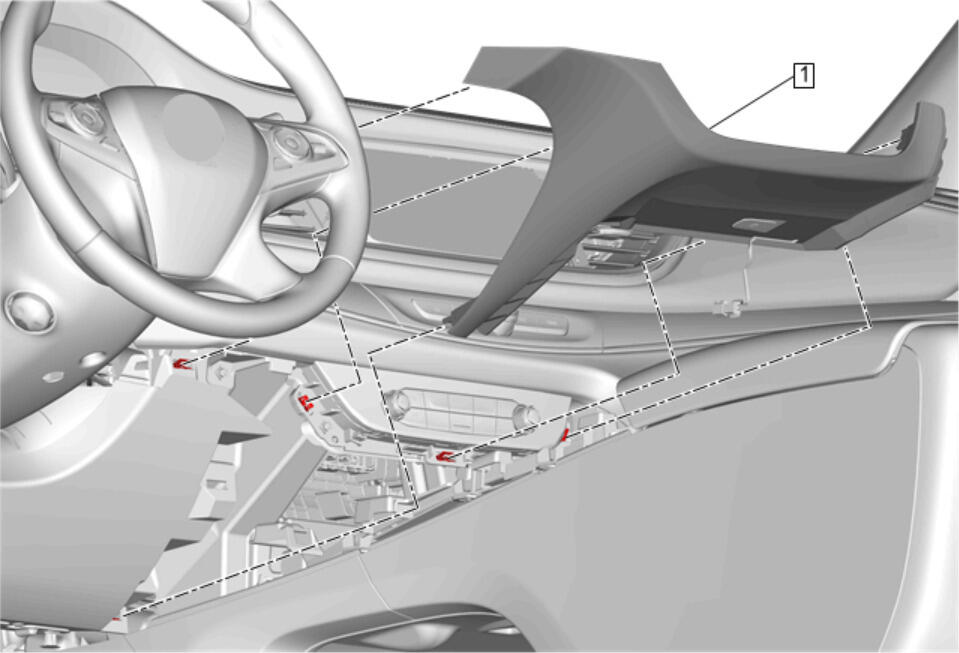

  7. GM4787138Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (1) - Install - Instrument Panel Lower Trim Panel Replacement

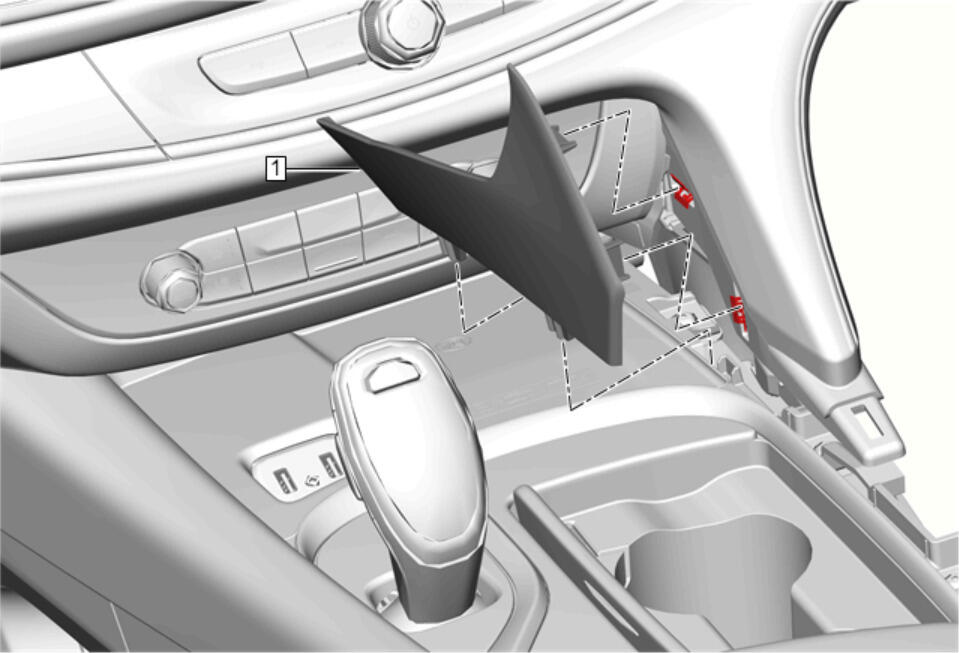

  8. GM4787131Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement

  9. GM4786350Courtesy of GENERAL MOTORS COMPANY

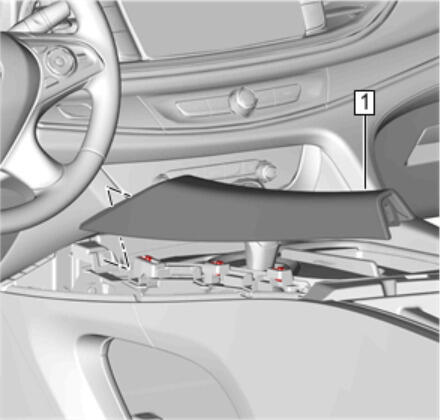

    Front Floor Console Applique - Left Side (1) - Install - Front Floor Console Applique Replacement - Left Side

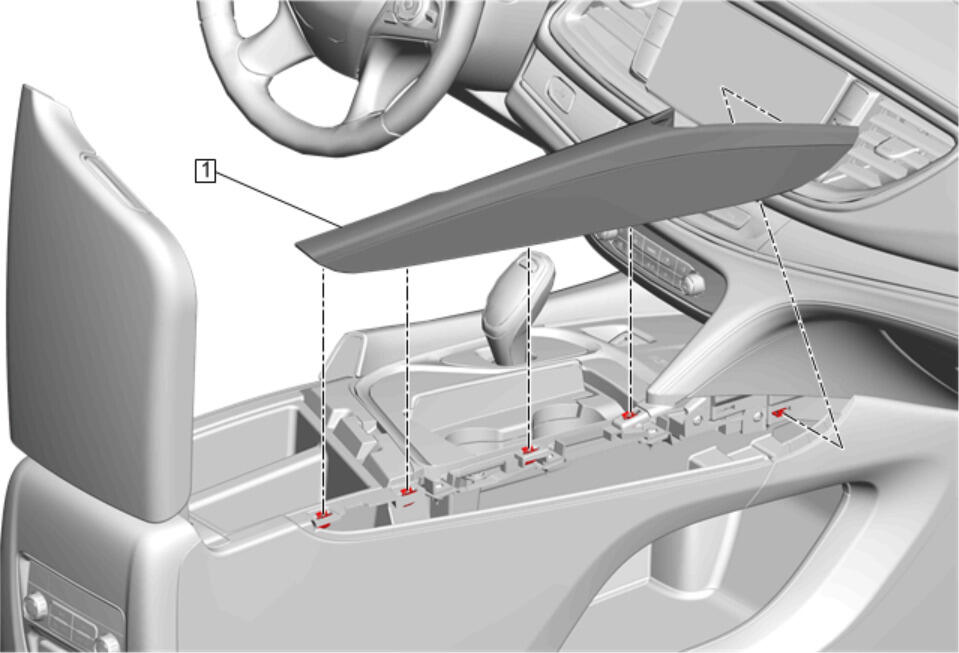

  10. GM4786974Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique - Right Side (1) - Install - Front Floor Console Applique Replacement - Right Side

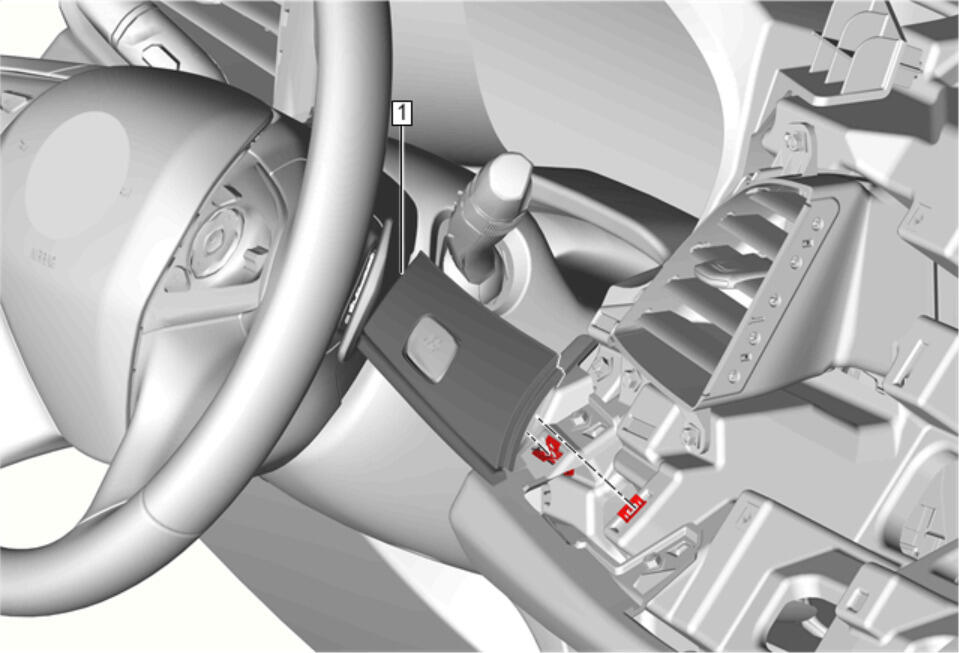

  11. GM4784215Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install - Instrument Panel Center Trim Plate Applique Replacement

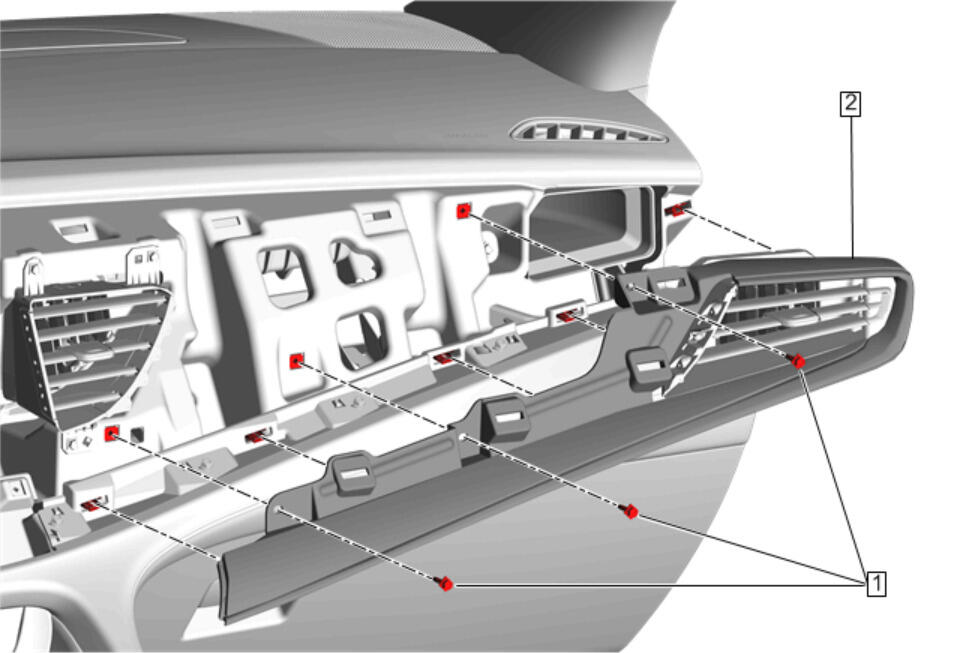

  12. GM4784111Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique - Right Side (2) - Install - Instrument Panel Trim Plate Applique Replacement - Right Side
