Installation Procedure

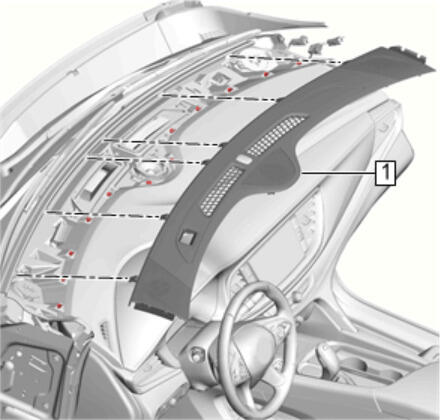

  1. GM4782388Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Extension (1) - Install

  2. Connect the electrical connector.

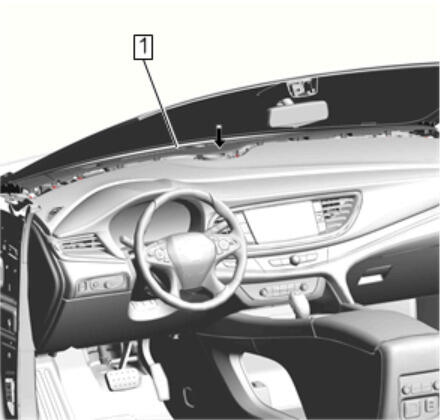

  3. GM4782390Courtesy of GENERAL MOTORS COMPANY

    Engage the retainers of the instrument panel extension (1) to the instrument panel.

  4. Windshield Garnish Molding - Install - Windshield Garnish Molding Replacement
