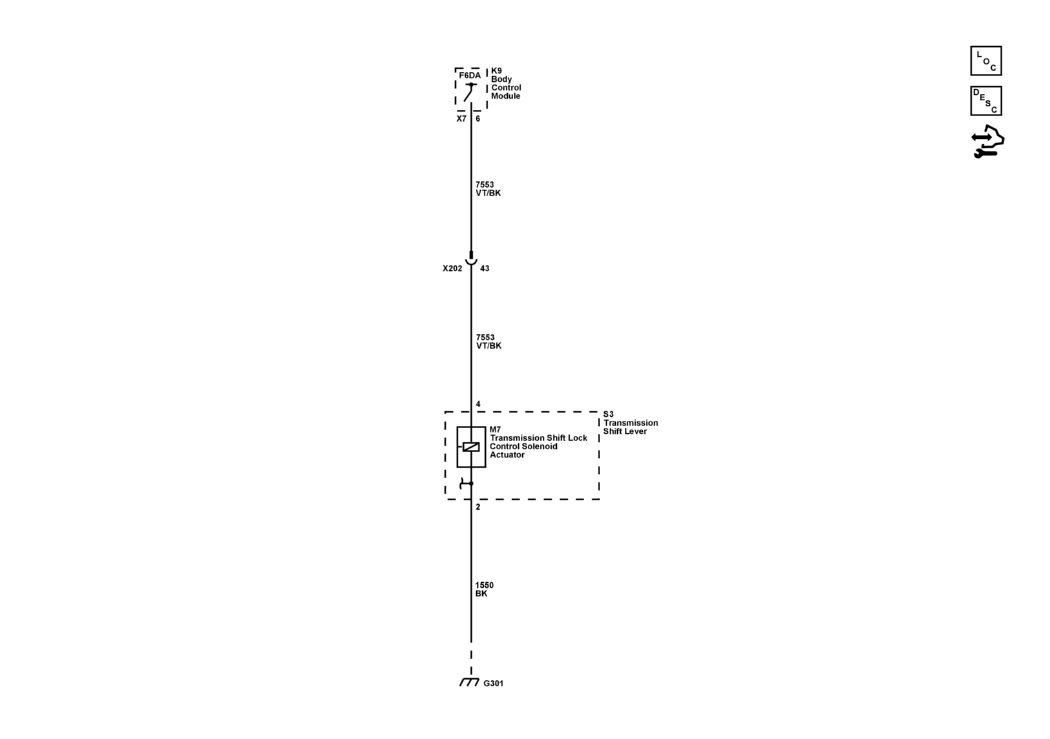

Shift Lock Control Schematics (Buick)
›
Shift Lock Control (Buick)
Shift Lock Control (Buick)
Courtesy of GENERAL MOTORS COMPANY
