Buick
›
2021
›
Encore Base, 1.4L Eng VIN M
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Shift Lock Control System
›
Schematic Wiring Diagrams
›

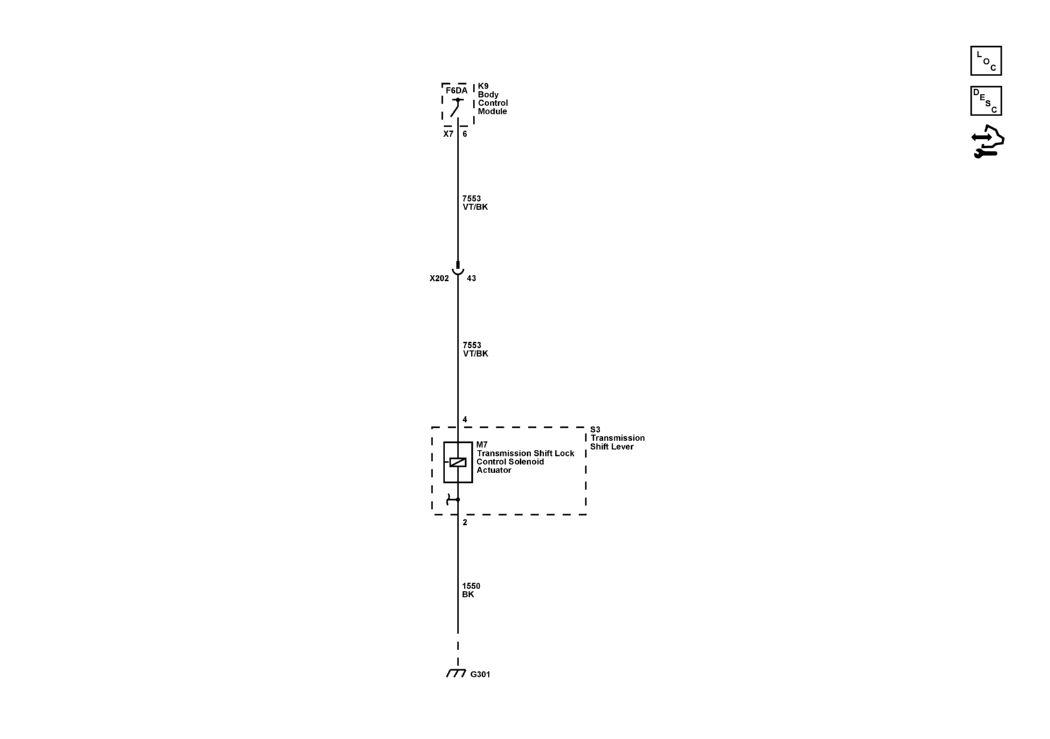

Shift Lock Control Schematics (Chevrolet)
›
Shift Lock Control (Chevrolet)
Shift Lock Control (Chevrolet)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
