Front Side Door Lock Cylinder Opening Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

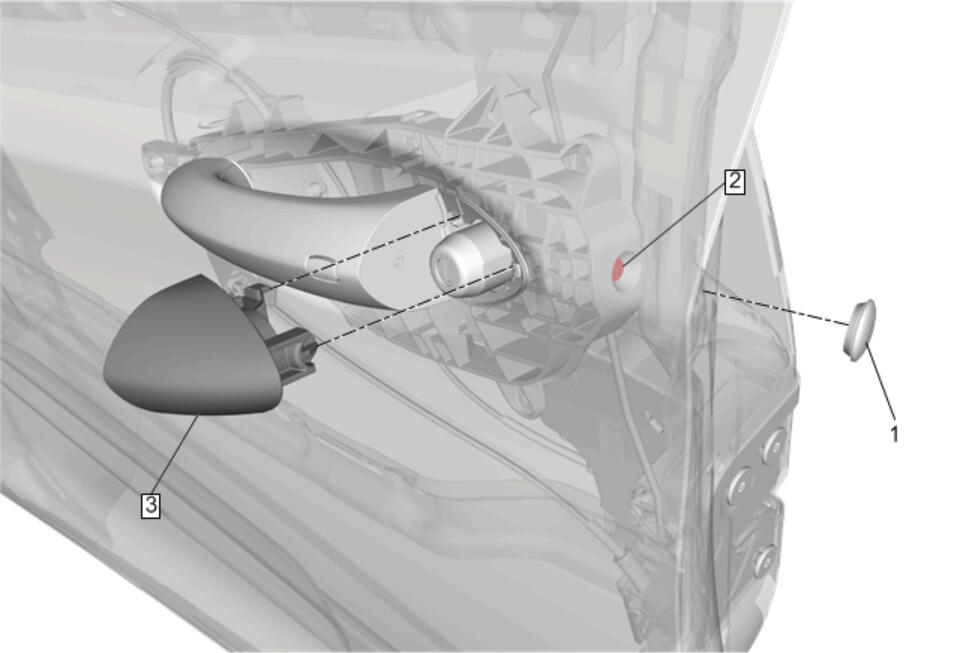

Callout	Component Name
1	Bolt Access Plug Procedure  Use a flat bladed plastic tool to remove.
2	Front Side Door Outside Handle Bolt CAUTION: Fastener Caution Tighten  4.7 N.m (42 lb in)
3	Front Side Door Lock Cylinder Opening Cover
