Installation Procedure

  1. GM5591595Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Weatherstrip (1) - Install

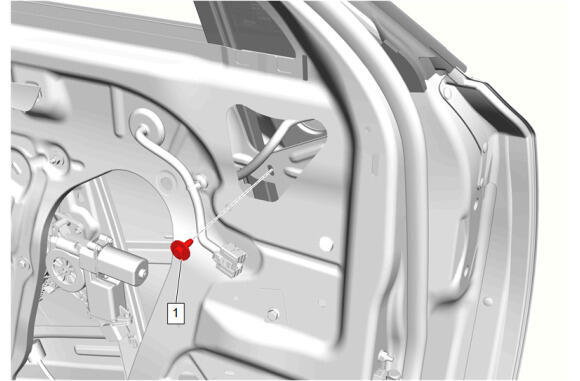

  2. GM5591594Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Front Side Door Window Weatherstrip Bolt (1) - Install and tighten 11 N.m (97 lb in)

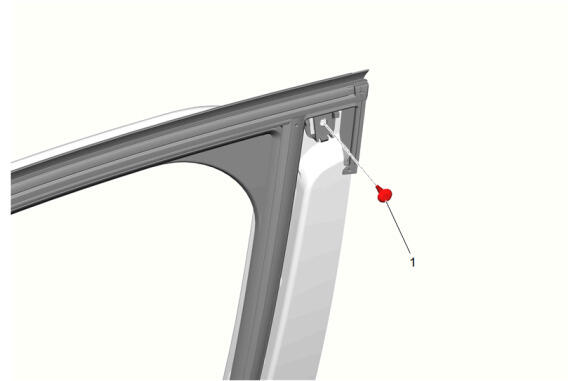

  3. GM5591593Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Weatherstrip Bolt (1) - Install and tighten 1.5 N.m (13 lb in)

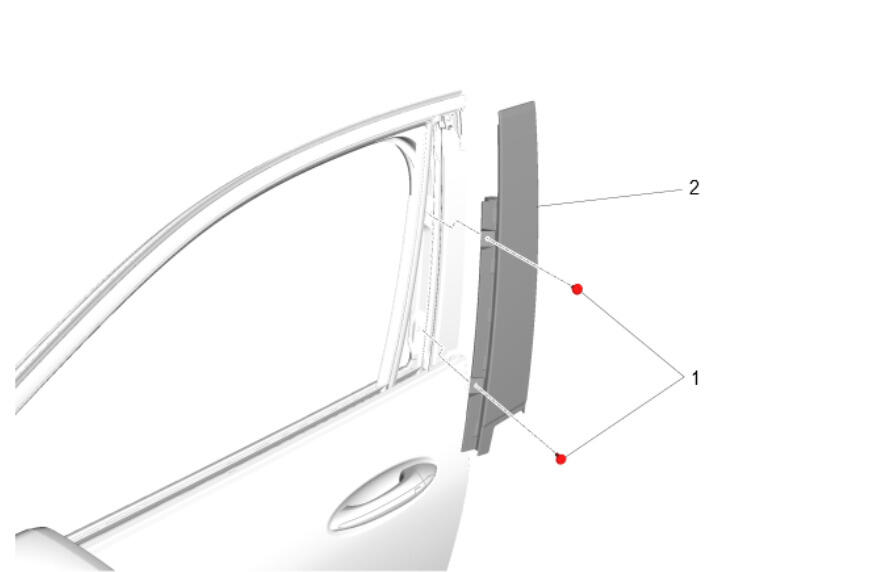

  4. GM5220209Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Frame Rear Applique (2) - Install - Front Side Door Window Frame Rear Applique Replacement

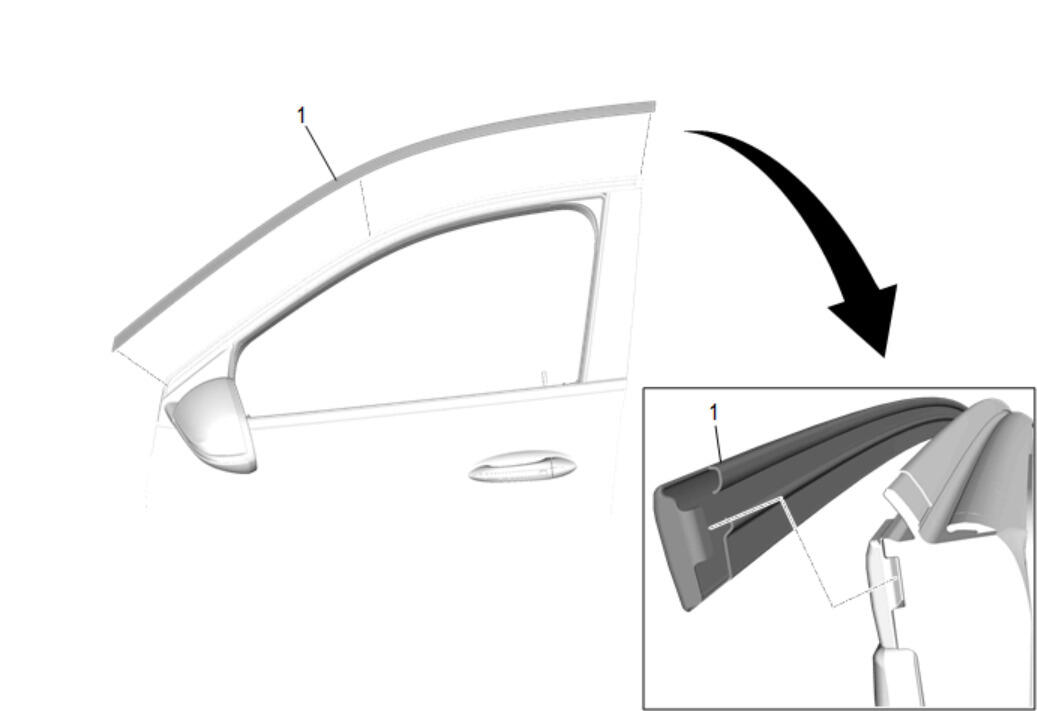

  5. GM5220249Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Upper Reveal Molding (1) - Install - Front Side Door Window Upper Reveal Molding Replacement

  6. GM5080726Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window (1) - Install - Front Side Door Window Replacement

  7. GM5591520Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Water Deflector (1) - Install - Front Side Door Water Deflector Replacement
