Home › Buick › 2021 › Envision Essence, AWD › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

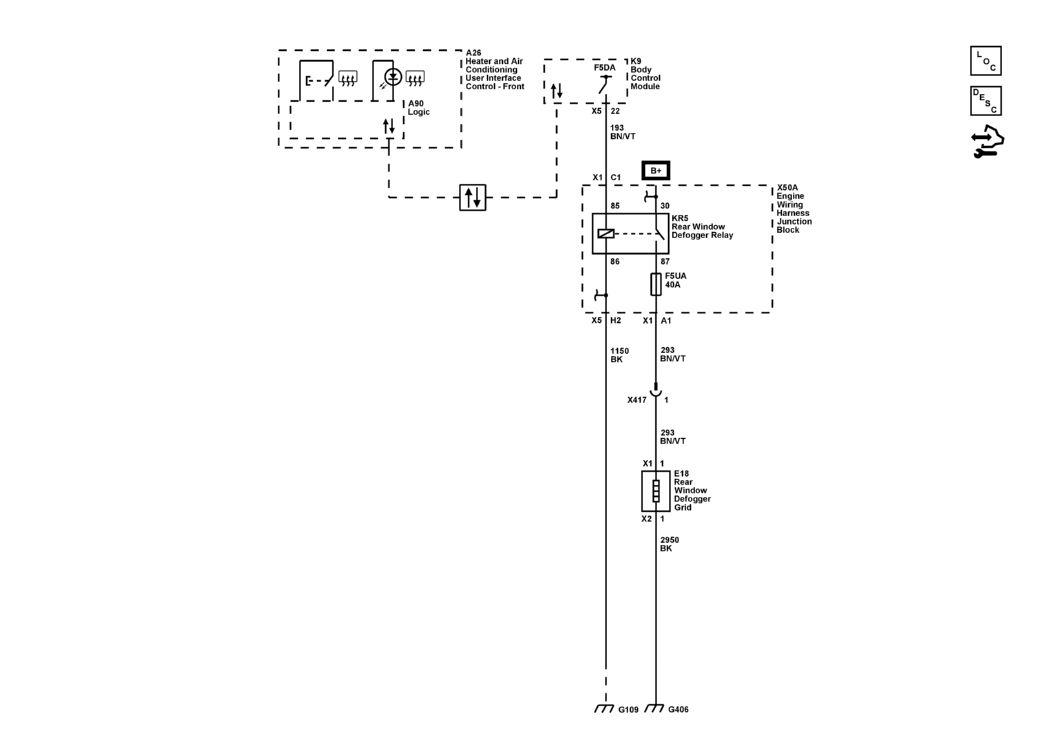

Defogger Wiring Schematics: Defogger

GM5572018Courtesy of GENERAL MOTORS COMPANY
