Engine Oil Pressure Sensor Replacement (FWD)

Courtesy of GENERAL MOTORS COMPANY

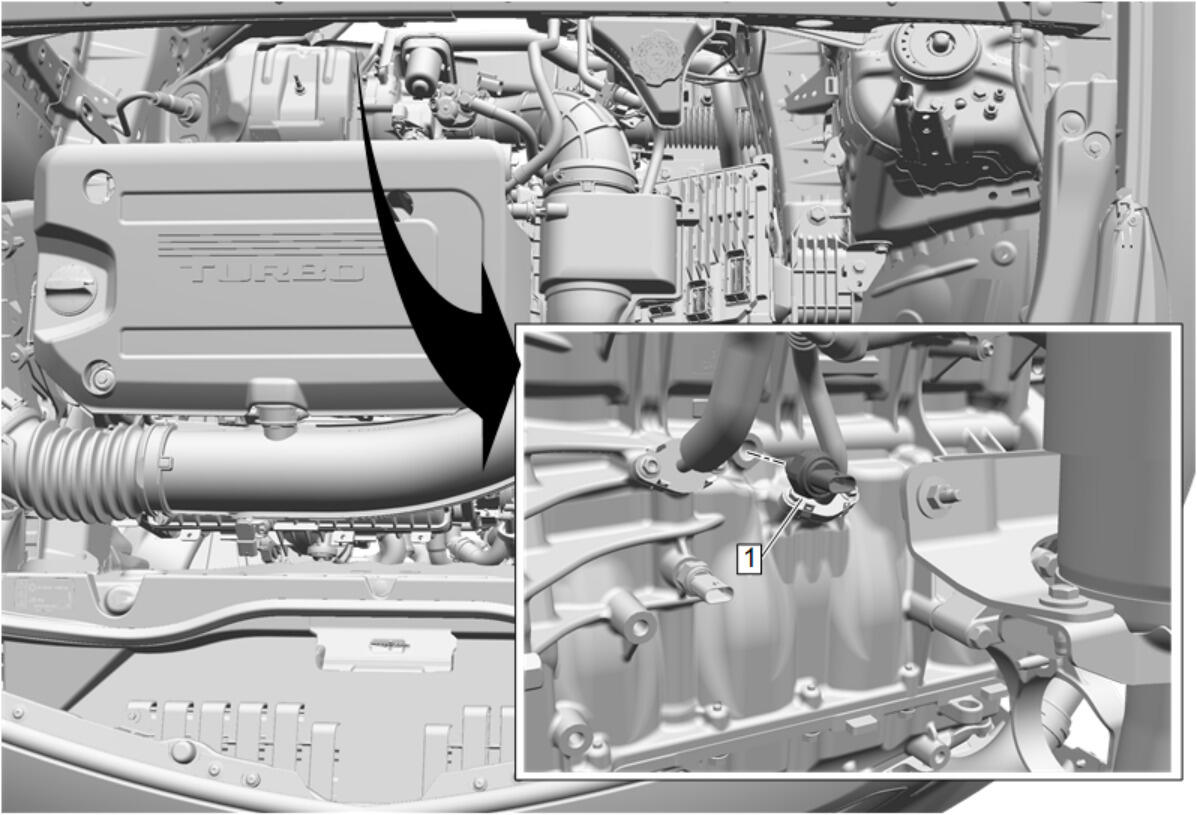

Callout	Component Name
1	WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the engine oil pressure sensor electrical wiring harness connector.Tighten 35 N.m (26 lb ft)
