Accelerator Pedal Replacement

Courtesy of GENERAL MOTORS COMPANY

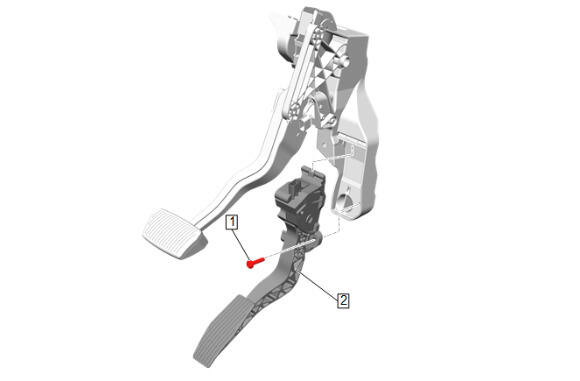

Callout	Component Name
1	Accelerator Pedal Lever Bolt CAUTION: Fastener Caution Tighten  6 N.m (53 lb in)
2	Accelerator Pedal Procedure  Disconnect the electrical connector.
