Air Cleaner Element Replacement

Courtesy of GENERAL MOTORS COMPANY

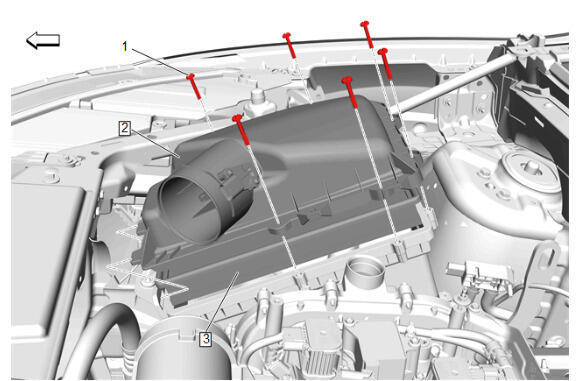

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement Disconnect the electrical connector. Remove wiring harness retainers from air cleaner assembly.
1	Air Cleaner Upper Housing Bolt [6x] CAUTION: Fastener Caution Tighten 4 N.m (35 lb in)
2	Air Cleaner Upper Housing
3	Air Cleaner Element
