Fuel Pump Insulator Replacement

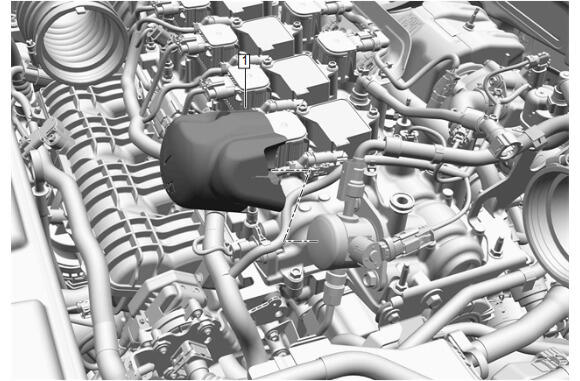

GM5612823Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

Preliminary Procedure Air Cleaner Outlet Intermediate Duct Replacement
1 Fuel Pump Insulator
