Mass Airflow Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

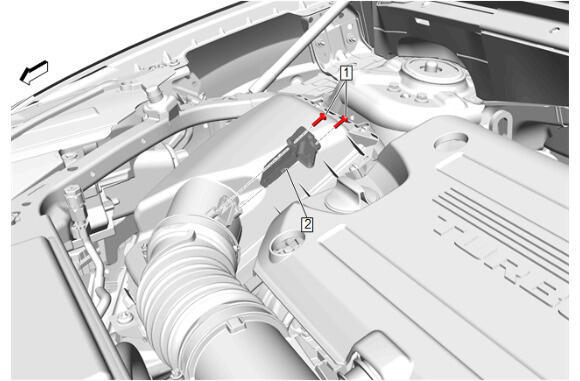

Callout	Component Name
1	Mass Airflow Sensor Bolt [2x] CAUTION: Fastener Caution Tighten  1.4 N.m (12 lb in)
2	Mass Airflow Sensor Procedure  Disconnect the electrical connector.
