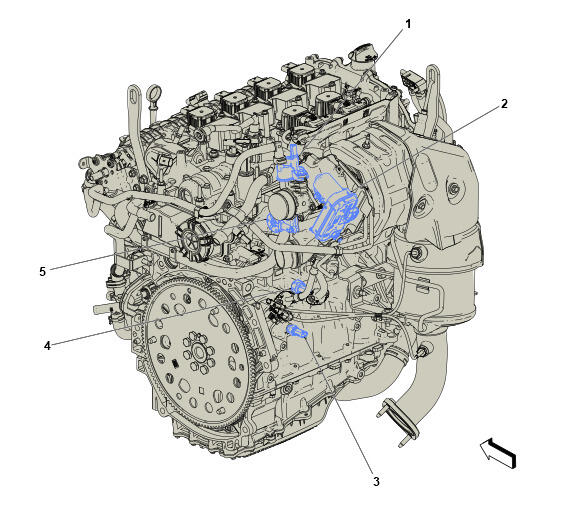

Engine Components - Left Rear
Engine Components - Left Rear
| Component Name | Callout |
|---|---|
| Q12 Evaporative Emission Canister Purge Solenoid Valve Q12 Evaporative Emission Canister Purge Solenoid Valve | 1 |
| M128 Turbocharger Wastegate Actuator M128 Turbocharger Wastegate Actuator | 2 |
| B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor | 3 |
| B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor | 4 |
| Q40 Turbocharger Bypass Valve Solenoid Q40 Turbocharger Bypass Valve Solenoid | 5 |
