Door Lock Switch Replacement - Driver Side

Courtesy of GENERAL MOTORS COMPANY

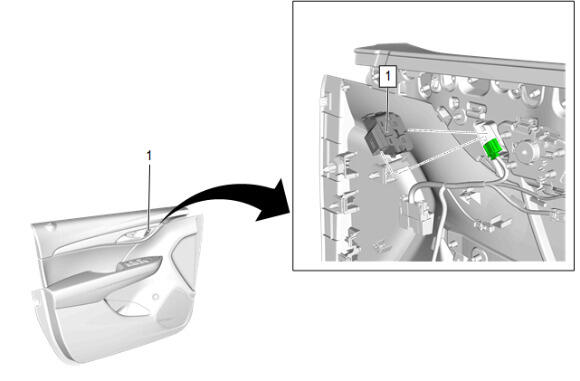

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement
1	Door Lock Switch - Driver Side Procedure Disconnect the electrical connector. Unlock the retaining tabs.

Callout

Component Name

Door Lock Switch - Driver Side

Procedure
