Liftgate Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

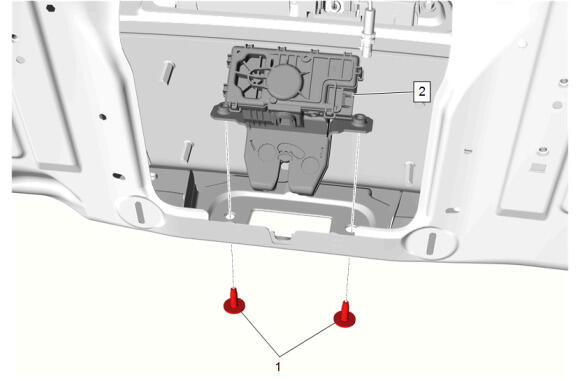

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement
1	Liftgate Latch Bolt [2x] CAUTION: Fastener Caution Tighten 22 N.m (16 lb ft)
2	Liftgate Latch Procedure Disconnect the electrical connector.
