Liftgate Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

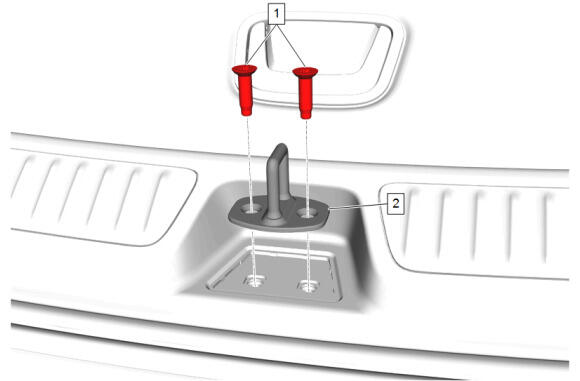

Callout	Component Name
Preliminary Procedure  Liftgate Latch Cover Replacement
1	Liftgate Latch Striker Bolt [2x] CAUTION: Fastener Caution Procedure  Use a grease pencil to outline the striker before removing the bolts. Tighten  22 N.m (16 lb ft)
2	Liftgate Latch Striker Procedure  Adjust the liftgate latch striker after replacing, if needed.
