Rear Side Door Outside Handle Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

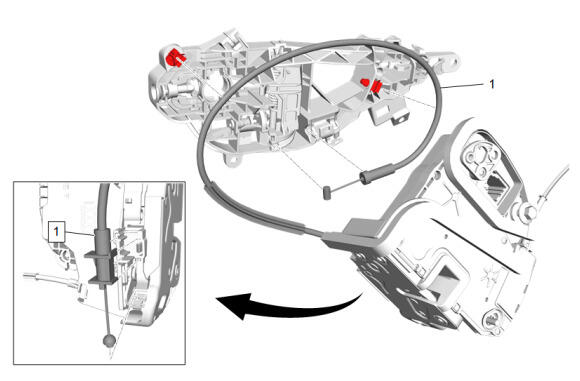

Callout	Component Name
Preliminary Procedure Rear Side Door Latch Replacement
1	Rear Side Door Outside Handle Cable Procedure Rear Side Door Outside Handle Cable - Remove @ Rear Side Door Latch Rear Side Door Outside Handle Cable - Remove @ Rear Side Door Outside Handle Bracket Ensure that the door lock system operates properly.

Callout

Component Name

Rear Side Door Outside Handle Cable

Procedure

Rear Side Door Outside Handle Cable - Remove @ Rear Side Door Latch
Rear Side Door Outside Handle Cable - Remove @ Rear Side Door Outside Handle Bracket
Ensure that the door lock system operates properly.
