Installation Procedure

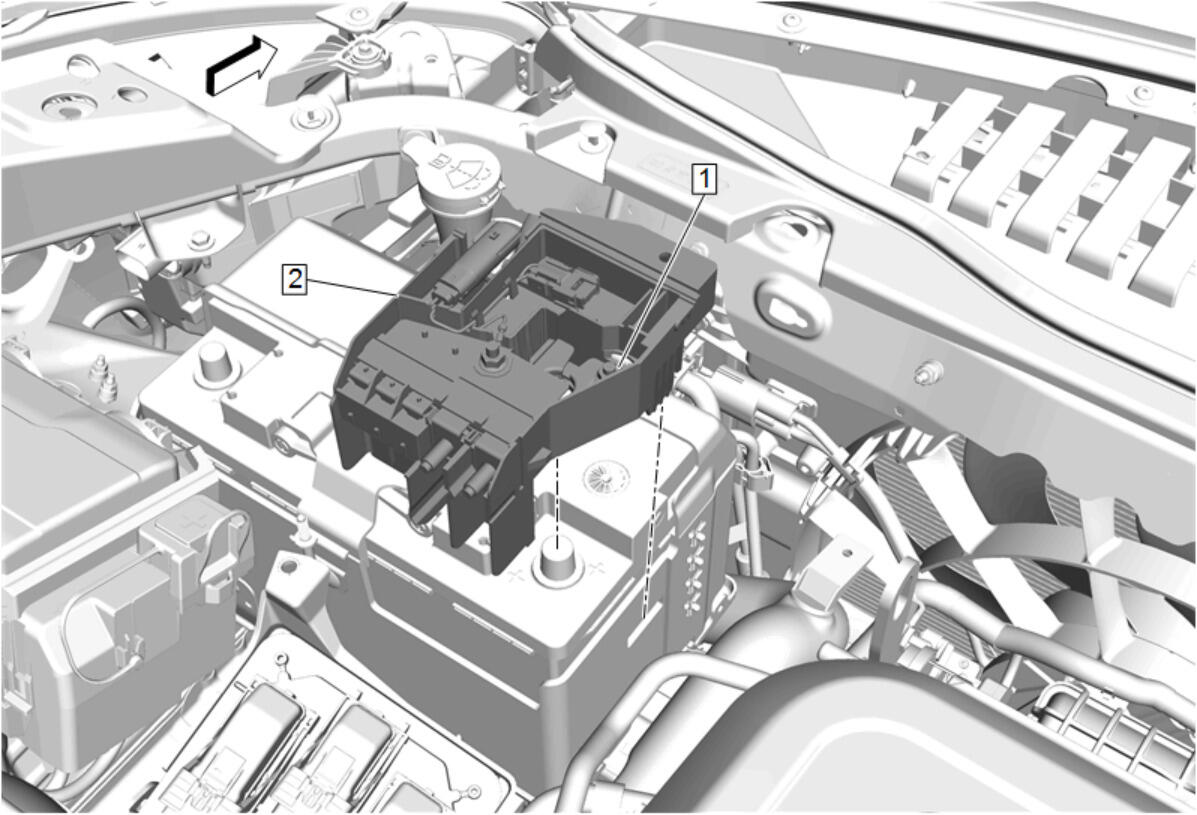

  1. GM5053730Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Positive Post Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)

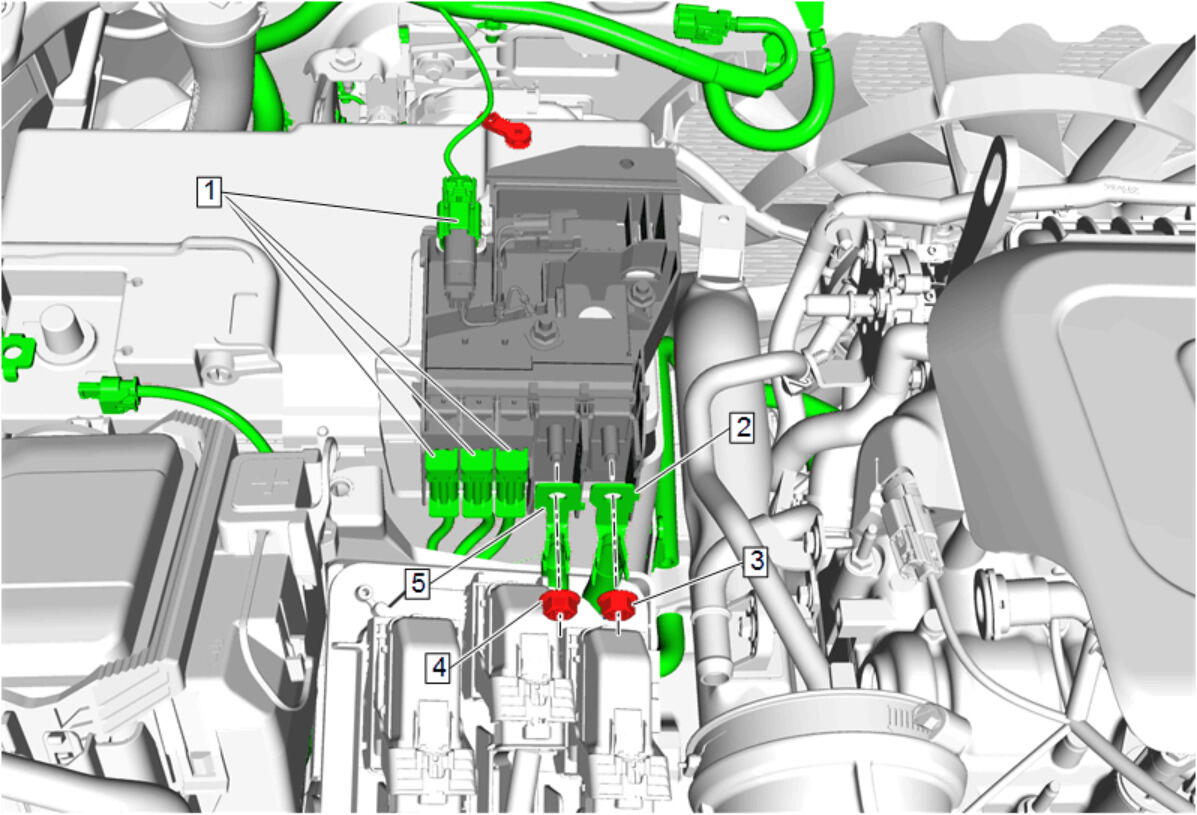

  3. GM5053727Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect [4x]

  4. Battery Positive Cable (2) - Install
  5. Battery Positive Cable Nut (3) - Install and tighten 16 N.m (12 lb ft)
  6. Battery Positive Junction Block Cable (5) - Install
  7. Battery Positive Cable Nut (4) - Install and tighten 16 N.m (12 lb ft)

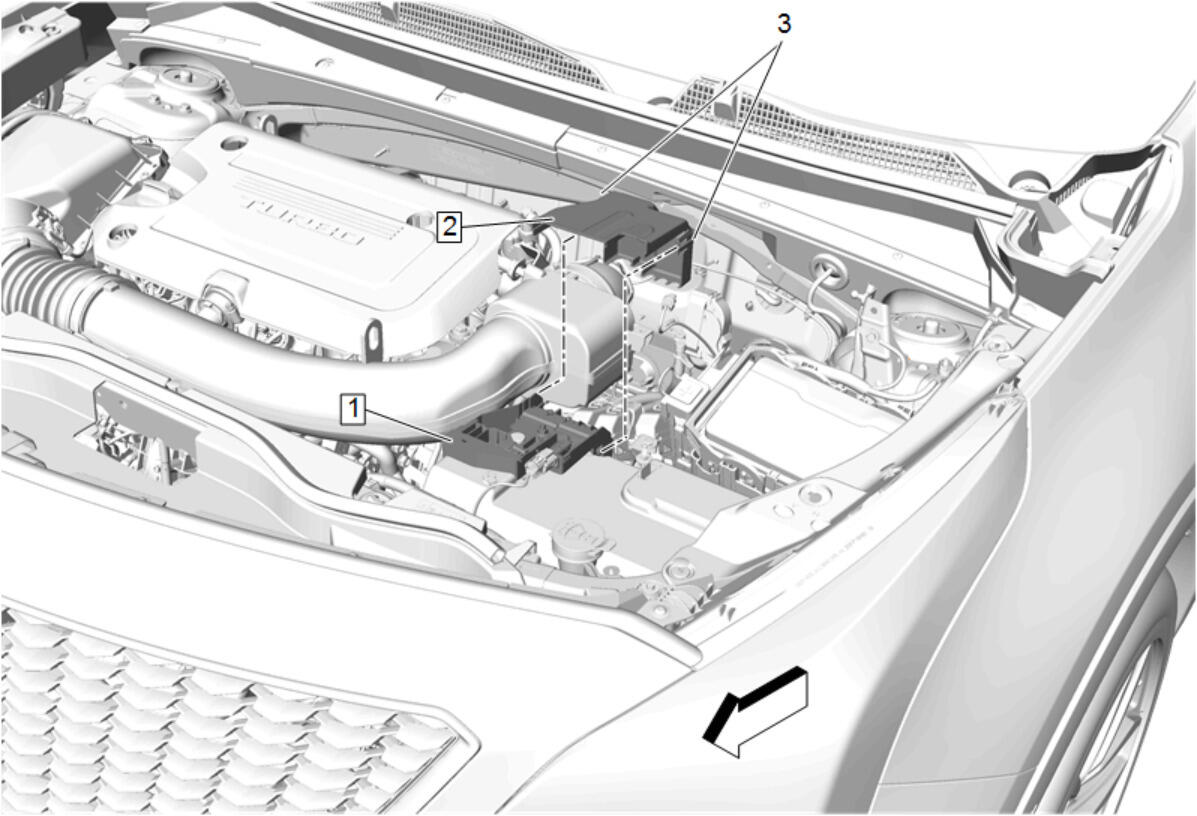

  8. GM5053422Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Fuse Block Cover (2) - Install - Front Compartment Fuse Block Cover Replacement

  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
