Installation Procedure

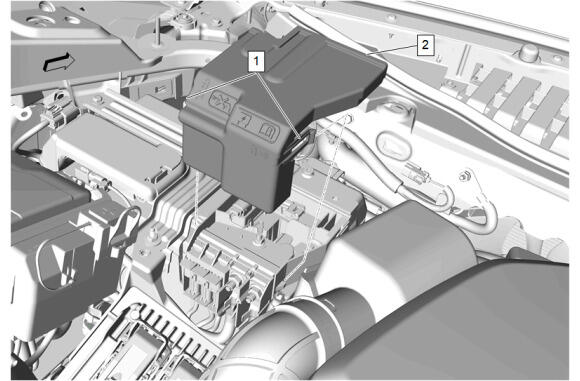

  1. GM5513726Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Fuse Block Cover (2) - Install

  2. Retaining Tab (1) @ Battery Distribution Engine Compartment Fuse Block - Engage [2x]

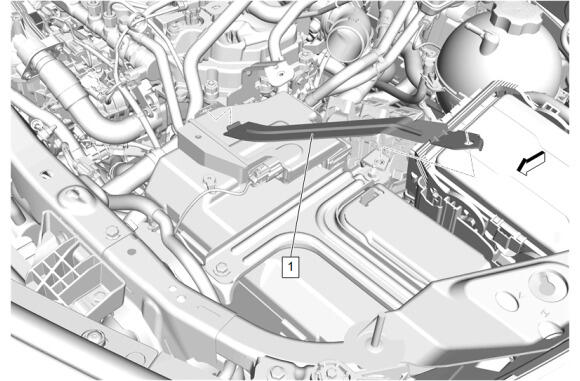

  3. GM5513654Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Battery Auxiliary Tray Hold Down Strap (1) - Install - Battery Auxiliary Tray Hold Down Strap Replacement
