Exhaust Front Bracket Replacement (AWD)

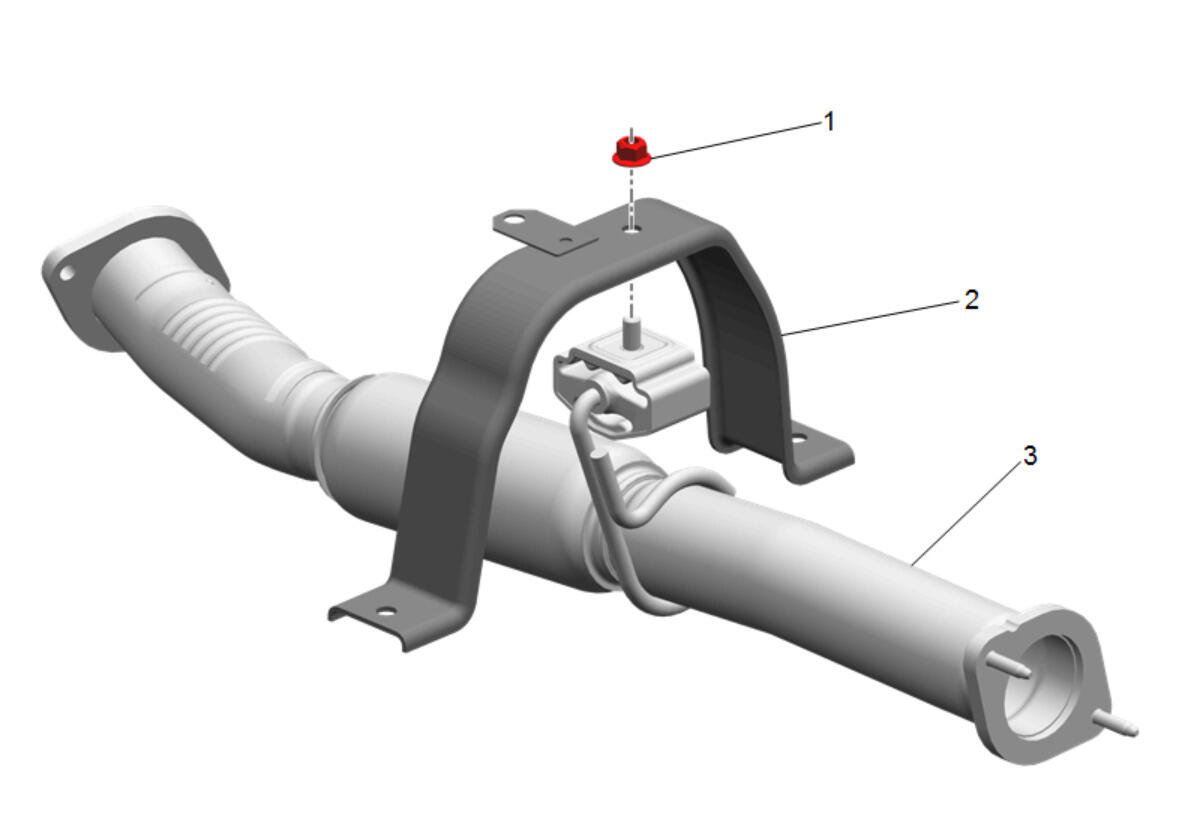

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Preliminary Procedure Exhaust Front Pipe Replacement (AWD) Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. |
|
| 1 | Exhaust Hanger Bracket Nut
CAUTION:
Tighten 22 N.m (16 lb ft) |
| 2 | Exhaust Front Bracket |
| 3 | Exhaust Front Pipe |
