Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

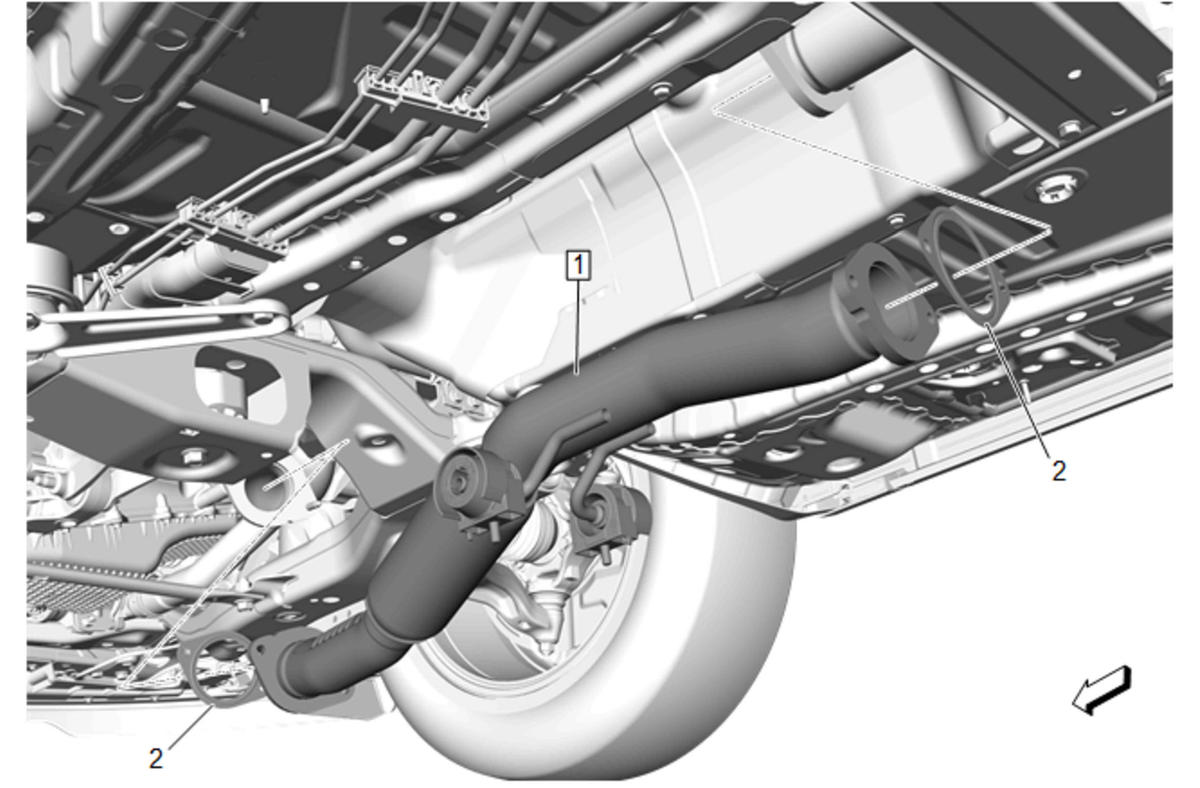

Catalytic Converter Gasket (2) - Install NEW [2x]
Exhaust Front Pipe (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Bracket (3) - Install - Exhaust Front Bracket Replacement (FWD)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

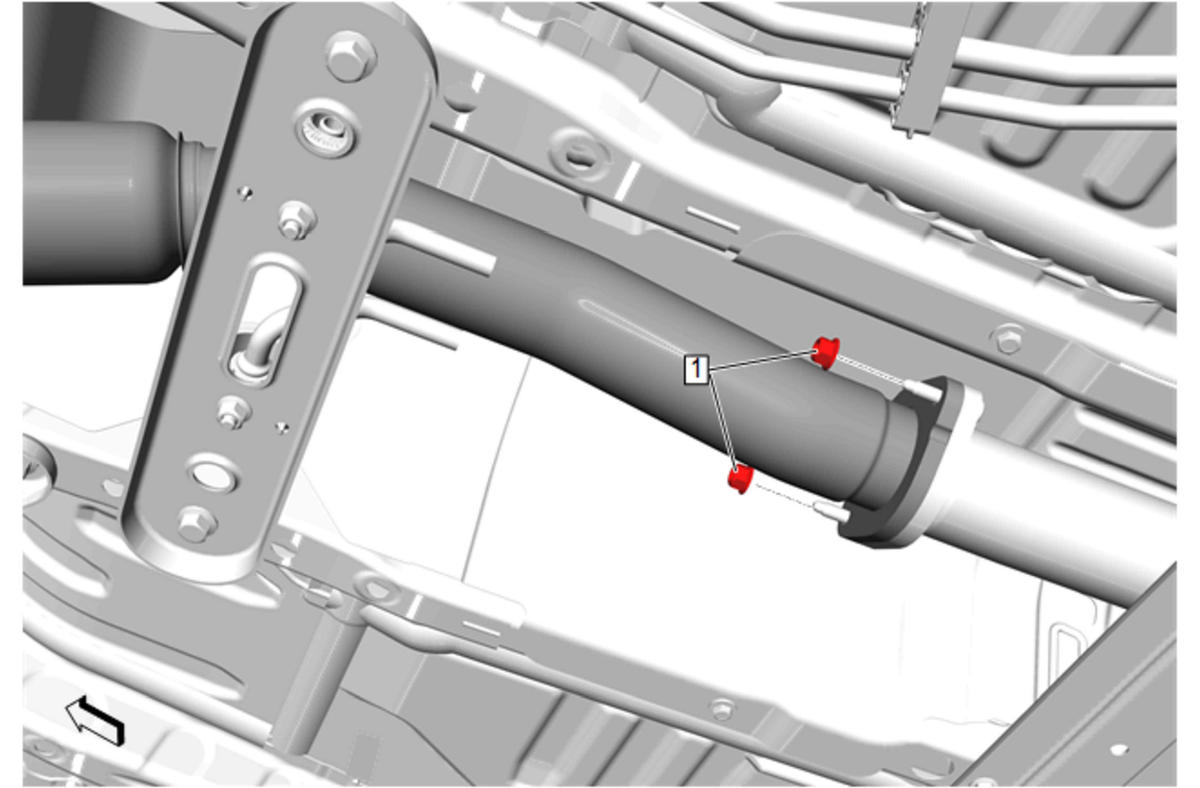

Catalytic Converter Nut (1) @ Exhaust Muffler - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

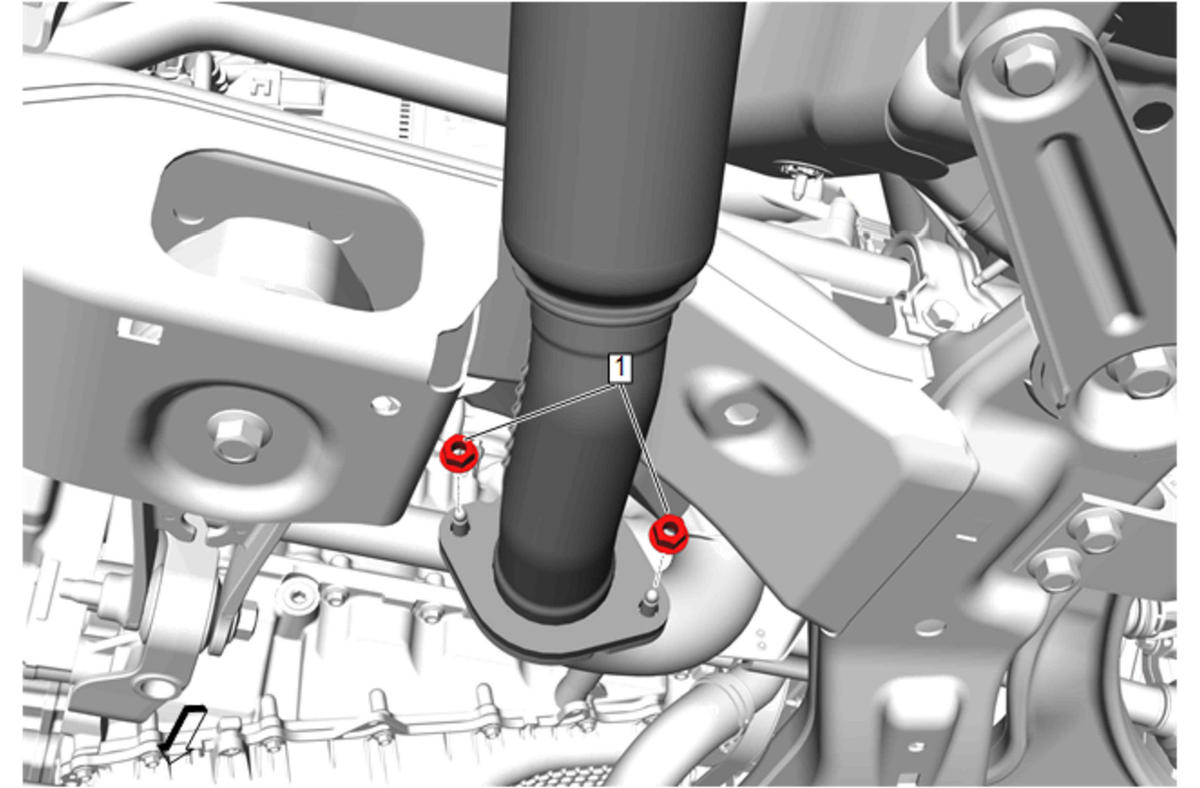

Catalytic Converter Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Inspect the exhaust system for leaks.
Lower the vehicle.
