Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

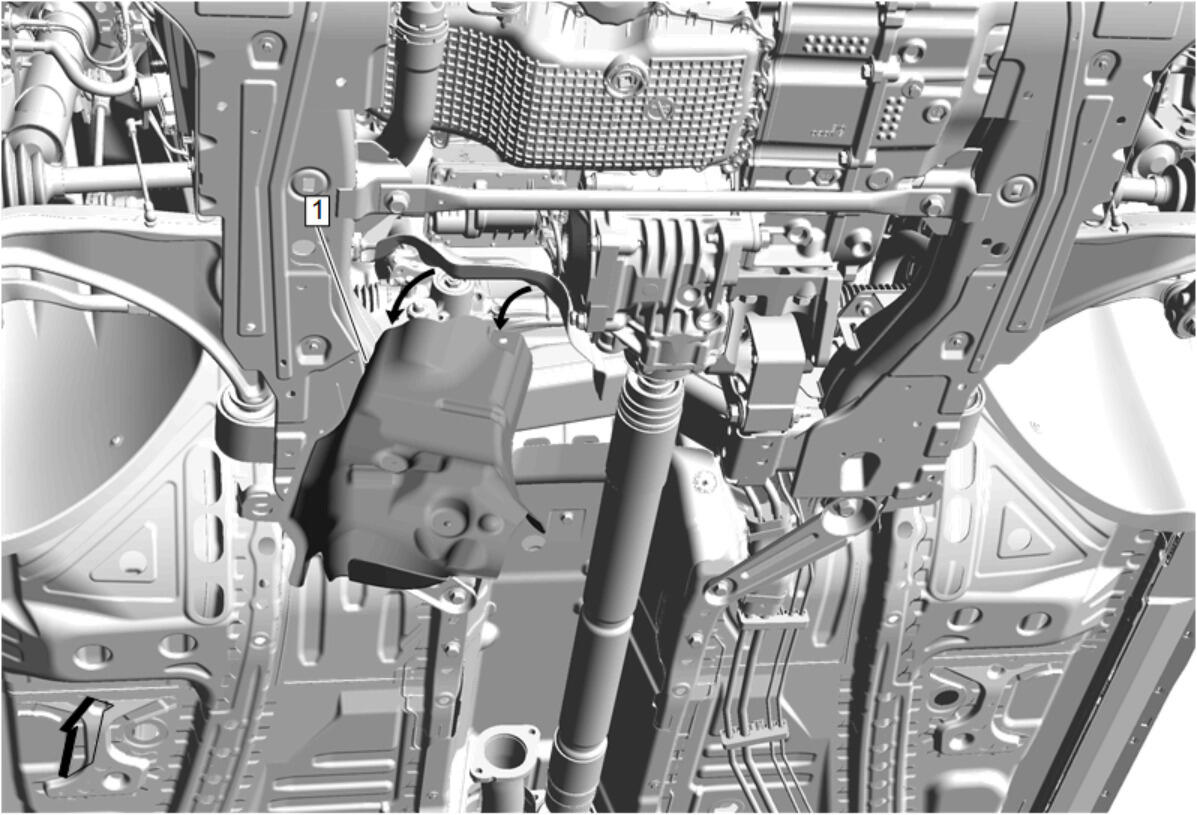

Front Compartment Air Deflector (1) - Remove - Front Compartment Air Deflector Replacement (Base)
Courtesy of GENERAL MOTORS COMPANY

Exhaust Front Pipe (1) - Remove - Exhaust Front Pipe Replacement (FWD) , or Exhaust Front Pipe Replacement (AWD)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Steering Gear Heat Shield Bolt (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Steering Gear Heat Shield (1) - Remove
