Electronic Suspension Position Sensor Link Ball Stud Replacement: Installation

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

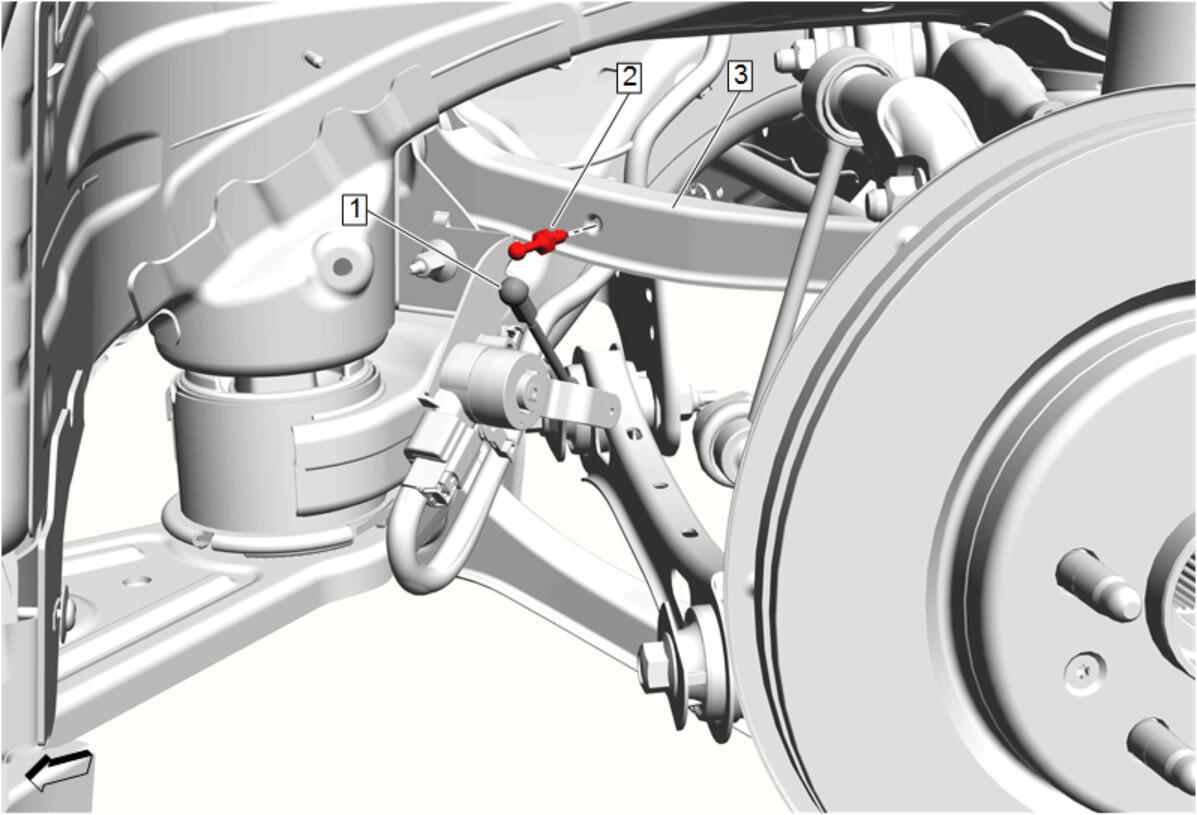

Electronic Suspension Position Sensor Link Ball Stud (2) @ Rear Suspension Upper Trailing Link (3) - Install and tighten 5.5 N.m (49 lb in)
Connect the electronic suspension position sensor link (1) to the electronic suspension position sensor link ball stud (2).
Install the left rear tire and wheel assembly. Tire and Wheel Removal and Installation
Remove the support and lower the vehicle.
