Front Seat Adjuster Memory Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

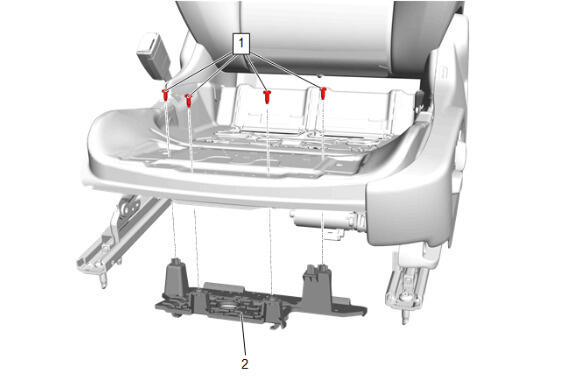

Callout	Component Name
Preliminary Procedure Driver Seat Adjuster Memory Module Replacement Reposition the front seat cover and pad. Front Seat Cushion Cover and Pad Replacement
1	Front Seat Adjuster Memory Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 4.7 N.m (42 lb in)
2	Front Seat Adjuster Memory Module Bracket

Callout

Component Name

Preliminary Procedure

Front Seat Adjuster Memory Module Bolt [4x]

CAUTION:

Tighten
4.7 N.m (42 lb in)

Front Seat Adjuster Memory Module Bracket
