Installation Procedure

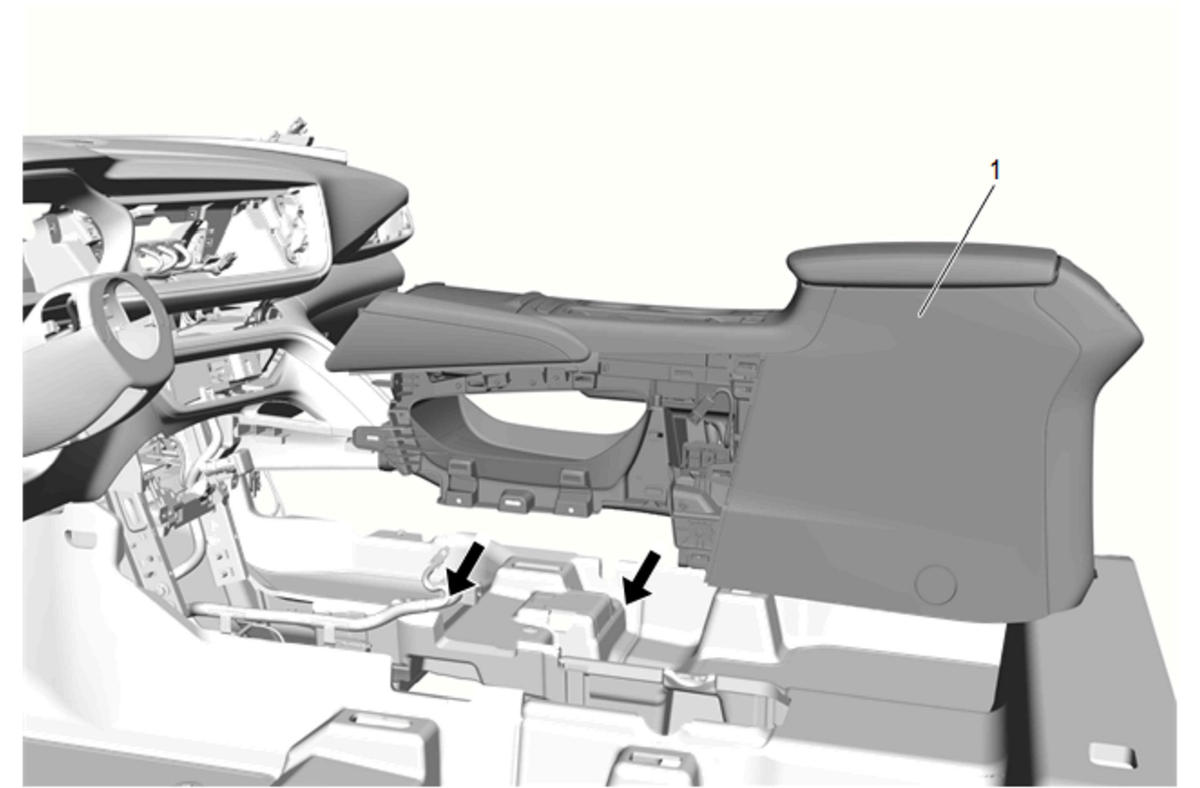

  1. GM5569253Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install

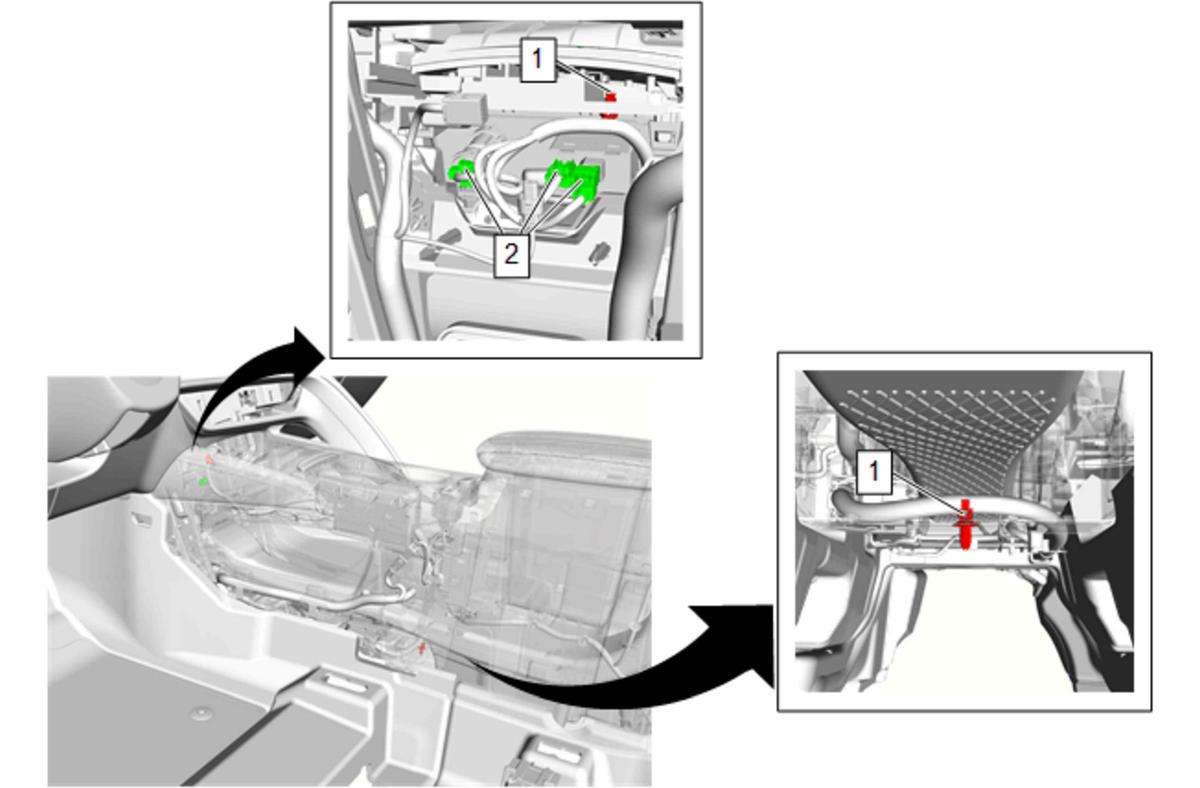

  2. GM5569250Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors. (2) [3x]

  3. Install the retainers. (1) [2x]

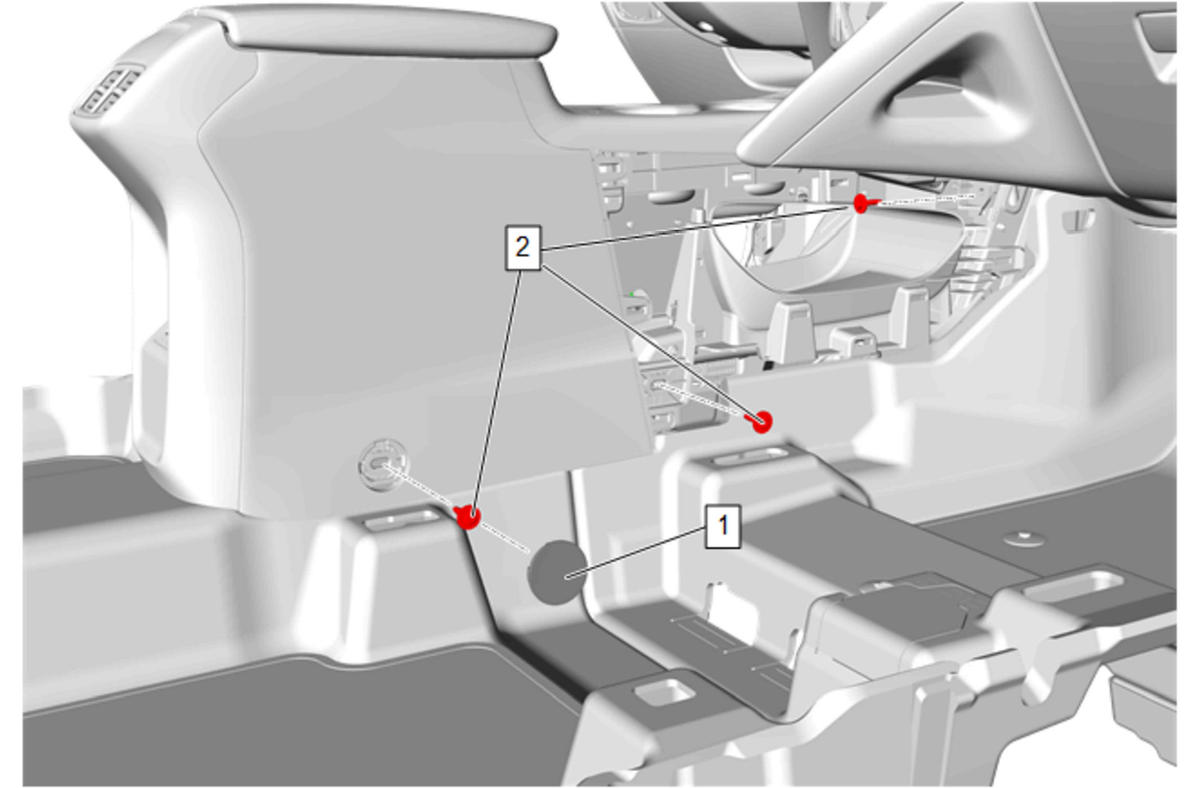

  4. GM5569249Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Front Floor Console Bolt @ Front Floor Console (2) - Install and tighten [3x] 9 N.m (80 lb in)

  5. Front Floor Console Bolt Access Hole Cover (1)- - Install

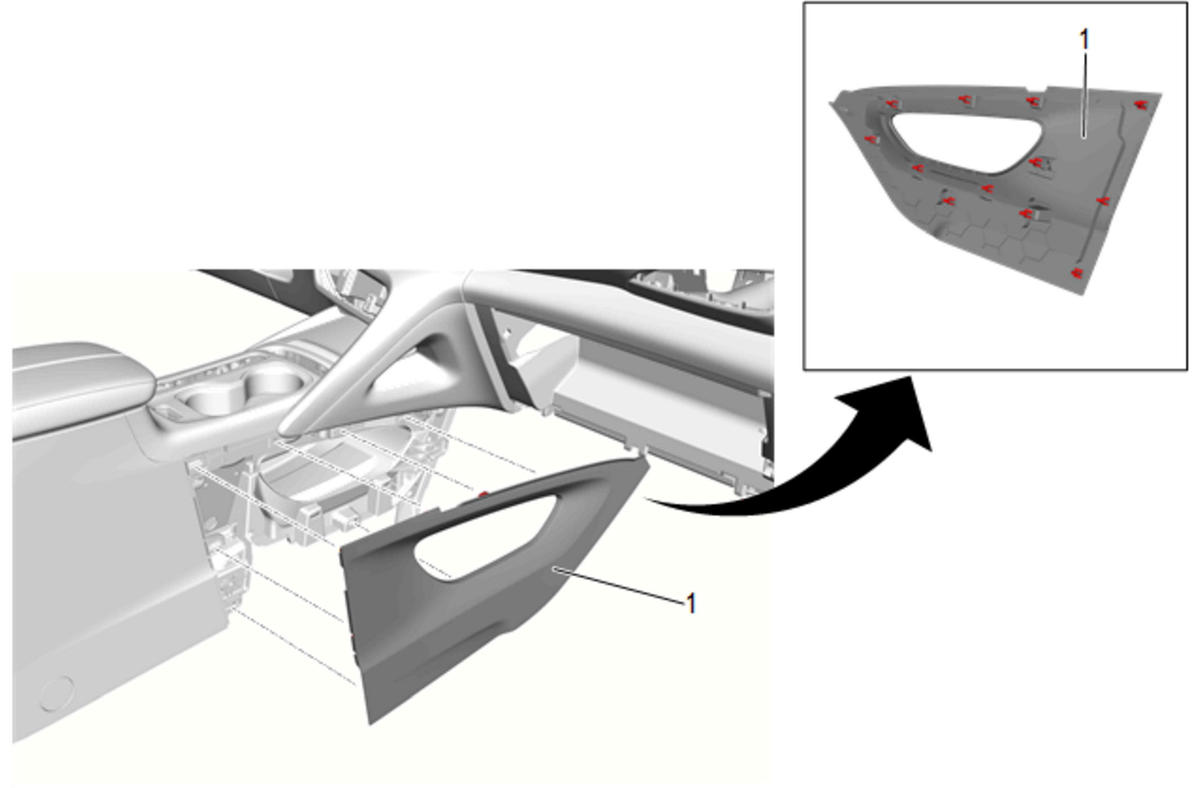

  6. GM5568710Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side

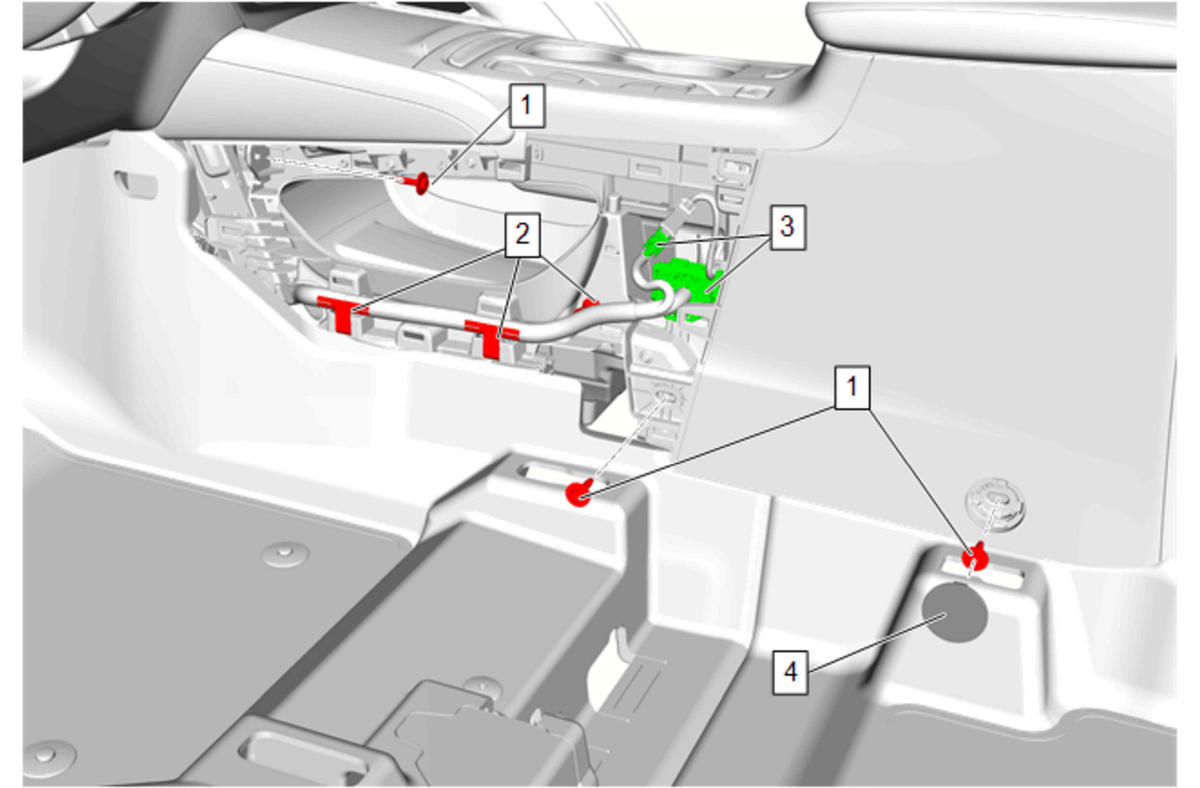

  7. GM5569248Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt @ Front Floor Console (1) - Install and tighten [3x] 9 N.m (80 lb in)

  8. Front Floor Console Bolt Access Hole Cover (4)- - Install
  9. Connect the electrical connectors. (3) [2x]
  10. Install the retainers. (2) [3x]

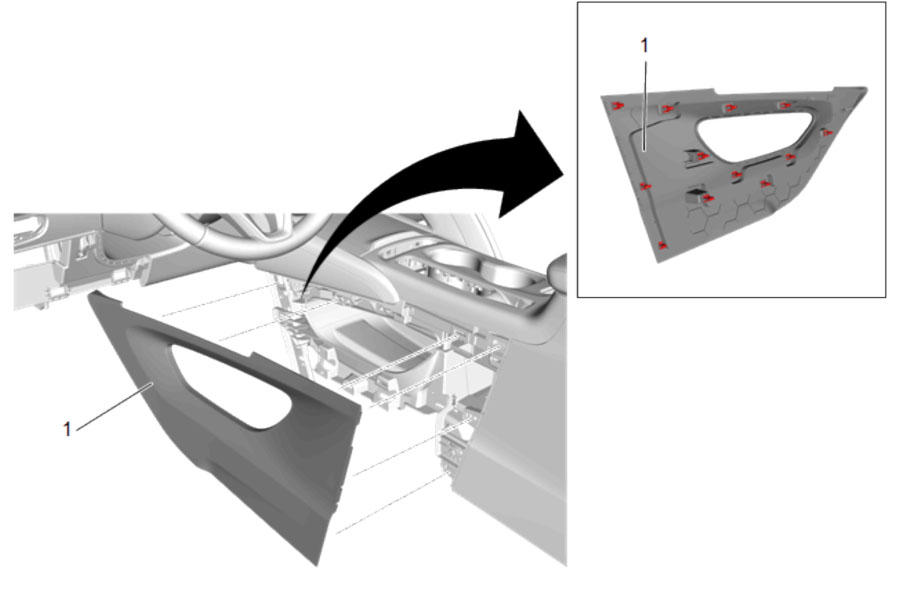

  11. GM5568708Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side

  12. GM5549334Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel- Right Side (2) - Install - Instrument Panel Lower Center Trim Panel Replacement - Right Side

  13. GM5549341Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel - Left Side (2) - Install - Instrument Panel Lower Center Trim Panel Replacement - Left Side

  14. GM5549333Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Pad- Right Side (1) - Install - Instrument Panel Center Trim Pad Replacement - Right Side
