Installation Procedure

  1. Connect the heated steering wheel module electrical connectors, if equipped.
    GM5733396Courtesy of GENERAL MOTORS COMPANY
  2. Steering Wheel Shroud (1) » Install
    GM5733395Courtesy of GENERAL MOTORS COMPANY

    3. Caution  :Fastener Caution .

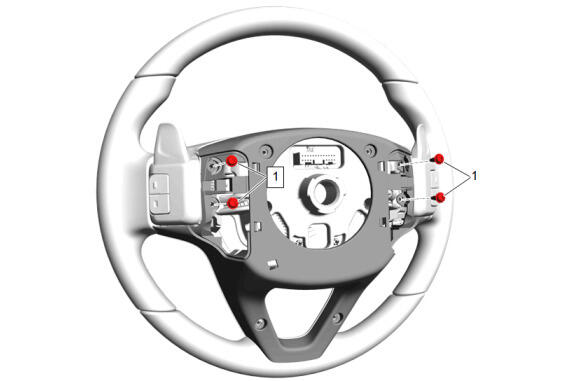

  3. Steering Wheel Bolt (1) @ Automatic Transmission Manual Shift Auxiliary Position Switch » Install and tighten [4x] 3.5 N.m (31 lb in).
    GM5733396Courtesy of GENERAL MOTORS COMPANY
  4. Steering Wheel Spoke Cover Bolt (1) » Install and tighten [2x] 1.1 N.m (10 lb in).
  5. Steering Wheel Bolt (2) @ Steering Wheel Shroud » Install and tighten [2x] 0.8 N.m (7 lb in).
    GM5733134Courtesy of GENERAL MOTORS COMPANY
  6. Steering Wheel (2) » Install - Steering Wheel Replacement
  7. Steering Wheel Airbag » Install - Steering Wheel Airbag Replacement
    GM5733123Courtesy of GENERAL MOTORS COMPANY
  8. Install the left and right steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
