Air Cleaner Element Replacement

Courtesy of GENERAL MOTORS COMPANY

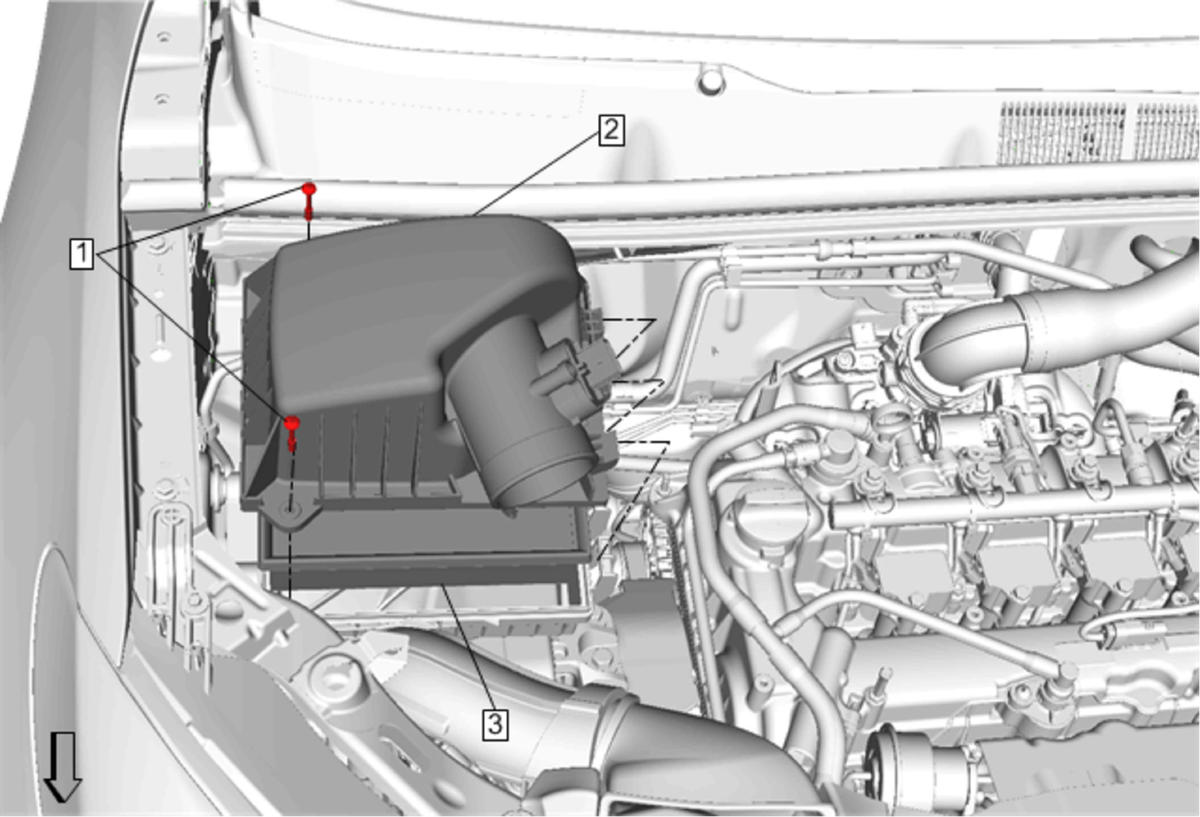

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement Disconnect the electrical connector.
1	Air Cleaner Upper Housing Bolt [2x] CAUTION: Refer to Fastener Caution .
2	Air Cleaner Upper Housing
3	Air Cleaner Element
