Windshield Washer Solvent Container Level Sensor Replacement
WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

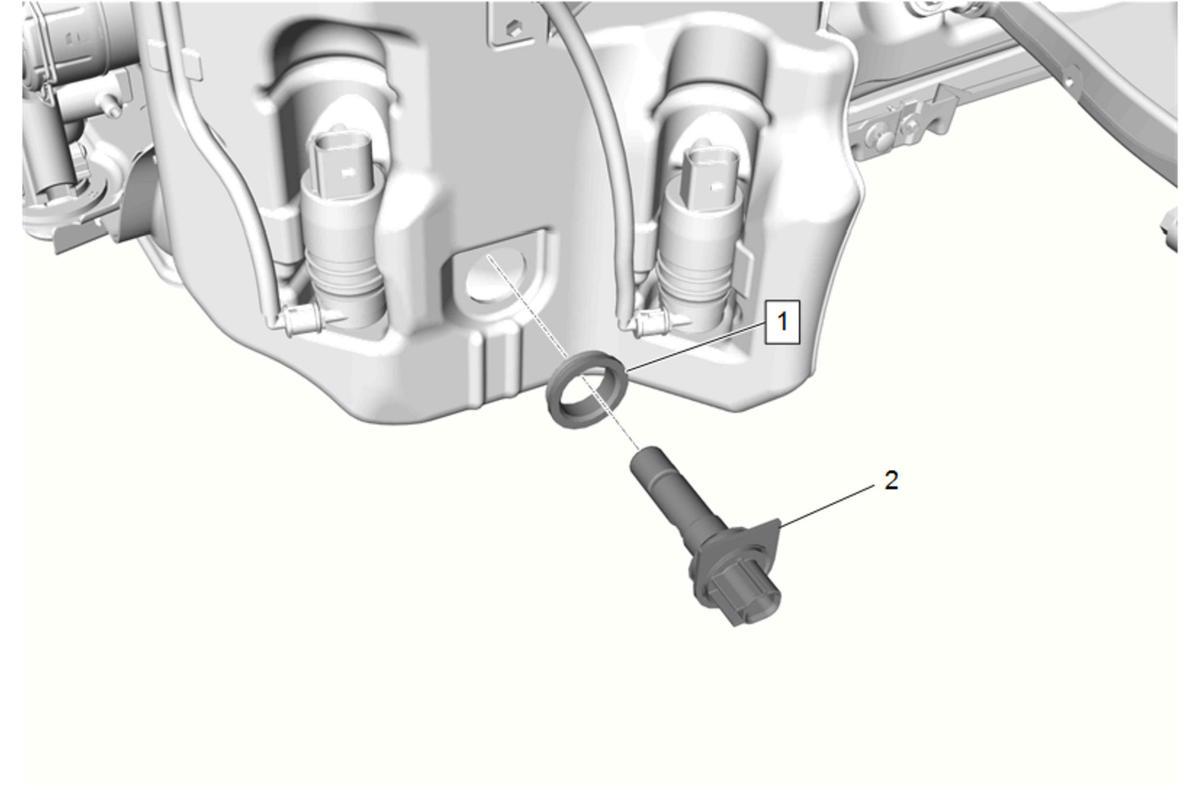

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Removal and Installation |
|
| 1 | Windshield Washer Solvent Container Level Sensor Grommet Procedure Using a small flat-bladed tool, remove the grommet from the windshield washer solvent container and inspect the grommet. Replace if damaged. |
| 2 | Windshield Washer Solvent Container Level Sensor Procedure Disconnect the electrical connector. |
