Front View Driver Information Camera Replacement

WARNING: This page is about a different car, the 2022 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

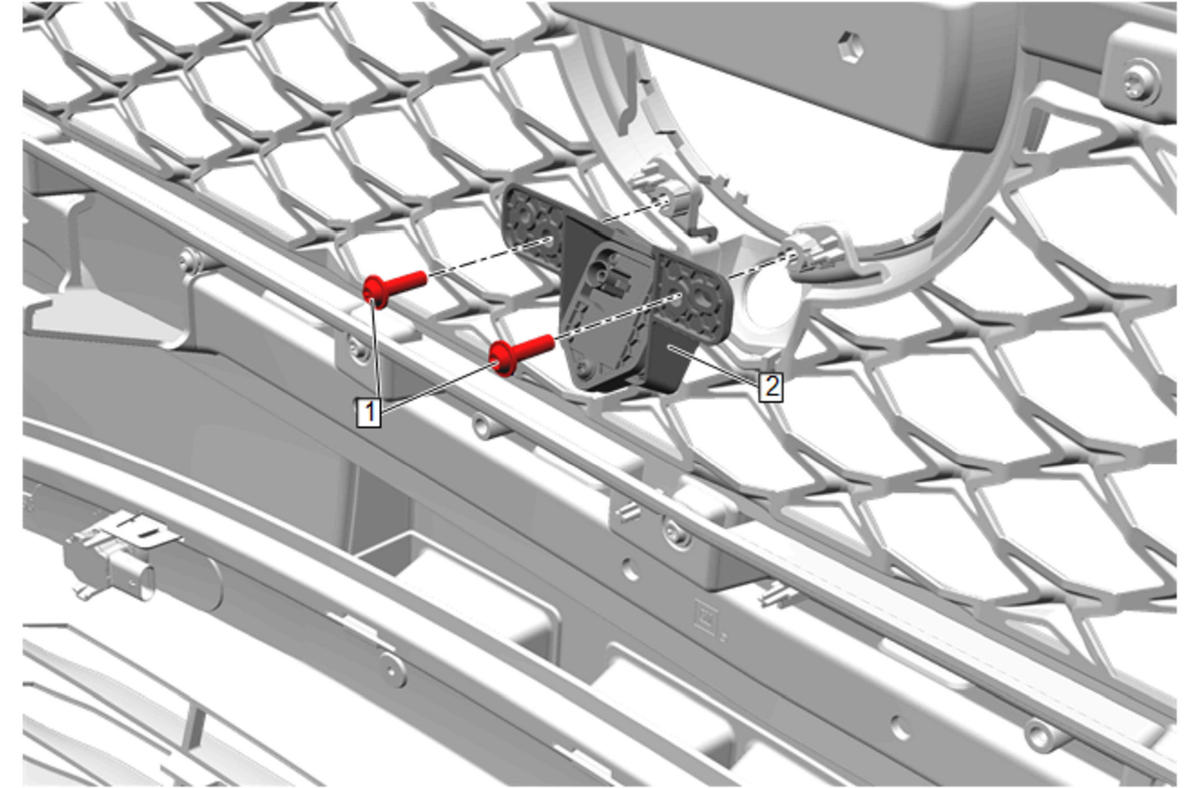

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Removal and Installation Front Bumper Shutter Replacement
1	Front Grille Bolt [2x] CAUTION: Fastener Caution Tighten 4.7 N.m (42 lb in)
2	Front View Driver Information Camera Procedure Disconnect the electrical connector. After installation, perform the video processing control module calibration. Video Processing Control Module Calibration

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Removal and Installation
Front Bumper Shutter Replacement

Front Grille Bolt [2x]

CAUTION:

Fastener Caution

Tighten
4.7 N.m (42 lb in)

Front View Driver Information Camera

Procedure

Disconnect the electrical connector.
After installation, perform the video processing control module calibration. Video Processing Control Module Calibration
