Installation Procedure

  1. O-Ring (2) - Install NEW

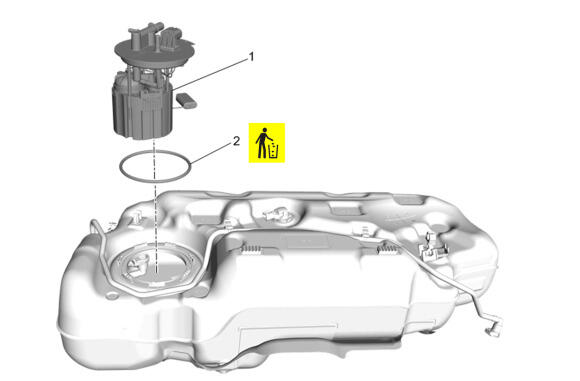

    GM5049524Courtesy of GENERAL MOTORS COMPANY
  2. Fuel Tank Fuel Pump Module (1) - Install
  3. Fuel Tank Vent Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service

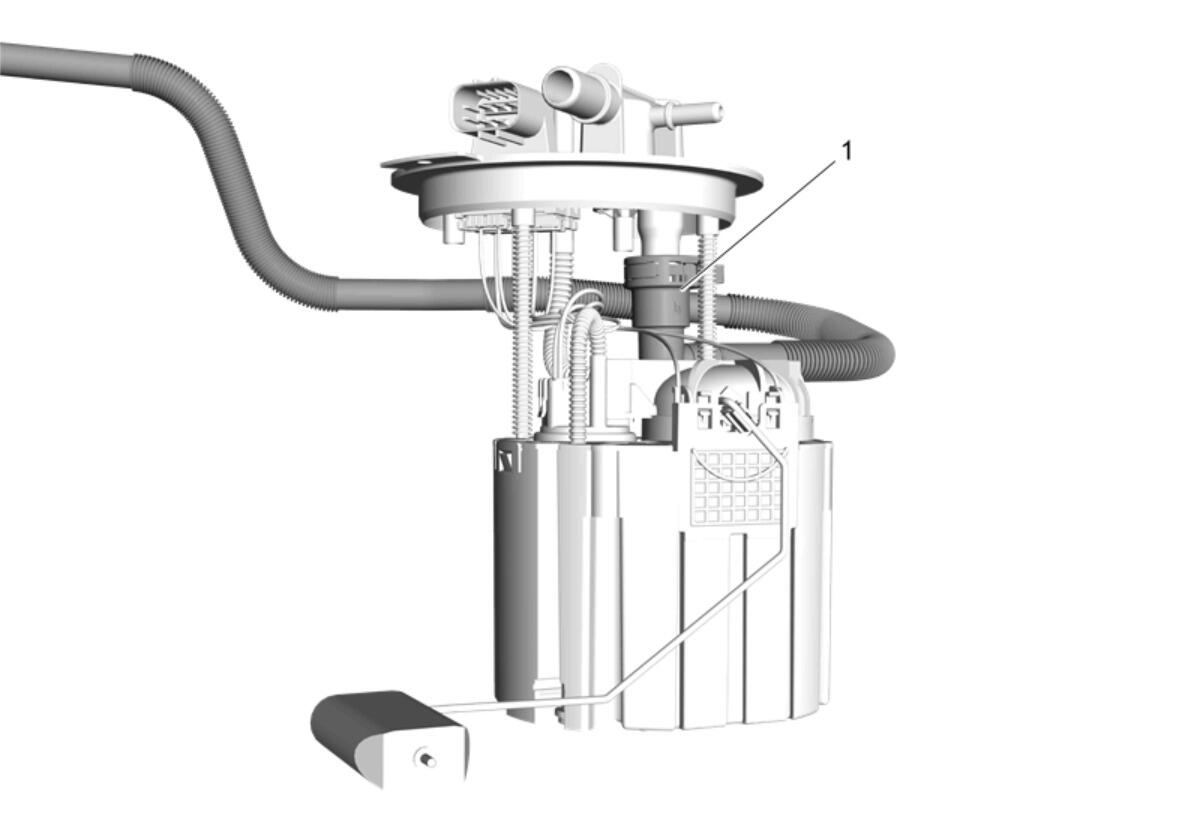

    GM5049528Courtesy of GENERAL MOTORS COMPANY
  4. Fuel Sender Retainer (1) - Install - CH - 45722  Fuel Sender Lock Ring Wrench (2)
    GM5049678Courtesy of GENERAL MOTORS COMPANY
  5. Fuel Tank Vent Pipe (4) @Retainer (5) - Install [2x]

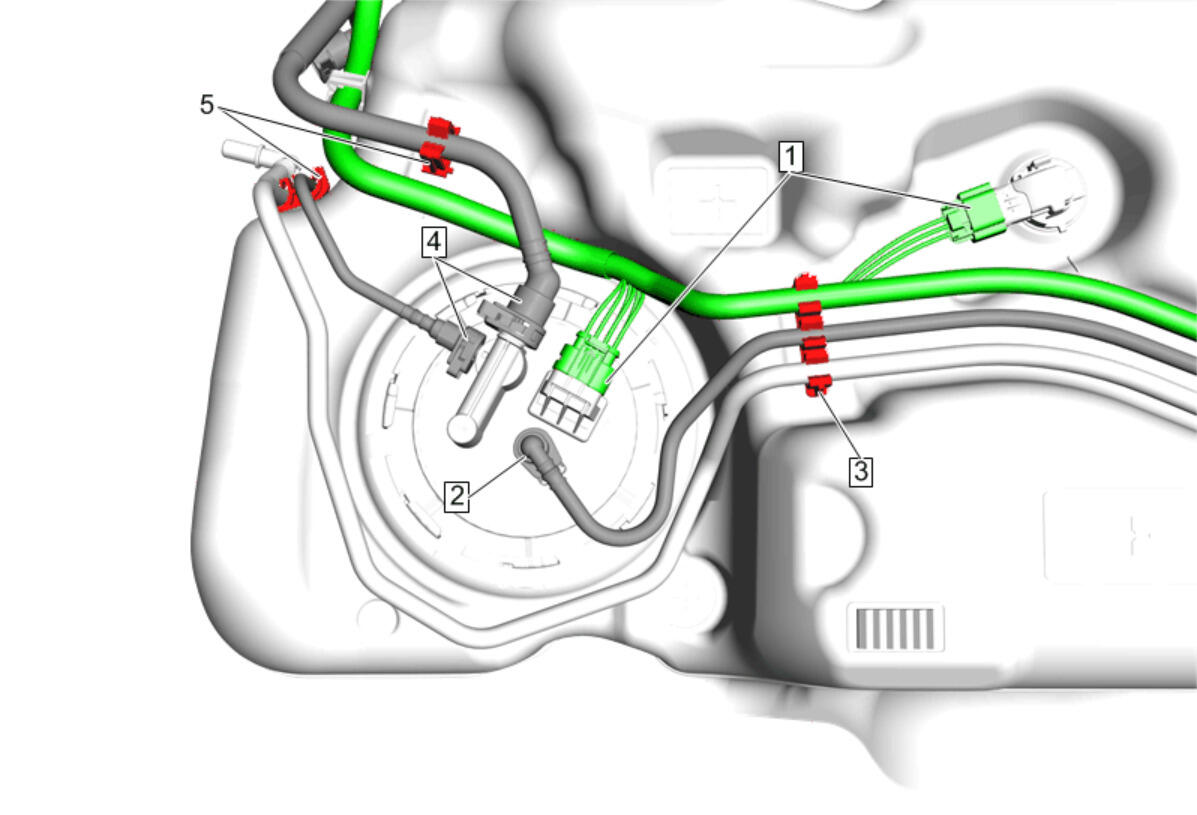

    GM5049511Courtesy of GENERAL MOTORS COMPANY
  6. Fuel Tank Vent Pipe (4) - Connect [2x] - Plastic Collar Quick Connect Fitting Service
  7. Fuel Feed Pipe (2) @Retainer (3) - Install
  8. Fuel Feed Pipe (2) - Connect - Plastic Collar Quick Connect Fitting Service
  9. Electrical Connector (1) - Connect [2x]
  10. Fuel Tank - Install - Fuel Tank Replacement (FWD)
