Installation Procedure

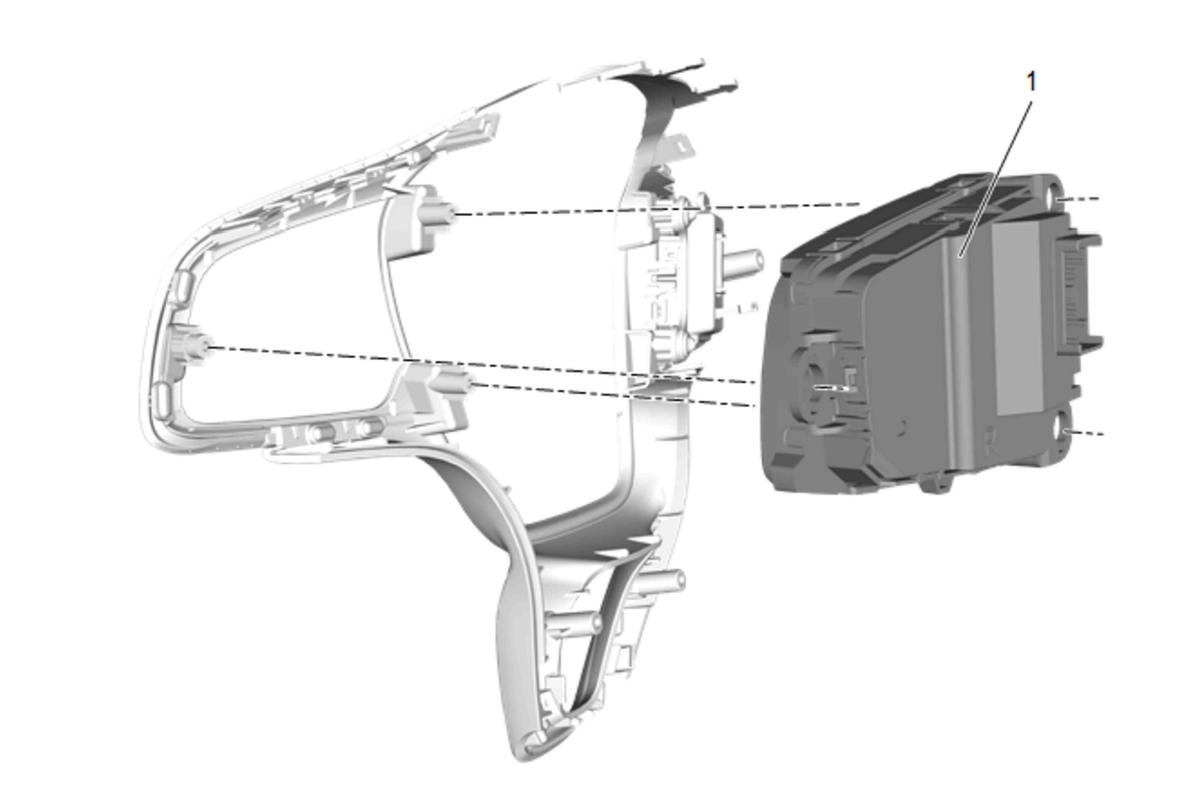

  1. Radio Control Switch (1) - Install - Radio Control Switch Replacement - Steering Wheel
    GM5549060Courtesy of GENERAL MOTORS COMPANY
  2. Cruise Control Switch (1) - Install - Cruise Control Switch Replacement
    GM5549058Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connectors.
  4. Steering Wheel Spoke Cover (1) - Install
    GM5549056Courtesy of GENERAL MOTORS COMPANY
    5. CAUTION:

    Fastener Caution

  5. Steering Wheel Bolt (1) @Steering Wheel Spoke Cover - Install and tighten [2x] 3.5 N.m (31 lb in)
  6. Automatic Transmission Manual Shift Auxiliary Position Switch Replacement
    GM5548997Courtesy of GENERAL MOTORS COMPANY
  7. Steering Wheel Shroud (3) - Install - Steering Wheel Shroud Replacement
    GM5548996Courtesy of GENERAL MOTORS COMPANY
  8. Steering Wheel (1) - Install - Steering Wheel Replacement
    GM5548847Courtesy of GENERAL MOTORS COMPANY
  9. Steering Wheel Airbag (2) - Install - Steering Wheel Airbag Replacement
    GM5548842Courtesy of GENERAL MOTORS COMPANY
  10. Install the left and right side of steering wheel airbag access hole covers (1). Steering Wheel Airbag Access Hole Cover Replacement
    GM5548843Courtesy of GENERAL MOTORS COMPANY
