Garage Door Opener Transmitter Replacement

Courtesy of GENERAL MOTORS COMPANY

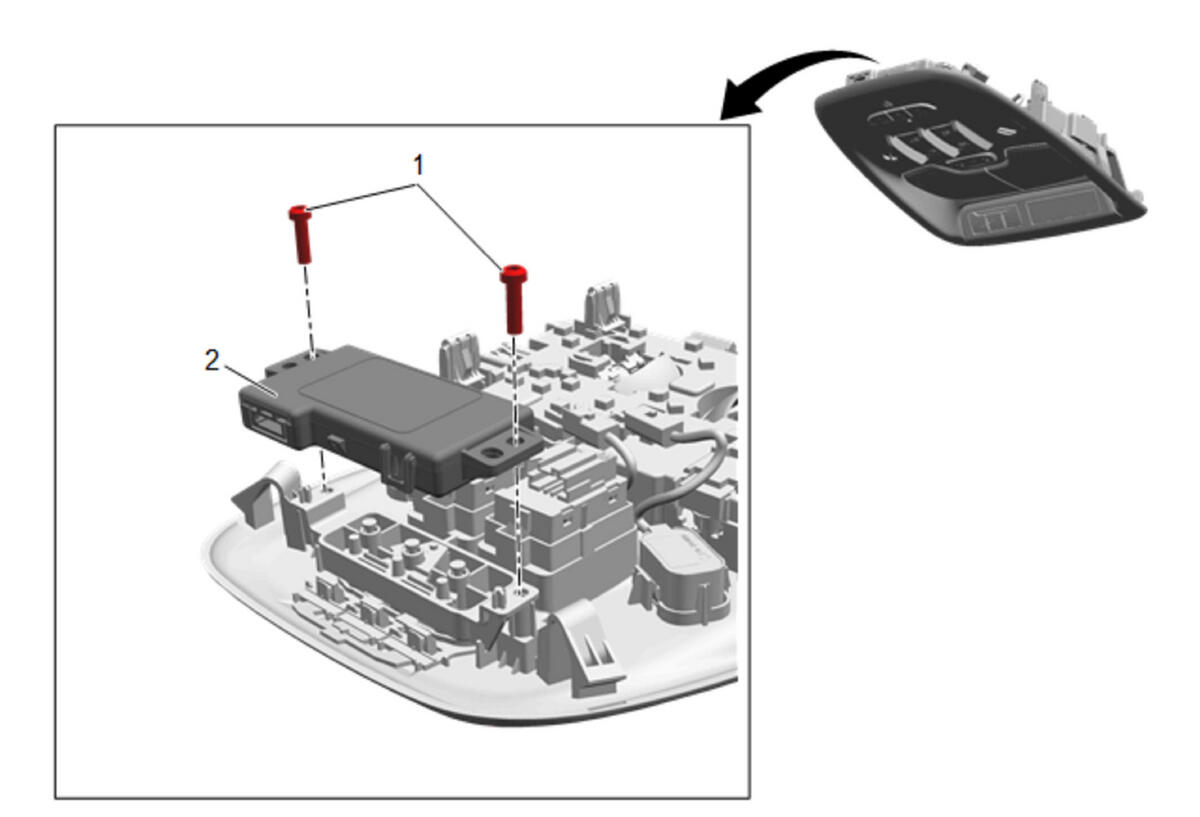

Callout	Component Name
Preliminary Procedure  Roof Console Replacement (Except C3U) , or Roof Console Replacement (C3U)
1	Roof Console Bolt [2x] CAUTION: Fastener Caution Tighten  1.5 N.m (13 lb in)
2	Garage Door Opener Transmitter Procedure  Disconnect the electrical connector.
