Wireless Charging System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

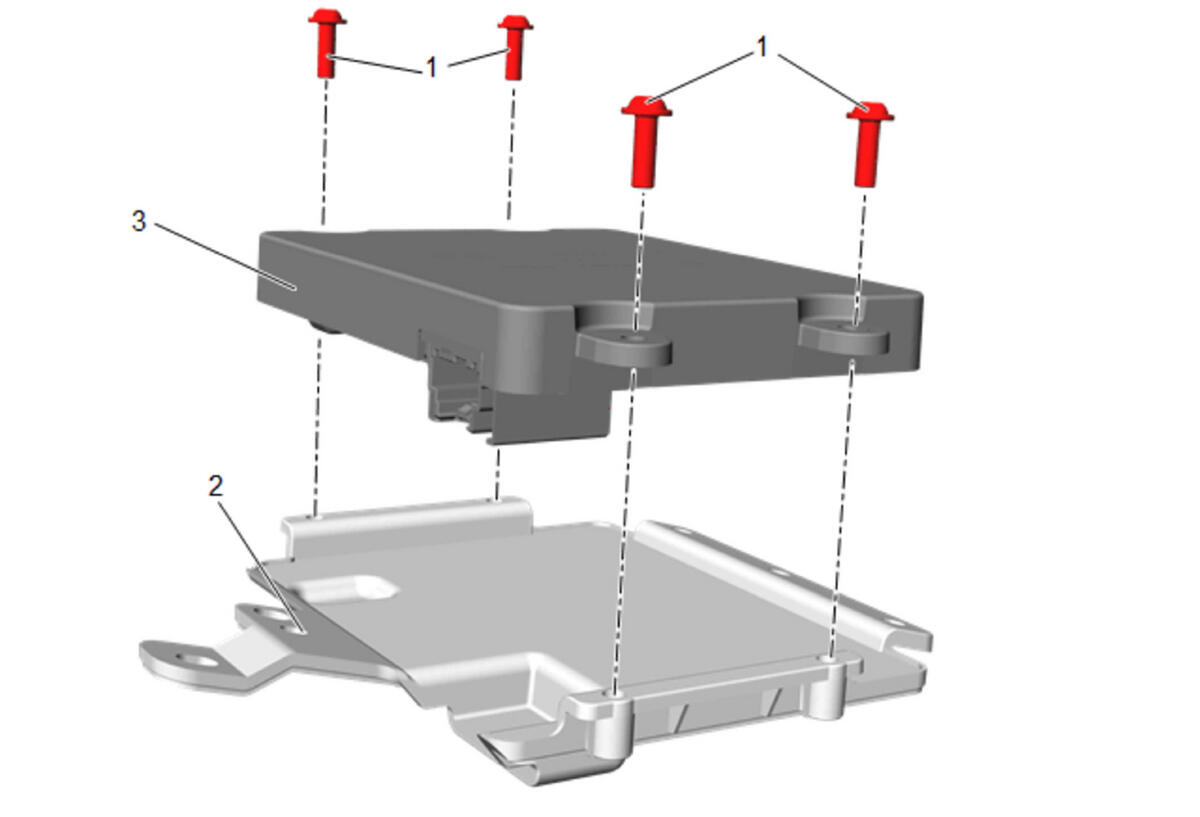

Callout	Component Name
Preliminary Procedure  Wireless Charging System Module Bracket Replacement
1	Wireless Charging System Module Bolt[4x] CAUTION: Fastener Caution Tighten  0.8 N.m (7 lb in)
2	Wireless Charging System Module Bracket
3	Wireless Charging System Module
