Video Processing Module Replacement

WARNING: This page is about a different car, the 2022 Buick Encore GX. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

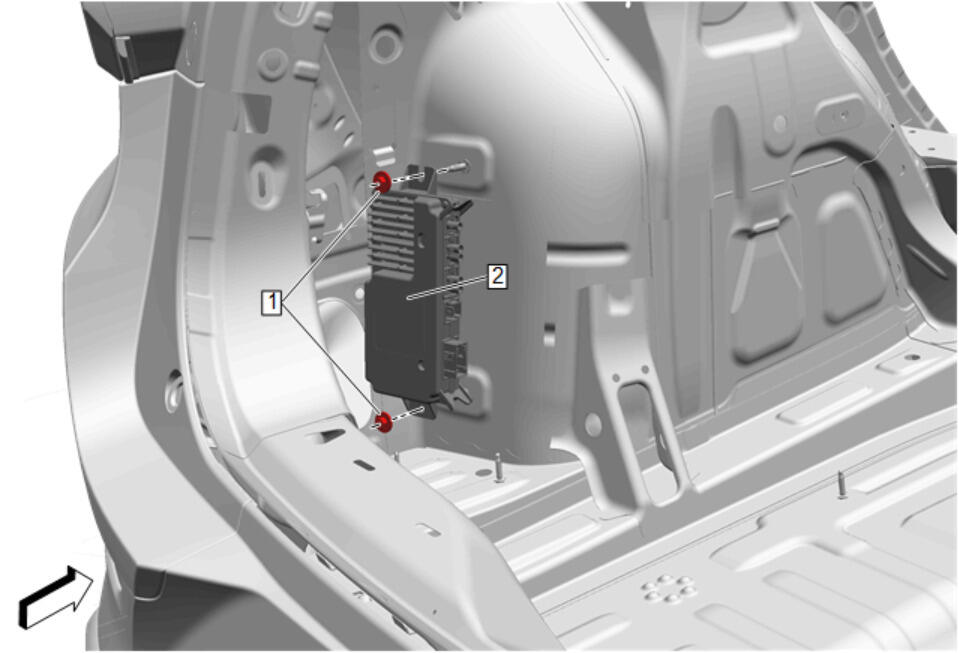

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement - Left Side
1	Video Processing Module Nut [2x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Quarter Lower Rear Trim Panel Replacement - Left Side

Video Processing Module Nut [2x]

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb in)

Video Processing Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
