Installation Procedure
WARNING: This page is about a different car, the 2021 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

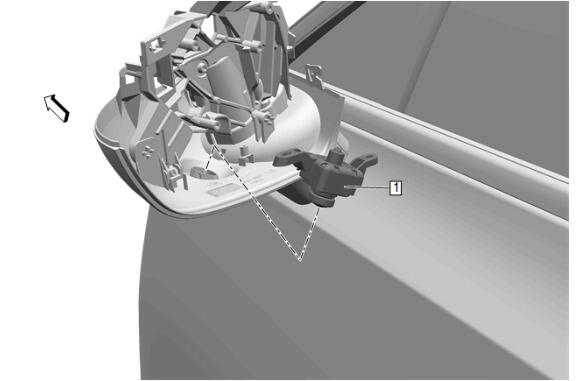

Install the side view driver information camera and the bracket (1) together.
- CAUTION:
Refer to Fastener Caution .

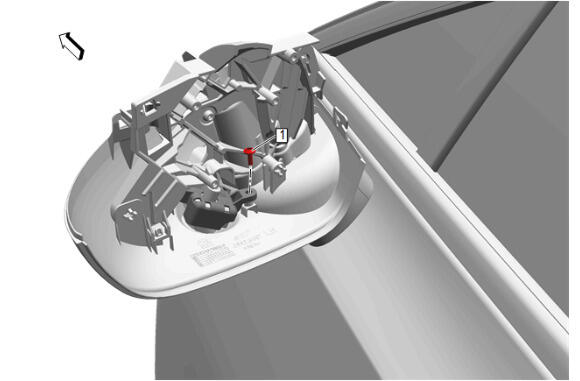

Side View Driver Information Camera Bolt (1) - Install and tighten 0.8 N.m (7 lb in)

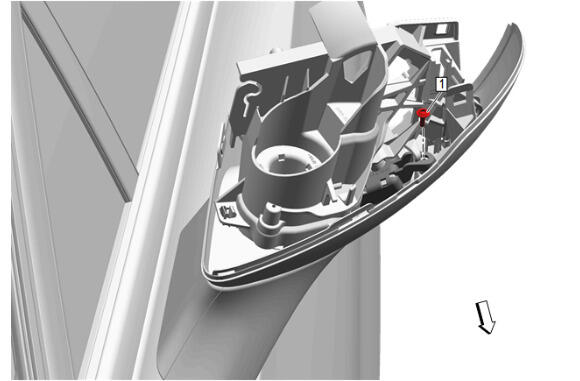

Side View Driver Information Camera Bolt (1) - Install and tighten 0.8 N.m (7 lb in)

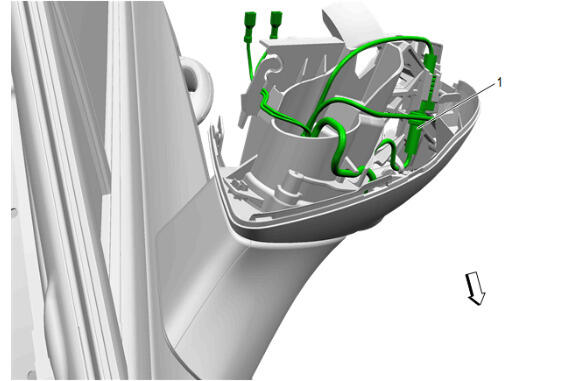

Side View Driver Information Camera Harness Connector (1) - Connect

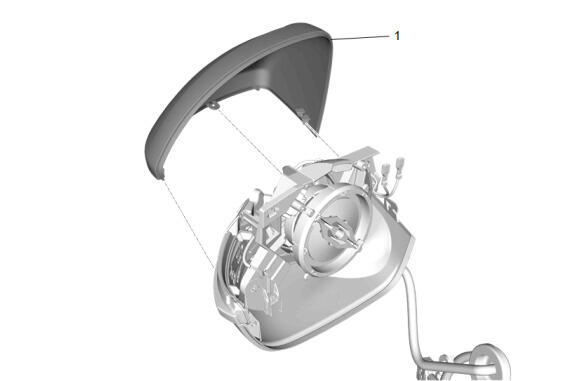

Outside Rearview Mirror Housing Upper Cover (1) - Install - Outside Rearview Mirror Housing Upper Cover Replacement

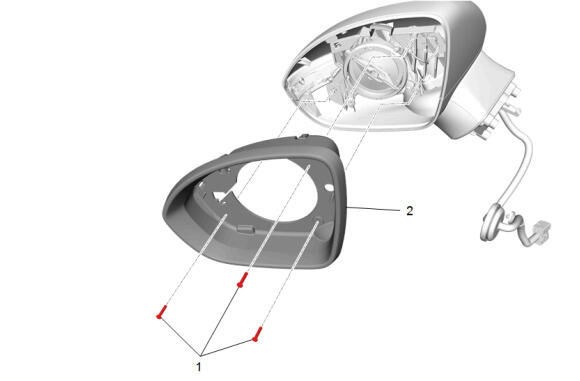

Outside Rearview Mirror Housing Bezel (2) - Install - Outside Rearview Mirror Housing Bezel Replacement

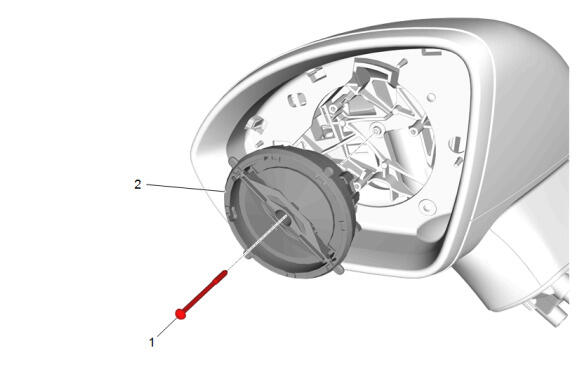

Outside Rearview Mirror Inner Actuator (2) - Install - Outside Rearview Mirror Actuator Replacement

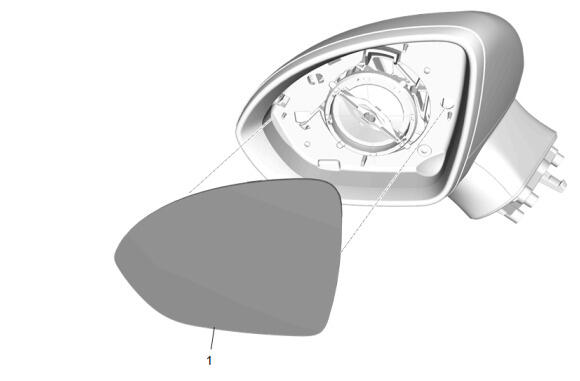

Outside Rearview Mirror Glass (1) - Install - Outside Rearview Mirror Glass Replacement
