Rear Camber Adjustment

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Measure the wheel alignment. Wheel Alignment Measurement

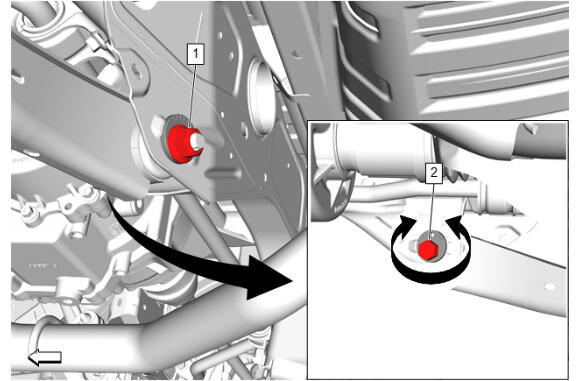

  3. GM5614168Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Lower Control Arm Inner Nut (1) - Loosen

  4. Rotate the rear suspension lower control arm adjust bolt (2) as necessary to achieve the correct rear camber setting. Wheel Alignment Specifications
  5. Tighten the rear suspension lower control arm inner nut (1) only enough to prevent the loss of the rear camber setting.
  6. Verify the rear camber measurement, readjust if necessary.
    7. CAUTION:

    Fastener Caution

  7. Rear Suspension Lower Control Arm Inner Nut (1) - Tighten - Lower Control Arm Replacement
  8. Remove the support and lower the vehicle.
