Installation Procedure

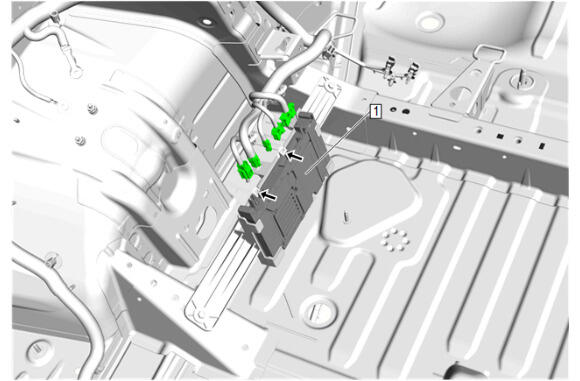

  1. GM6396448Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module (1) @ Communication Interface Module Bracket - Install

  2. Connect the electrical connector.
  3. Rear Compartment Floor Stowage Compartment Divider - Install - Rear Compartment Floor Stowage Compartment Divider Replacement
  4. Perform the necessary programming and setup procedure:Control Module References
