Video Processing Module Replacement

Courtesy of GENERAL MOTORS COMPANY

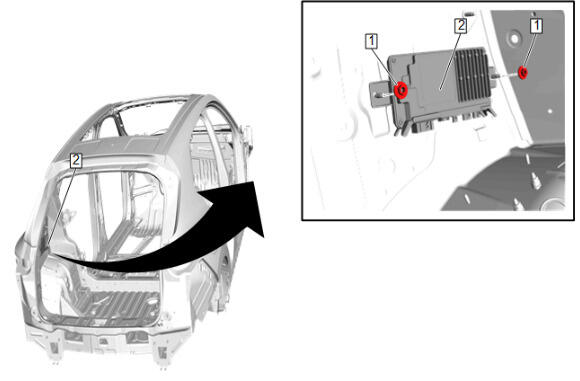

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement
1	Video Processing Module Nut[2x] CAUTION: refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect the electrical connector. Transfer components as necessary. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Video Processing Module Nut[2x]

CAUTION:

Tighten
9 N.m (80 lb in)

Video Processing Module

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
Perform the necessary programming and setup procedure: Control Module References
