Garage Door Opener Transmitter Replacement
NOTE:

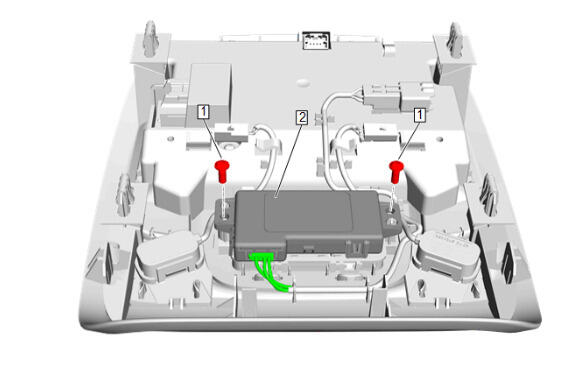

Callout items in the following chart represent components shown in graphic above.
Garage Door Opener Transmitter Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Roof Console Replacement |
|
| 1 | Roof Console Bolt [2x]
CAUTION:
refer to Fastener Caution Tighten 1.5 N.m (13 lb in) |
| 2 | Garage Door Opener Transmitter Procedure Disconnect the electrical connector. |
