Installation Procedure

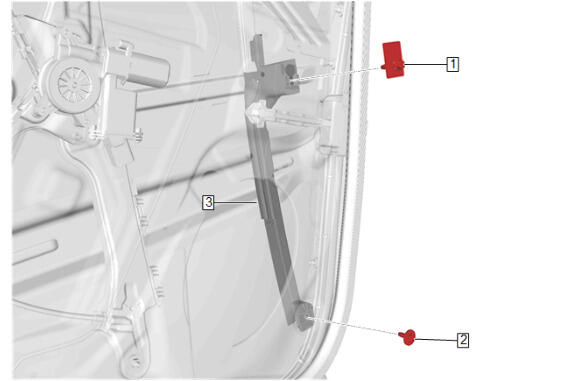

Front Side Door Window Channel Front Retainer (3) - Install
- If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
- Front Side Door Window Channel Retainer Front Bolt (2) - Install and tighten 11 N.m (97 lb in)
- If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Remove loose debris from internal and external threads using compressed air.
- Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation.
- Front Side Door Window Channel Retainer Front Bolt (1) - Install and tighten 11 N.m (97 lb in)
- Inspect the door window for proper operation before installing the door trim panel.
- Radio Front Side Door Speaker - Install - Radio Front Side Door Speaker Replacement
