Installation Procedure

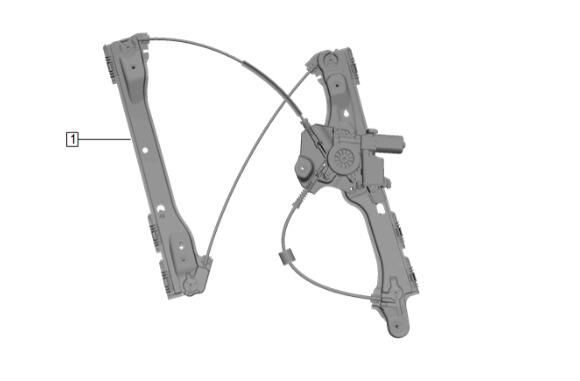

  1. GM6377893Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Regulator (1) - Install

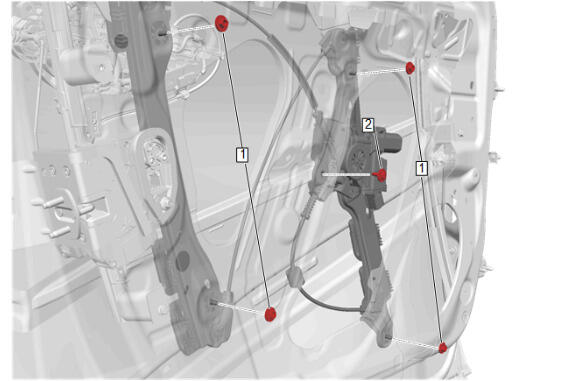

  2. GM6377892Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Side Door Window Regulator Nut (1) - Install and tighten [4x] 11 N.m (97 lb in)

  3. Front Side Door Window Regulator Bolt (1) - Install and tighten 11 N.m (97 lb in)
  4. Connect the electrical connector.

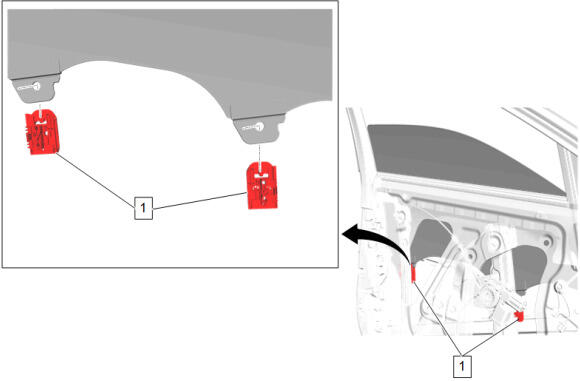

  5. GM5981531Courtesy of GENERAL MOTORS COMPANY

    Place the window regulator sash retainers (1) in the full up position.

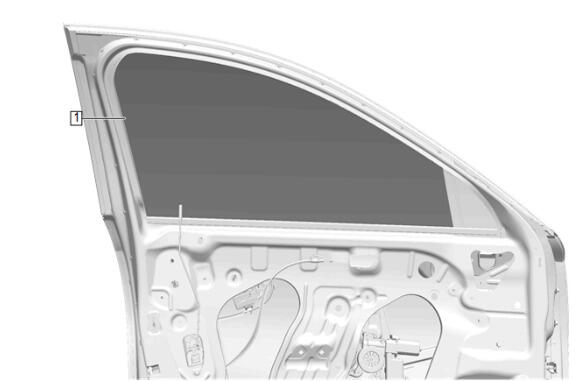

  6. GM6377891Courtesy of GENERAL MOTORS COMPANY

    Remove the tape holding the front side door window (1) in the full up position.

  7. Front Side Door Water Deflector - Install - Front Side Door Water Deflector Replacement
  8. Enable the SIR System. SIR Disabling and Enabling .
  9. Ensure the window system operates properly.
