Installation Procedure

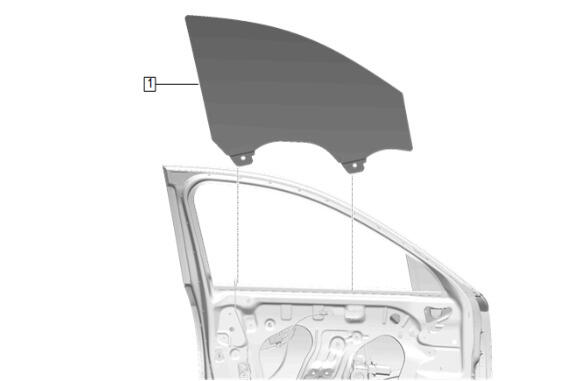

  1. GM6377894Courtesy of GENERAL MOTORS COMPANY

    Place the front side door window (1) into the door frame.

  2. Place the window in the full down position.
  3. Front Side Door Window Channel Retainer - Install - Front Side Door Window Channel Retainer Replacement
  4. Front Side Door Window Channel Front Retainer - Install - Front Side Door Window Channel Front Retainer Replacement
  5. Front Side Door Window Belt Reveal Molding - Install - Front Side Door Window Belt Reveal Molding Replacement
  6. Front Side Door Window Inner Sealing Strip - Install - Front Side Door Window Inner Sealing Strip Replacement
  7. Ensure the window system operates properly.
