Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

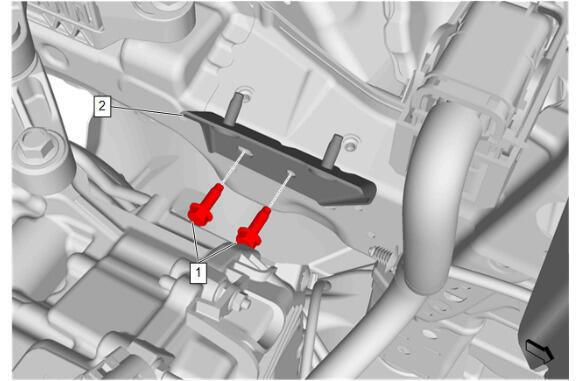

Battery Tray Support (2) - Install

CAUTION:

Refer to Fastener Caution

Battery Tray Support Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

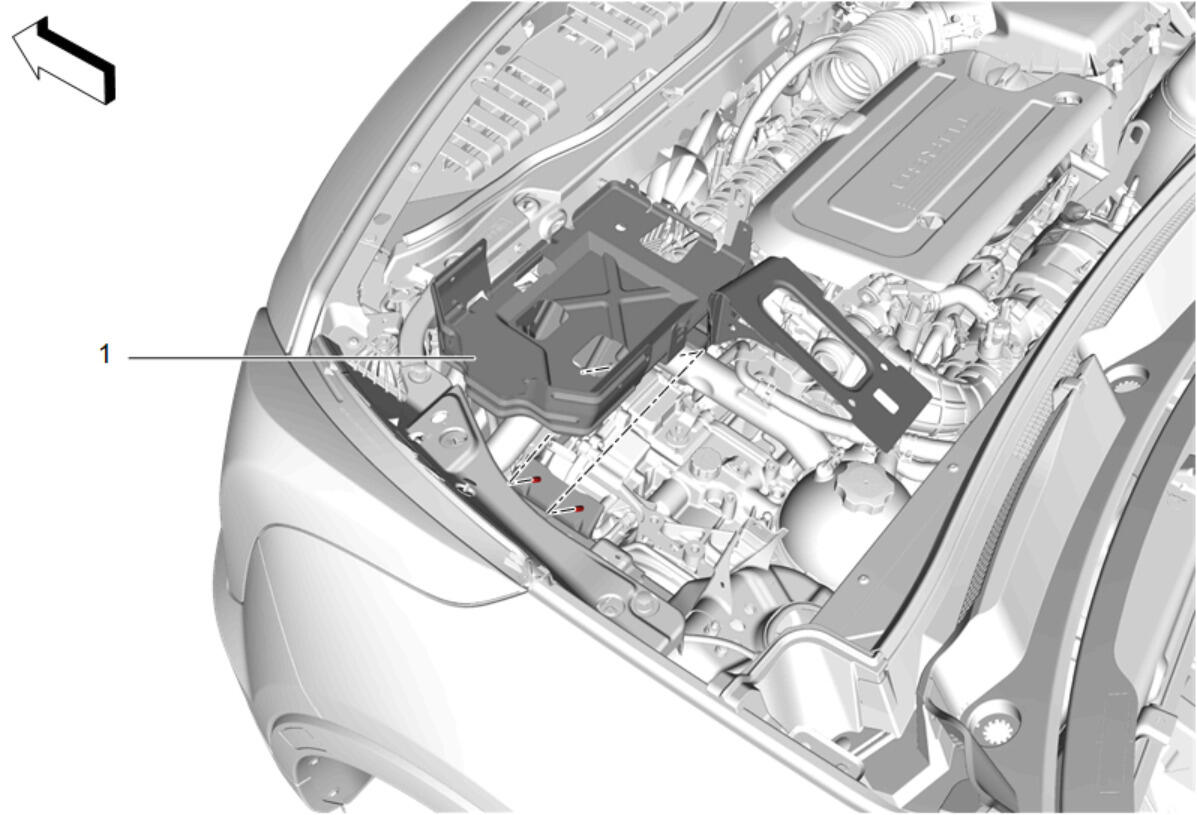

Battery Tray (1) - Install - Battery Tray Replacement
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
