Instrument Panel Components
NOTE:

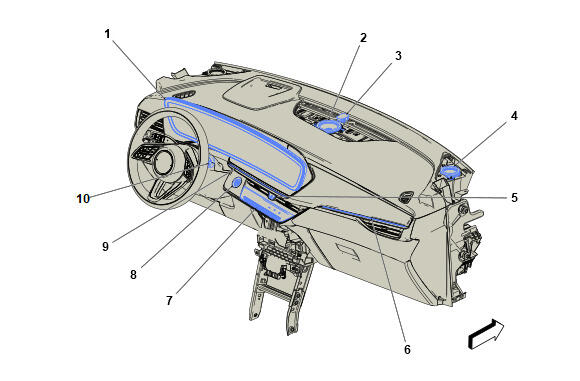

Callout items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. P53 Driver Information Display (UV6/- UV6) P53 Driver Information Display X1 , or P53 Driver Information Display X2 (- UV6) , or P53 Driver Information Display X2 (UV6) |
| 2. P19B Radio Front Center Speaker (UQF/UQS) P19B Radio Front Center Speaker (UQS) |
| 3. B10D Sun Load and Ambient Light and Security Indicator Sensor B10D Sun Load and Ambient Light and Security Indicator Sensor |
| 4. P19W Radio Front Speaker - Instrument Panel Right (UQF/UQS) P19W Radio Front Speaker - Instrument Panel Right (UQS) |
| 5. S26 Hazard Warning Switch S26 Hazard Warning Switch |
| 6. E1H Instrument Panel Light Conductor Lamp - Right E1H Instrument Panel Light Conductor Lamp - Right |
| 7. A26 Heater and Air Conditioning User Interface Control - Front A26 Heater and Air Conditioning User Interface Control - Front |
| 8. S38 On/Off Vehicle Switch S38 On/Off Vehicle Switch |
| 9. E1Z Instrument Panel Light Conductor Inner Lamp E1Z Instrument Panel Light Conductor Inner Lamp |
| 10.. S3B Automatic Transmission Electronic Control S3B Automatic Transmission Electronic Control |
